In the case of a fault condition, identified in the state column with an asterisk (*), troubleshoot the fault. If a fault
exists on a single data path, only the related LED panel reports the fault, just as it would with a cable module,
cable link, or drive faults. See the baseboard management controller (BMC) system event log (SEL) for
detailed information.
LED Type Color
Power and
sideplane Green
OK
Drawer
module Amber
fault
Logical
Amber
status
Drawer
Amber
cable fault
Drawer
data Green
activity bar

Interpret controller module LEDs

There are two redundant controller modules (CMs) that use a series of LEDs to reflect host connectivity status.
You can monitor the LEDs from the rear panel area to determine system status in combination with the user
interface content. You cannot mix controller types when daisy-chaining controllers.
In the case of a fault condition, identified in the state column with an asterisk (*), troubleshoot the fault and take
appropriate corrective action.
52 Chapter 7 Operation of 5U enclosures
State Status
Drawer power on and sideplane hardware functioning properly
On
Power to drawer off
Off
On* Drawer module fault condition for drawer sideplane or drive
Unit identification (UID) or locate active for drawer sideplane or
Flashing (1s on, 1s off)
drive
Off Drawer modules functioning properly
On* Drive hardware fault condition
Flashing* (3s on, 1s One or more arrays impacted by drive hardware fault conditions
off)
Off Drive module hardware functioning properly
On* Cable between rear panel area and drawer fault condition
Off Cables functioning properly
Segments reflect amount of data activity: greater numbers of
Flashing (1s on, 1s off)
segments reflect greater data activity
Off No data activity

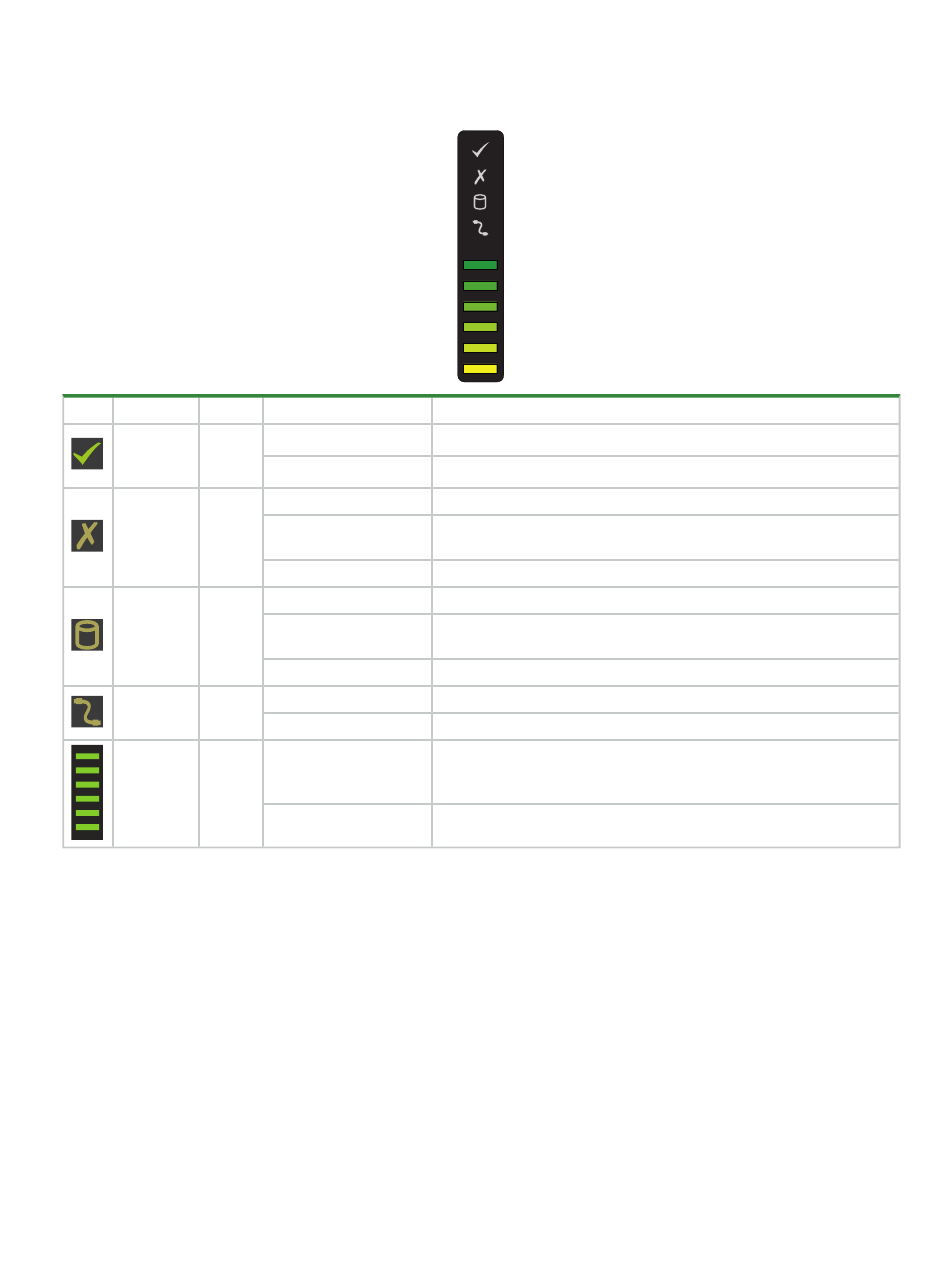

Figure 43 5U84 drawer LED panel
