c. Pull the handle outward to lever the CM away from the midplane.
d. Use one hand to support the weight of the CM and the other to gently withdraw the CM from its slot.
e. Place it in a static-protected location.
2. Complete the following actions to replace it with a tested good CM:
a. Examine the tested good CM to make sure it is undamaged with pins that are straight, not bent.
b. Facing the rear of the storage enclosure, orient the CM with the open latch identically to the one you
removed.
c. Use one hand to support the weight of the CM and the other to guide it into the empty CM slot.

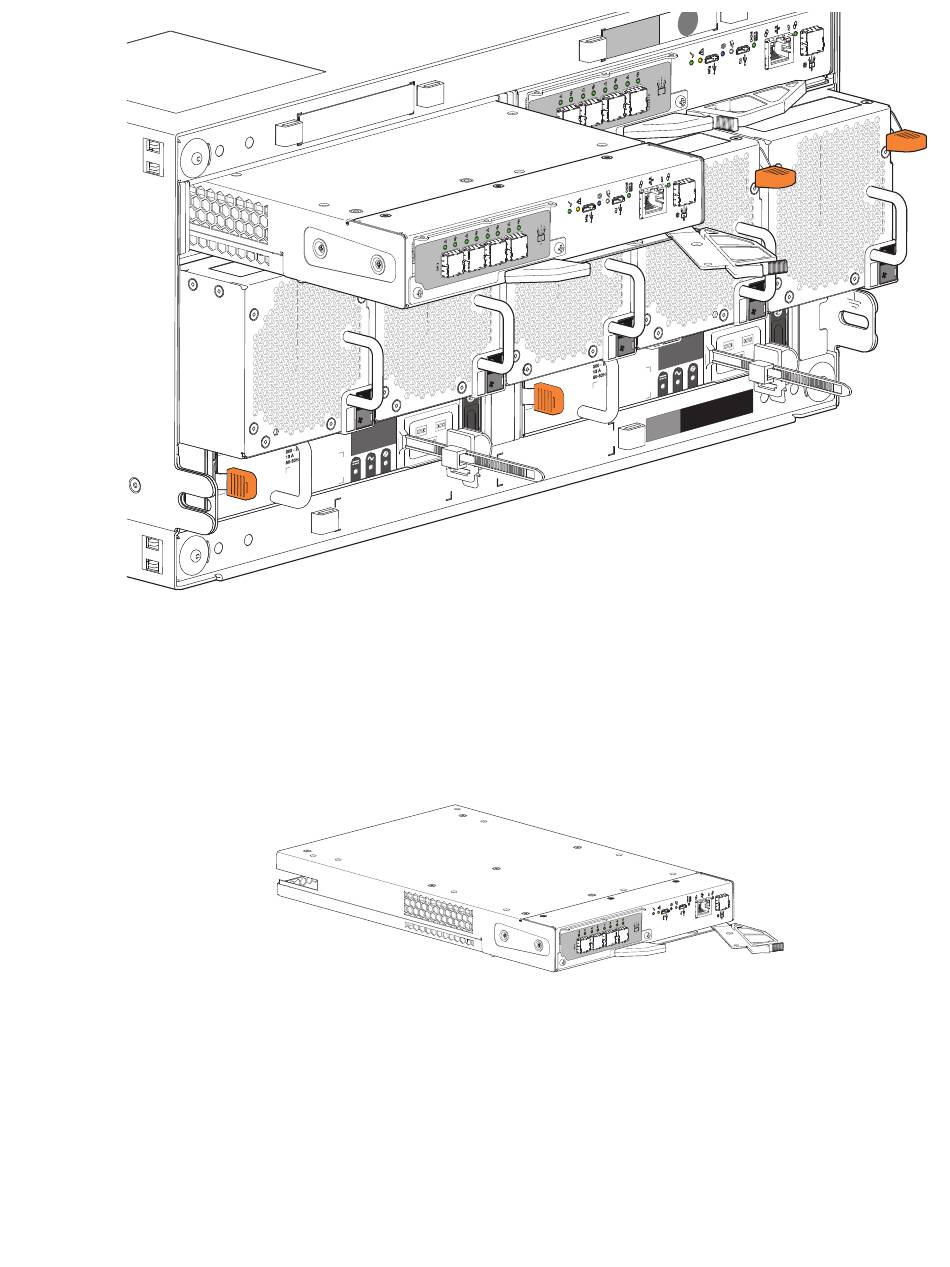

Figure 84 Controller module removal, left (SAS 4-port version)
Figure 85 Replacement controller module (SAS 4-port version)
