1 2
11
Item Description
1 Drawer front with keyed anti-tamper lock
and 2 drawer latches
2 Right sideplane
3 Drawer latch for top drawer: Drawer 1
4 Operator's (ops) panel on left rack ear
flange
5 Bottom drawer: Drawer 2
6 Drawer slide
7 Midplane
8 Controller module (CM)
9 Fan cooling module (FCM)
10 Power supply unit (PSU)
11 Drive module in its carrier (DDIC)
12 Locking mechanism
13 Right rack ear cover
14 Cable management system

Controller module components

Both controller modules (CMs) manage the flow of data to and from the storage enclosure. Each CM provides
a very specialized, solutions-specific interaction that depends on your system configuration and software
implementation, including RAID functions, management functions, failover and failback procedures, and
multipath procedures.
8 Chapter 2 System overview
3 4
13
12
Function
Prevents or provides access to DDICs, contains dual drawer panel
LEDs for drive activity and fault status
Registers DDIC activity and fault conditions for the primary host path
Locks drawer open to access slots logically numbered from 0 to 41
Connects to midplane, provides users with storage enclosure
information and status
Contains slots logically numbered from 42 to 83
Supports full extension to service position and access to DDICs
Connects modules to system controls ( Authorized service personnel
only )
Provides data redundancy and acts as the nerve center of the storage
enclosure
Provides redundant regulation of temperature and airflow
Provides redundant regulation of power
Provides redundant data storage
Secures full connection of DDIC
Cosmetic
Protects cabling associated with the related drawer

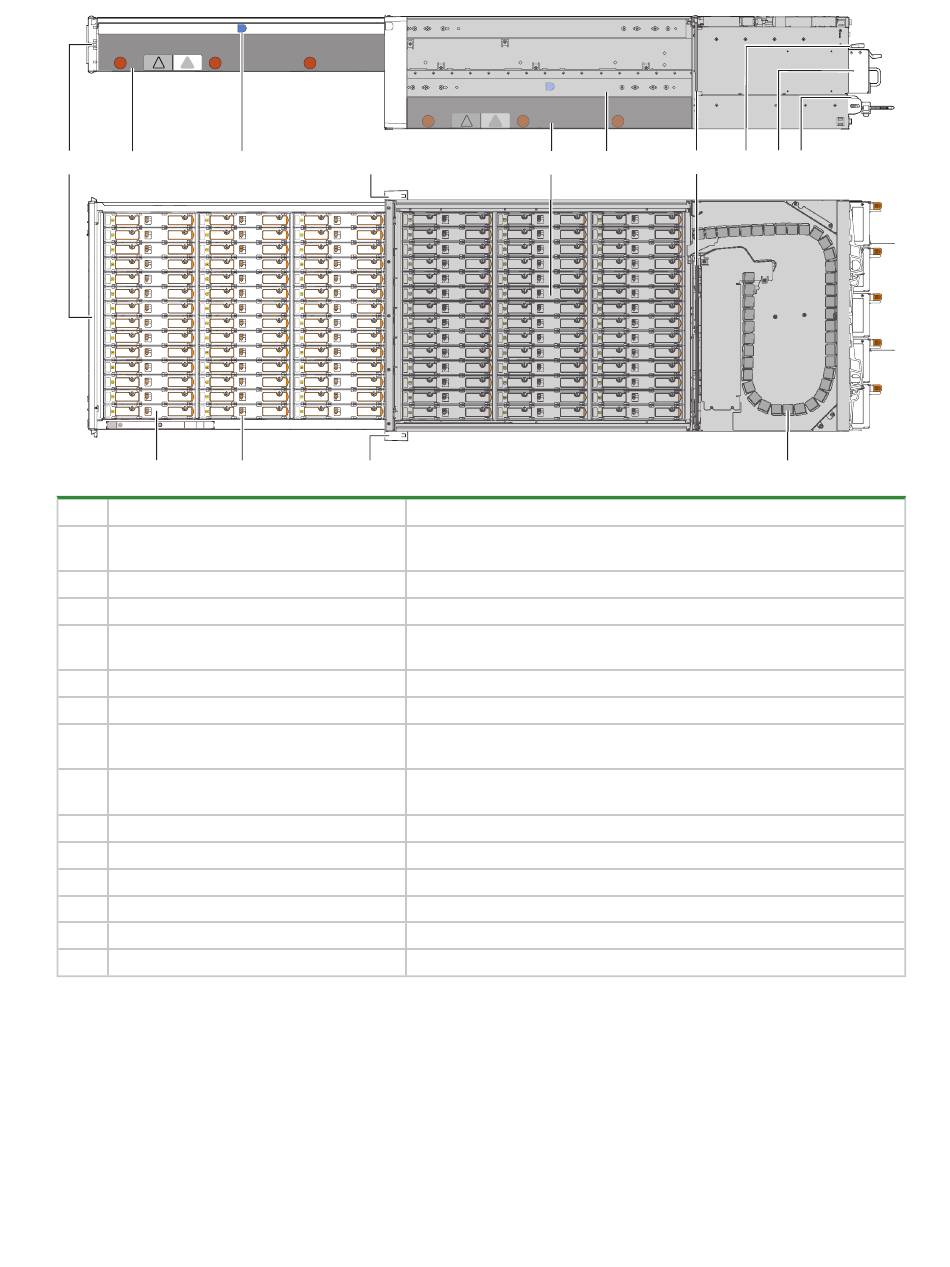

Figure 5 Profile and top views of fully populated 5U84 drawers

7
5 6 8 9 10
14
