Figure 8 2U Enclosure Outer Rail Components - Quantum QXS Series Hardware Installation And Maintenance Manual

3. Verify the rack cabinet design supports the total weight of storage enclosures and has stabilizing features
to prevent the rack cabinet from tipping or being pushed over during installation or normal use.
4. Do not lift the storage enclosure without a mechanical lift. No single person should lift an enclosure without
help.
5. Mount storage enclosures into the rack cabinet from the bottom to the top during installation.
6. Locate lighter storage enclosures above heavier ones to maximize stability.
7. Remove storage enclosures from the top of the rack cabinet to the bottom when emptying it.
Required equipment
Outer rails, properly oriented
#2 Phillips-head screwdriver, 6-in length
(Optional) 8mm nut driver, 6-in length
Phillips-head screw, M5 x 15, 8mm hex flange
To install the 2U rackmount rail kit:
1. Remove both outer rail assemblies from their packaging.
1
Qty
2
1
1
8
2
Item Description
1 Left front mount bracket
2 Left front outer rail
3 Left rail slides

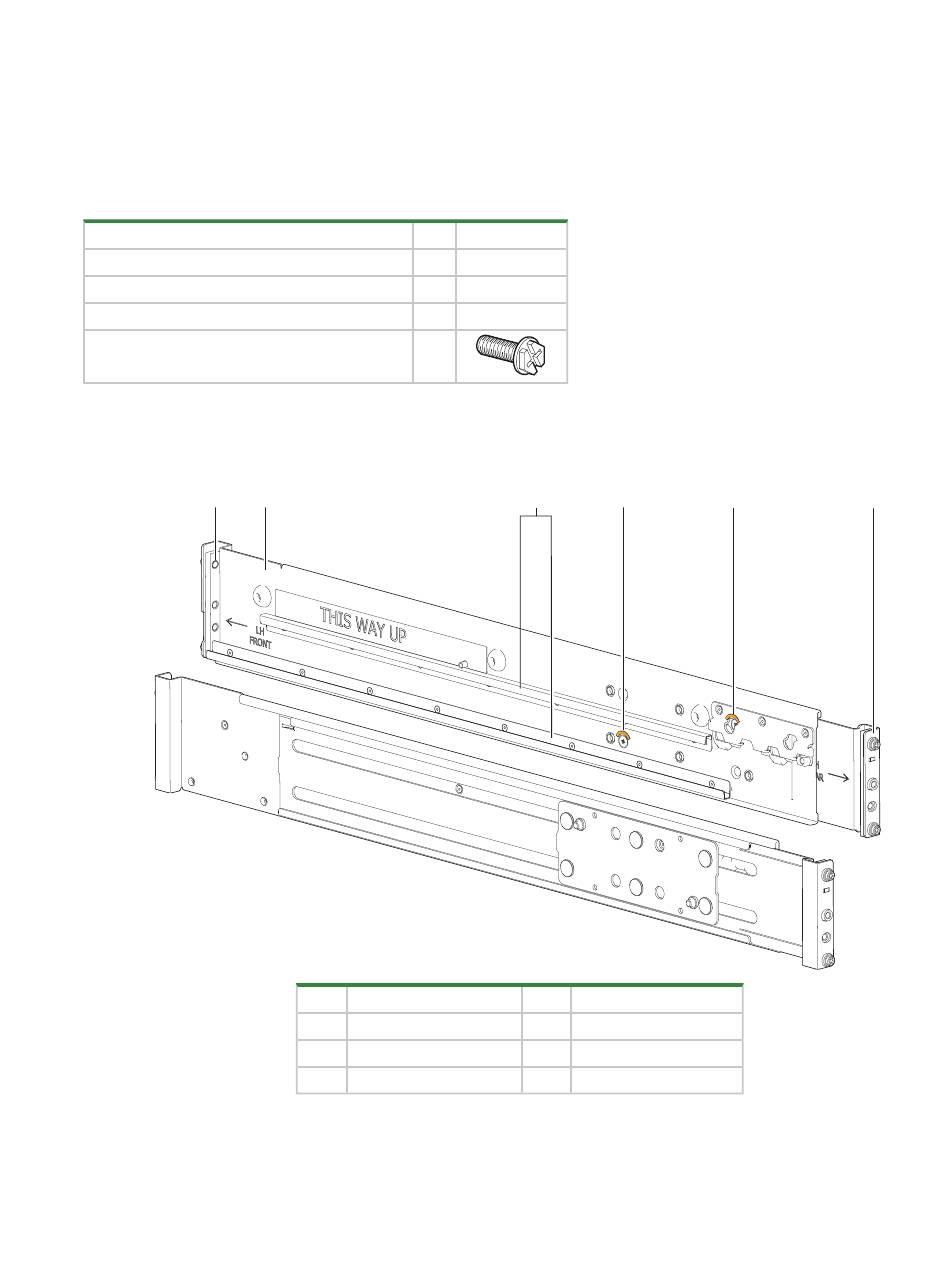

Figure 8 2U enclosure outer rail components

Identification
N/A
N/A
N/A
3 4
Item Description
4 Set screw, front
5 Set screw, rear
6 Left rear mount bracket
Chapter 4 Installation of 2U enclosures
6
5
15
