The rear panel area hosts modules designed for power, thermal cooling, and host connectivity.
1
Item Description
1 Power cooling module (PCM) Provides redundant regulation of power, temperature, and airflow
2 PCM release latch
3 Controller module (CM)
4 Inverted CM
5 Inverted PCM status LEDs
6 Inverted PCM power switch

5U enclosure components

The 5U84 chassis retains two sliding drawers, so has drawer panels that augment the operator's (ops) panel
on the left rack ear flange. Each drawer has its own set of dedicated connectors behind the midplane that allow
continuous operation, even if the drawer is extended to the fully open service position or closed with the
drawer latch engaged.
The front panel area is the primary physical user interface. Closely watch the ops and drawer panels for status.
2
Function
Latches or unlatches PCM from midplane
Provides data redundancy, acts as the nerve center of the storage enclosure
Provides users with PCM status
Switches power on or off

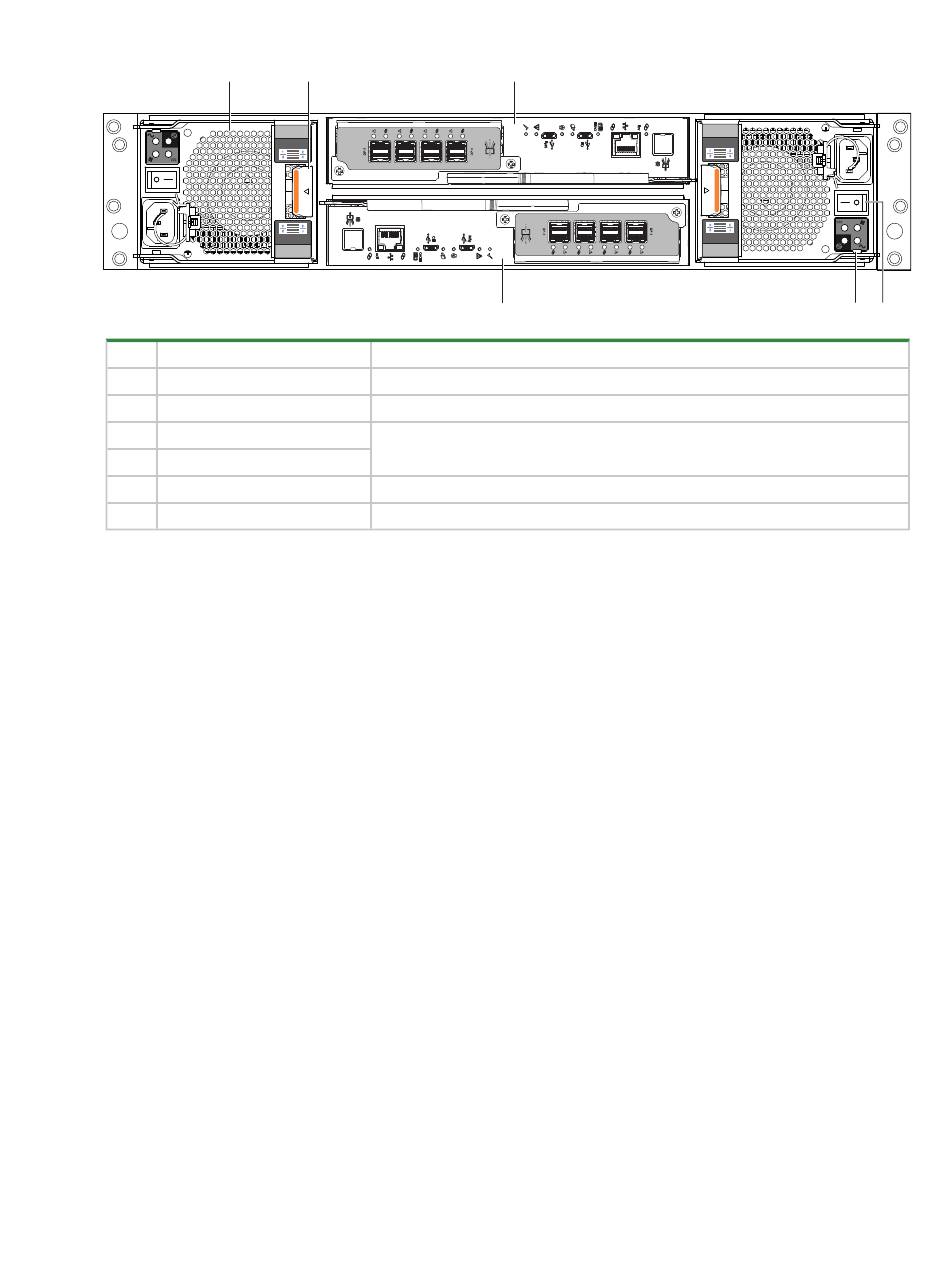

Figure 2 2U12 and 2U24 rear panel area

3
4 5 6
Chapter 2 System overview 5
