f. Start the terminal emulator program again and connect to the COM port, then validate the port settings
again.

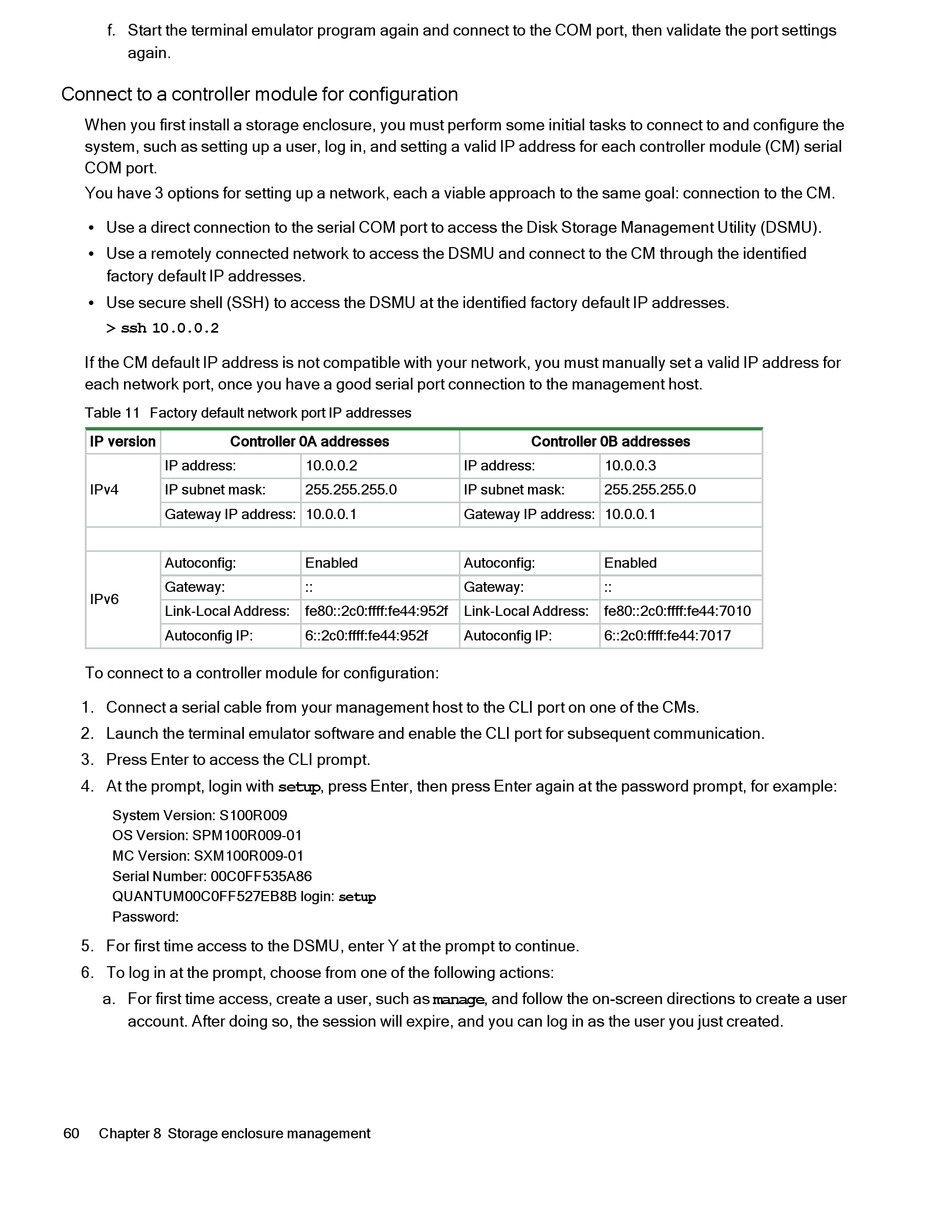

Connect to a controller module for configuration

When you first install a storage enclosure, you must perform some initial tasks to connect to and configure the
system, such as setting up a user, log in, and setting a valid IP address for each controller module (CM) serial
COM port.
You have 3 options for setting up a network, each a viable approach to the same goal: connection to the CM.
Use a direct connection to the serial COM port to access the Disk Storage Management Utility (DSMU).
l
Use a remotely connected network to access the DSMU and connect to the CM through the identified
l
factory default IP addresses.
Use secure shell (SSH) to access the DSMU at the identified factory default IP addresses.
l
> ssh 10.0.0.2
If the CM default IP address is not compatible with your network, you must manually set a valid IP address for
each network port, once you have a good serial port connection to the management host.

Table 11 Factory default network port IP addresses

IP version
IP address:
IPv4 IP subnet mask:
Gateway IP address: 10.0.0.1
Autoconfig:
Gateway:
IPv6
Link-Local Address:
Autoconfig IP:
To connect to a controller module for configuration:
1. Connect a serial cable from your management host to the CLI port on one of the CMs.
2. Launch the terminal emulator software and enable the CLI port for subsequent communication.
3. Press Enter to access the CLI prompt.
4. At the prompt, login with setup, press Enter, then press Enter again at the password prompt, for example:
System Version: S100R009
OS Version: SPM100R009-01
MC Version: SXM100R009-01
Serial Number: 00C0FF535A86
QUANTUM00C0FF527EB8B login: setup
Password:
5. For first time access to the DSMU, enter Y at the prompt to continue.
6. To log in at the prompt, choose from one of the following actions:
a. For first time access, create a user, such as manage, and follow the on-screen directions to create a user
account. After doing so, the session will expire, and you can log in as the user you just created.
60 Chapter 8 Storage enclosure management
Controller 0A addresses
10.0.0.2
255.255.255.0
Enabled
::
fe80::2c0:ffff:fe44:952f
6::2c0:ffff:fe44:952f
Controller 0B addresses
IP address: 10.0.0.3
IP subnet mask: 255.255.255.0
Gateway IP address: 10.0.0.1
Autoconfig: Enabled
Gateway: ::
Link-Local Address: fe80::2c0:ffff:fe44:7010
Autoconfig IP: 6::2c0:ffff:fe44:7017
