SMC Networks ITV23 Series Operation Manual page 23

Electro-pneumatic regulator manifold

Table of Contents

Maintenance

■ Before performing maintenance, turn off the power supply, stop the air supply, exhaust the

residual compressed air in the piping, and verify the release of air to atmosphere.

■ Foreign matter caught in the inlet of piping or exhaust may interfere with normal operation.

Periodically conduct cleaning.

■ Do not use solvents such as benzene and thinner to clean the product enclosure including

the switch protective cover. Wipe off dirt from the enclosure with a soft dry cloth.

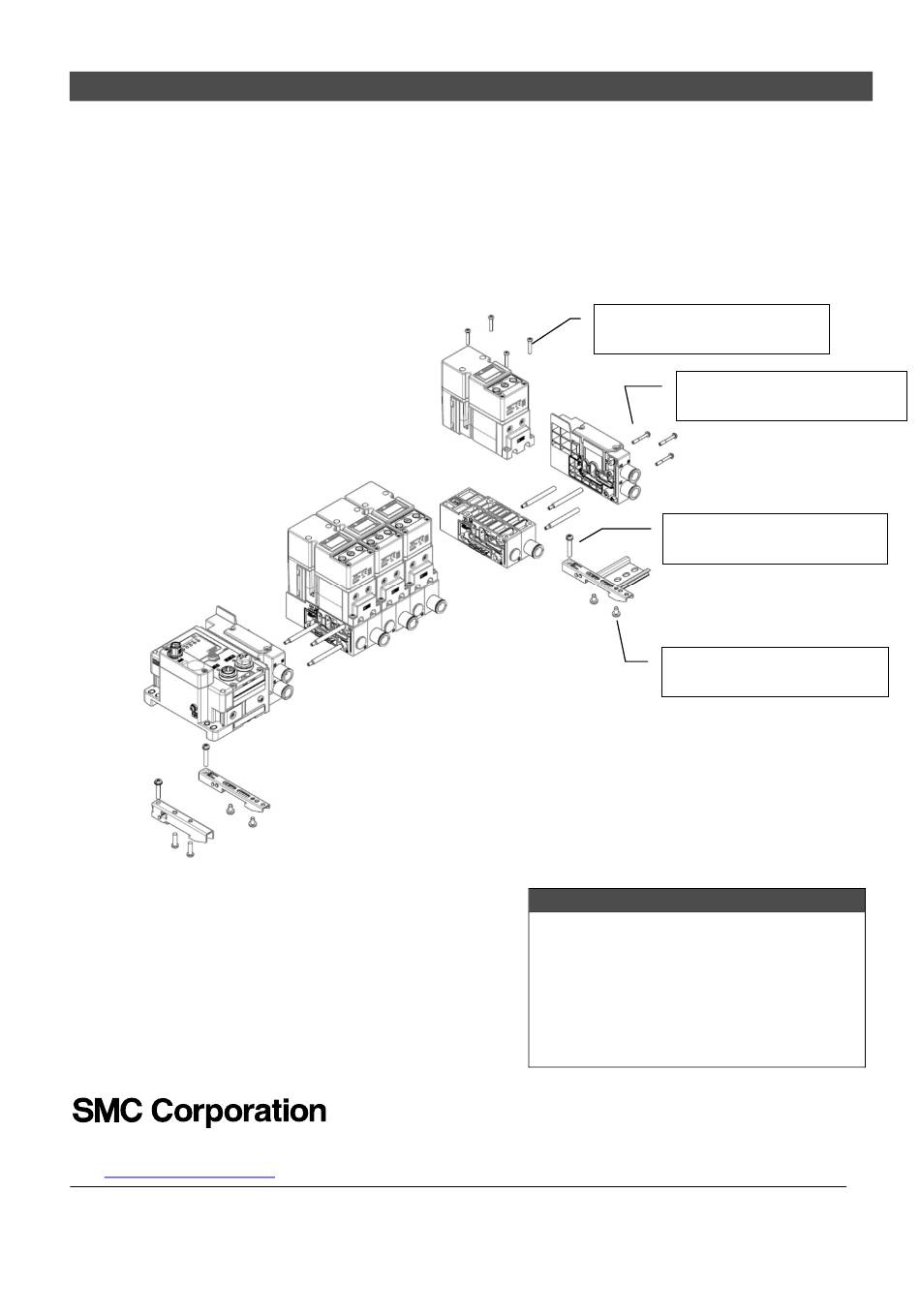

Refer to the figure for

the tightening torque of screws.

4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN

Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362

URL

https://www.smcworld.com

Note:

Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.

E-P Regulator

Tightening torque：0.63N・m

- 22 -

Tension bolt

Tightening torque：0.8N・m

DIN rail fixing screw.

Tightening torque：1.4 N・m

Fixing screw

Tightening torque：1.4 N・m
