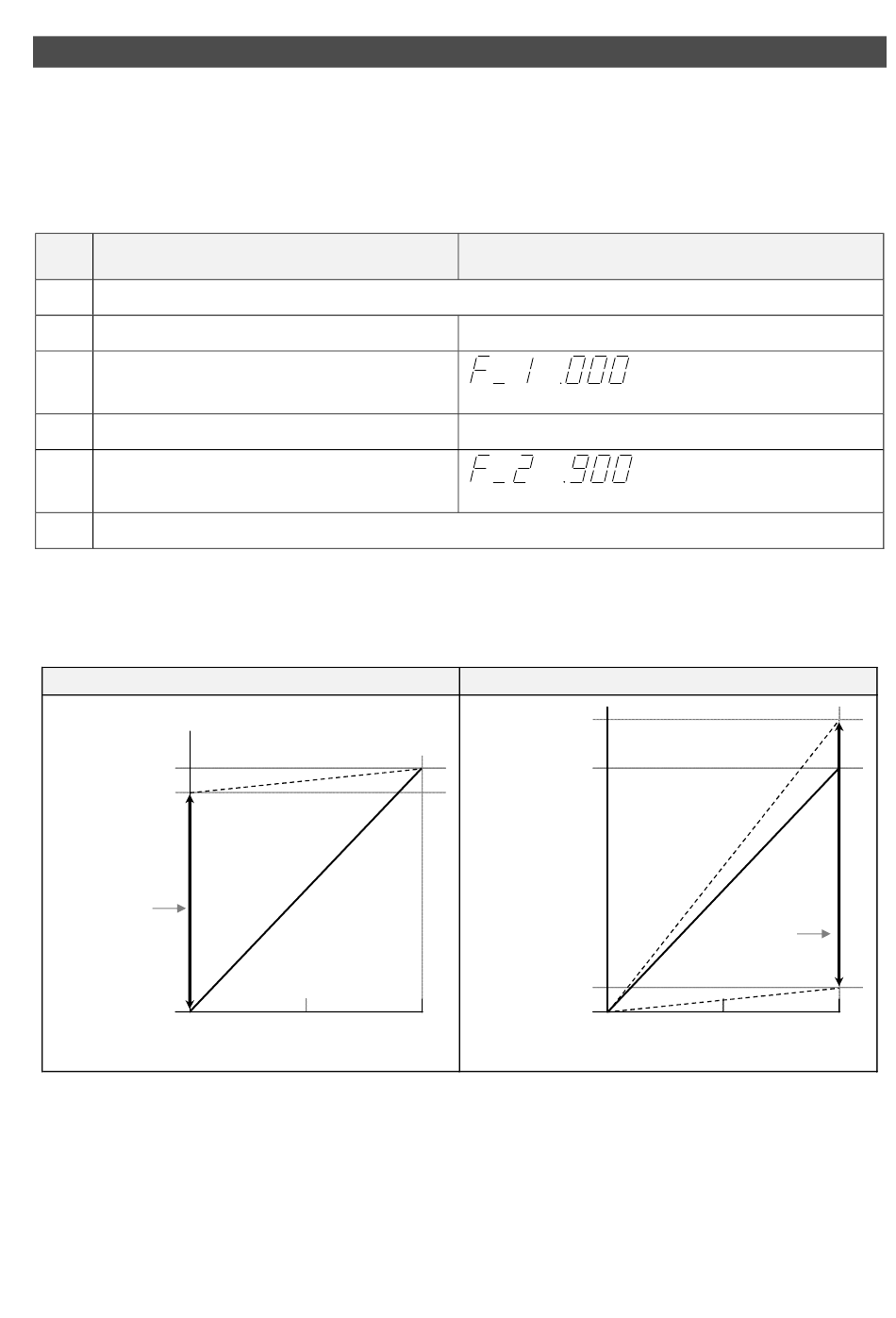

Setting of Min. pressure, Max. pressure
These interlock with the communication parameters.
It is possible to change the minimum pressure (hereinafter referred to as "F_1") and the
maximum pressure (hereinafter referred to as "F_2").
In normal use, use the product in the condition when shipped, it is not always necessary to
adjust the setting of minimum pressure, and the setting of maximum pressure.
Key operation
No
(1) Deactivate the key lock if necessary (refer to P14).
Press SET-key
(2)
Set the minimum pressure by using
(3)
the △ and ▽ keys.
(4) Press SET-key
Set the maximum pressure by using
(5)
the △ and ▽ keys.
(6) Activate the key lock if necessary (refer to P14).
You can change the relationship between the signal and the output pressure (slope and
intercept) as follows.
Minimum pressure (F_1) setting range
100%
90%
setting range
0%
0%
* Image when the maximum pressure (F_2) is 100%.
(Note 1) F_1 is adjustable in a range from 0% to 90% of the rated value. (Default value：0%)
(Note 2) The pressure of less than 0% is not output, even if F_1 is adjusted to less than 0%.
(Note 3) F_2 is adjustable in a range from 10 to 120% of the rated value. (Default value：0%)
(Note 4) Do not input the signal as like output the pressure of more than 100%.
Please use in a range of rating.
(Note 5) The difference between F_1 and F_2 is adjustable in a range of 10% of the rated value.
(Note 6) The adjustment like making the relation of F_1>F_2 is not available.
50%
100%
- 15 -
LED Display
⇔
*Adjusting range: Refer to note 1 to 6
⇔
*Adjusting range: Refer to note 1 to 6
Maximum pressure (F_2) setting range
120%
100%
(Initial value)
10%
0%
0%
* Image when the minimum pressure (F_1) is 0%.
(displayed alternately)
(displayed alternately)
setting range
50%
100%
