Parameter name
Function
Value

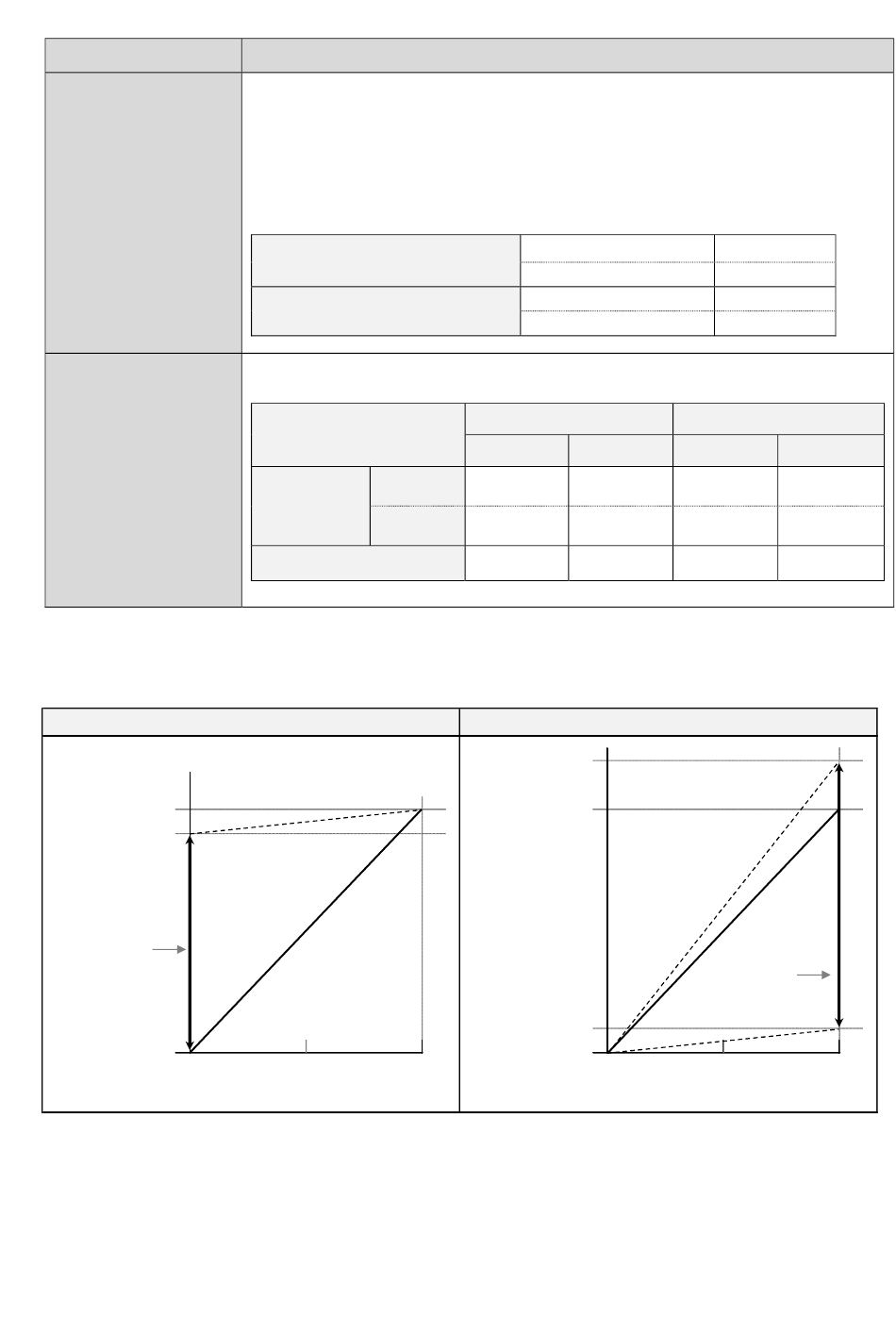

You can change the relationship between the signal and the output pressure (slope and
intercept) as follows.
Minimum pressure (F_1) setting range
100% (0×0FFF)
90% (0×0E66)
setting range
0% (0×0000)
0%
* Image when the maximum pressure (F_2) is 100%.
(Note 1) F_1 is adjustable in a range from 0% to 90% of the rated value. (Default value：0%)
(Note 2) The pressure of less than 0% is not output, even if F_1 is adjusted to less than 0%.
(Note 3) F_2 is adjustable in a range from 10 to 120% of the rated value. (Default value：0%)
(Note 4) Do not input the signal as like output the pressure of more than 100%.
Please use in a range of rating.
(Note 5) The difference between F_1 and F_2 is adjustable in a range of 10% of the rated value.
(Note 6) The adjustment like making the relation of F_1>F_2 is not available.
Setting of Min. pressure, Max. pressure
It is possible to change the minimum pressure (hereinafter referred to
as "F_1") and the maximum pressure (hereinafter referred to as "F_2").
In normal use, use the product in the condition when shipped, it is not
always necessary to adjust the setting of minimum pressure, and the
setting of maximum pressure.
Initial value：F_1 (0%)
Initial value：F_2 (100%)
Relationship between F_1/F_2 and setting pressure (Hexadecimal)
Hex.
Input value
Dec.
Setting pressure
50%
100%
Hexadecimal
Decimal number
Hexadecimal
Decimal number
Min. pressure F_1
Min. Max.
0x0000 0x0E66
0 3686
0%F.S. 90%F.S.
Maximum pressure (F_2) setting range
120% (0×1332)
100% (0×0FFF)
(Initial value)
10% (0×019A)
0% (0×0000)
0%
* Image when the minimum pressure (F_1) is 0%.
- 11 -
0ｘ0000
0
0x0FFF
4095
Max. pressure F_2
Min. Max.
0x019A 0x1332
410 4914
10%F.S. 120%F.S.
setting range
50%
100%
