SQA-V
and

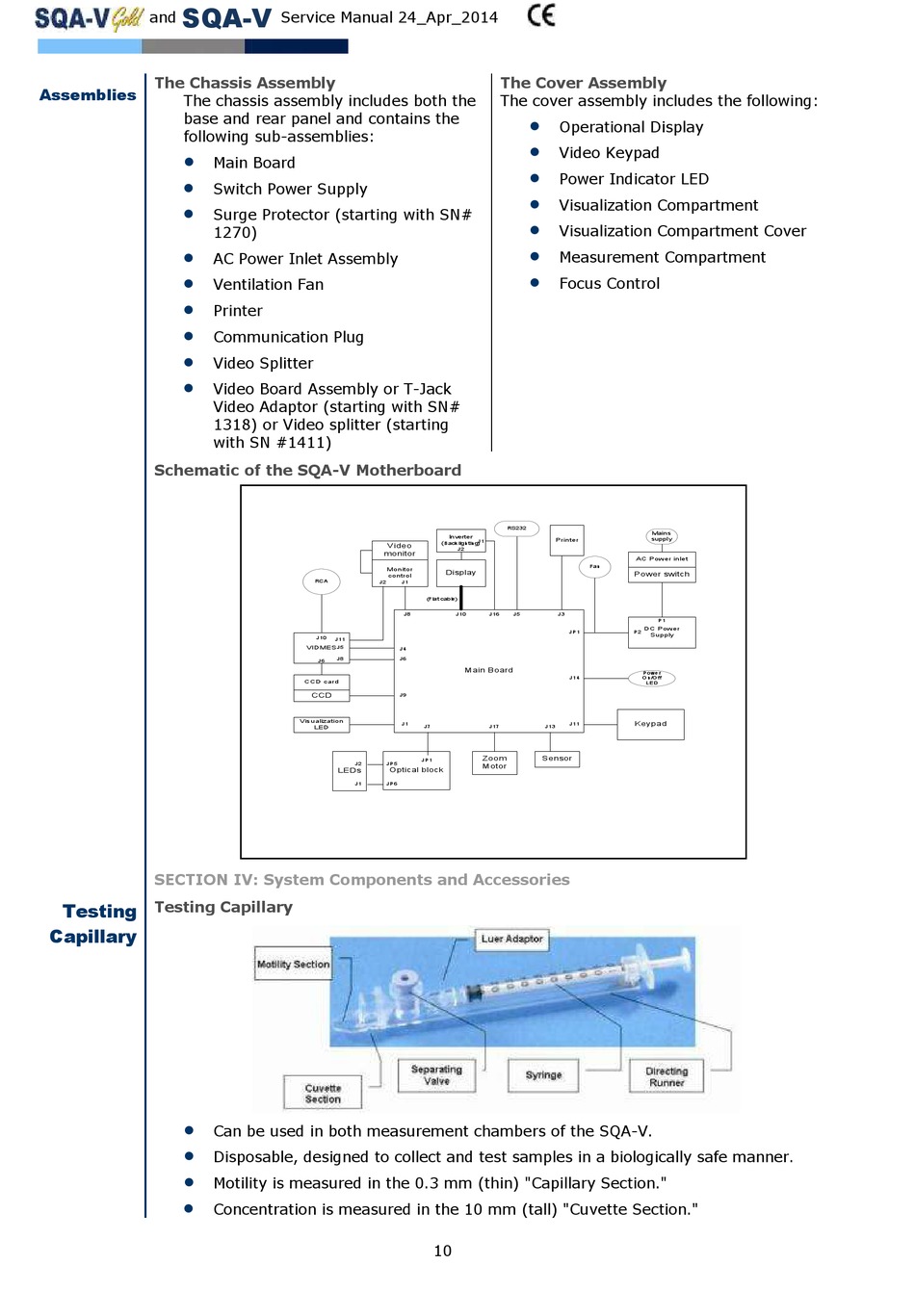

The Chassis Assembly

Assemblies
The chassis assembly includes both the
base and rear panel and contains the
following sub-assemblies:










Schematic of the SQA-V Motherboard

SECTION IV: System Components and Accessories

Testing Capillary
Testing
Capillary




Service Manual 24_Apr_2014
Main Board
Switch Power Supply
Surge Protector (starting with SN#
1270)
AC Power Inlet Assembly
Ventilation Fan
Printer
Communication Plug
Video Splitter
Video Board Assembly or T-Jack
Video Adaptor (starting with SN#
1318) or Video splitter (starting
with SN #1411)
RCA
J10
J11
VIDMES J5
J8
J6
CCD card
CCD
Visualization
LED
J2
LEDs
J1
Can be used in both measurement chambers of the SQA-V.
Disposable, designed to collect and test samples in a biologically safe manner.
Motility is measured in the 0.3 mm (thin) "Capillary Section."
Concentration is measured in the 10 mm (tall) "Cuvette Section."

The Cover Assembly

The cover assembly includes the following:







RS232
Inverter
J1
( Backlighting)
Video
J2
monitor
Monitor
Display
control
J2 J1
(Flat cable)
J8 J10 J16 J5
J4
J6
Main Board
J9
J1
J7 J17
Zoom
JP1
JP5
Motor
Optical block
JP6
10
Operational Display
Video Keypad
Power Indicator LED
Visualization Compartment
Visualization Compartment Cover
Measurement Compartment
Focus Control
Mains
supply
Printer
AC Power inlet
Fan
Power switch
J3
P1
DC Power
JP1 P2
Supply
Power
J14 On/Off
LED
Keypad
J11
J13
Sensor
