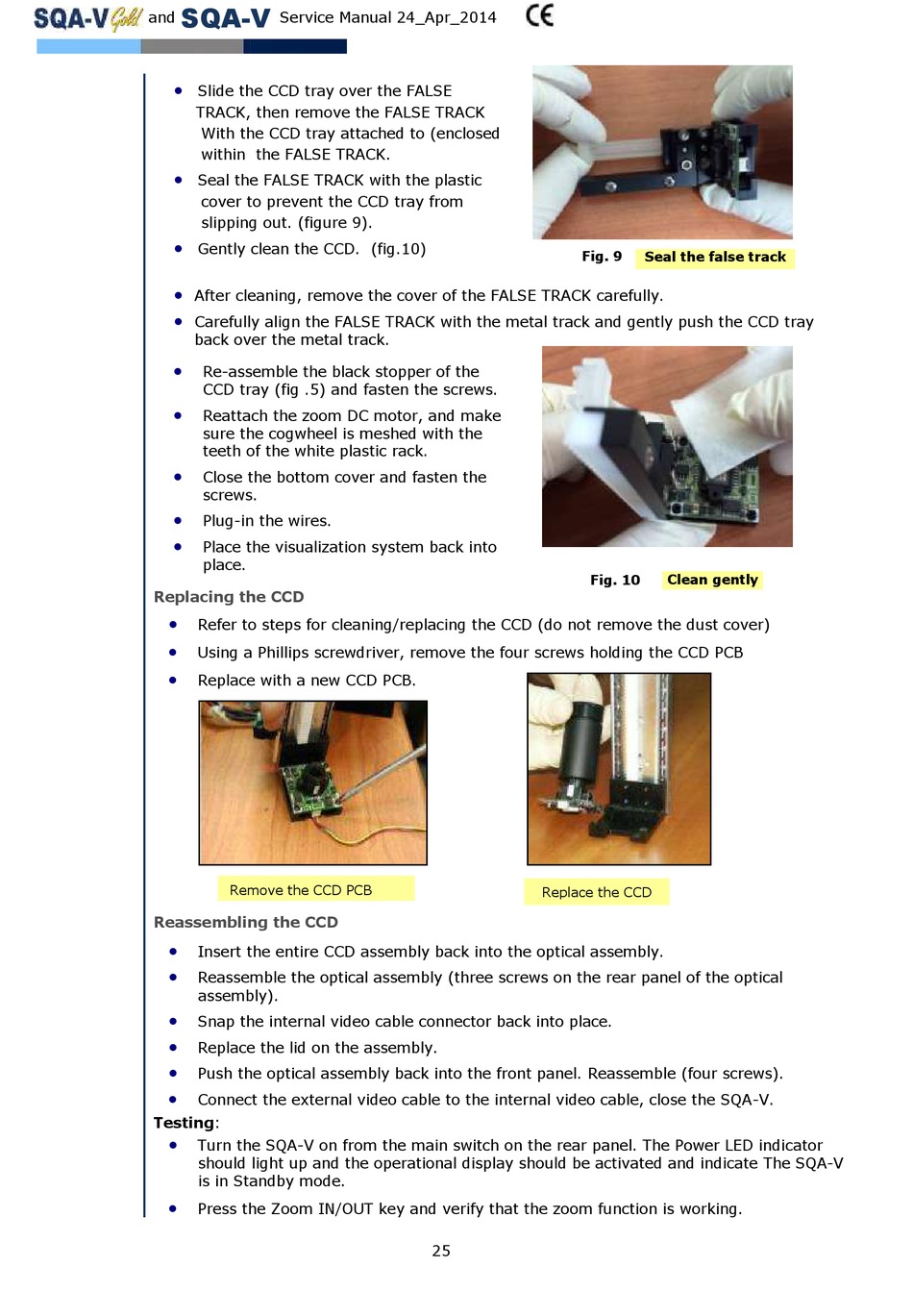

MES SQA-V Gold Service Manual page 25

SQA-V
and Service Manual 24_Apr_2014

Slide the CCD tray over the FALSE
TRACK, then remove the FALSE TRACK
With the CCD tray attached to (enclosed
within the FALSE TRACK.

Seal the FALSE TRACK with the plastic
cover to prevent the CCD tray from
slipping out. (figure 9).

Gently clean the CCD. (fig.10)

After cleaning, remove the cover of the FALSE TRACK carefully.

Carefully align the FALSE TRACK with the metal track and gently push the CCD tray
back over the metal track.

Re-assemble the black stopper of the
CCD tray (fig .5) and fasten the screws.

Reattach the zoom DC motor, and make
sure the cogwheel is meshed with the
teeth of the white plastic rack.

Close the bottom cover and fasten the
screws.

Plug-in the wires.

Place the visualization system back into
place.
Replacing the CCD

Refer to steps for cleaning/replacing the CCD (do not remove the dust cover)

Using a Phillips screwdriver, remove the four screws holding the CCD PCB

Replace with a new CCD PCB.
Remove the CCD PCB
Reassembling the CCD

Insert the entire CCD assembly back into the optical assembly.

Reassemble the optical assembly (three screws on the rear panel of the optical
assembly).

Snap the internal video cable connector back into place.

Replace the lid on the assembly.

Push the optical assembly back into the front panel. Reassemble (four screws).

Connect the external video cable to the internal video cable, close the SQA-V.
Testing:

Turn the SQA-V on from the main switch on the rear panel. The Power LED indicator
should light up and the operational display should be activated and indicate The SQA-V
is in Standby mode.

Press the Zoom IN/OUT key and verify that the zoom function is working.
Fig. 9
Fig. 10
Replace the CCD
25
Seal the false track
Clean gently
