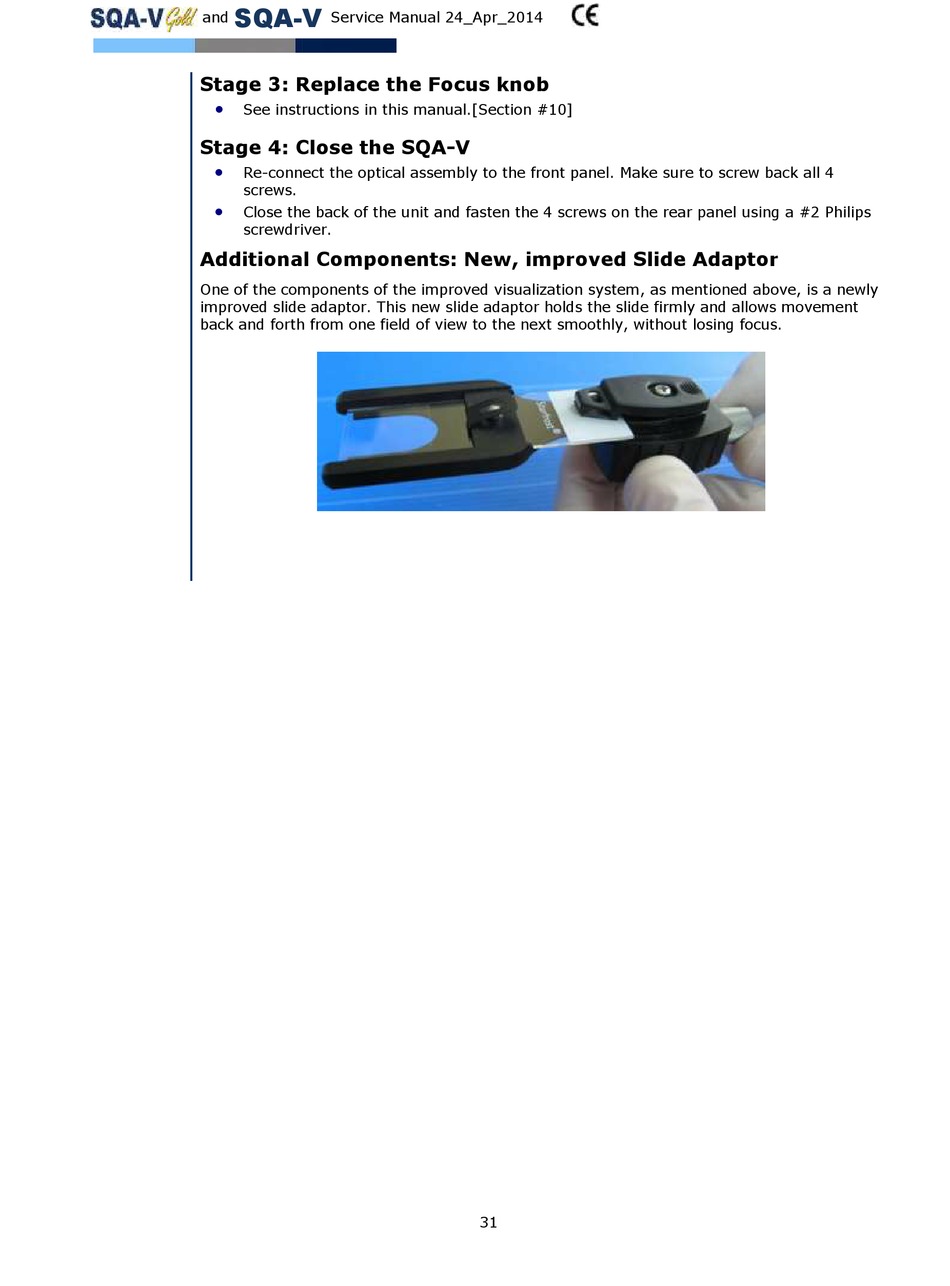

MES SQA-V Gold Service Manual page 31

SQA-V
and Service Manual 24_Apr_2014
Stage 3: Replace the Focus knob

See instructions in this manual.[Section #10]
Stage 4: Close the SQA-V

Re-connect the optical assembly to the front panel. Make sure to screw back all 4
screws.

Close the back of the unit and fasten the 4 screws on the rear panel using a #2 Philips
screwdriver.
Additional Components: New, improved Slide Adaptor
One of the components of the improved visualization system, as mentioned above, is a newly
improved slide adaptor. This new slide adaptor holds the slide firmly and allows movement
back and forth from one field of view to the next smoothly, without losing focus.
31
