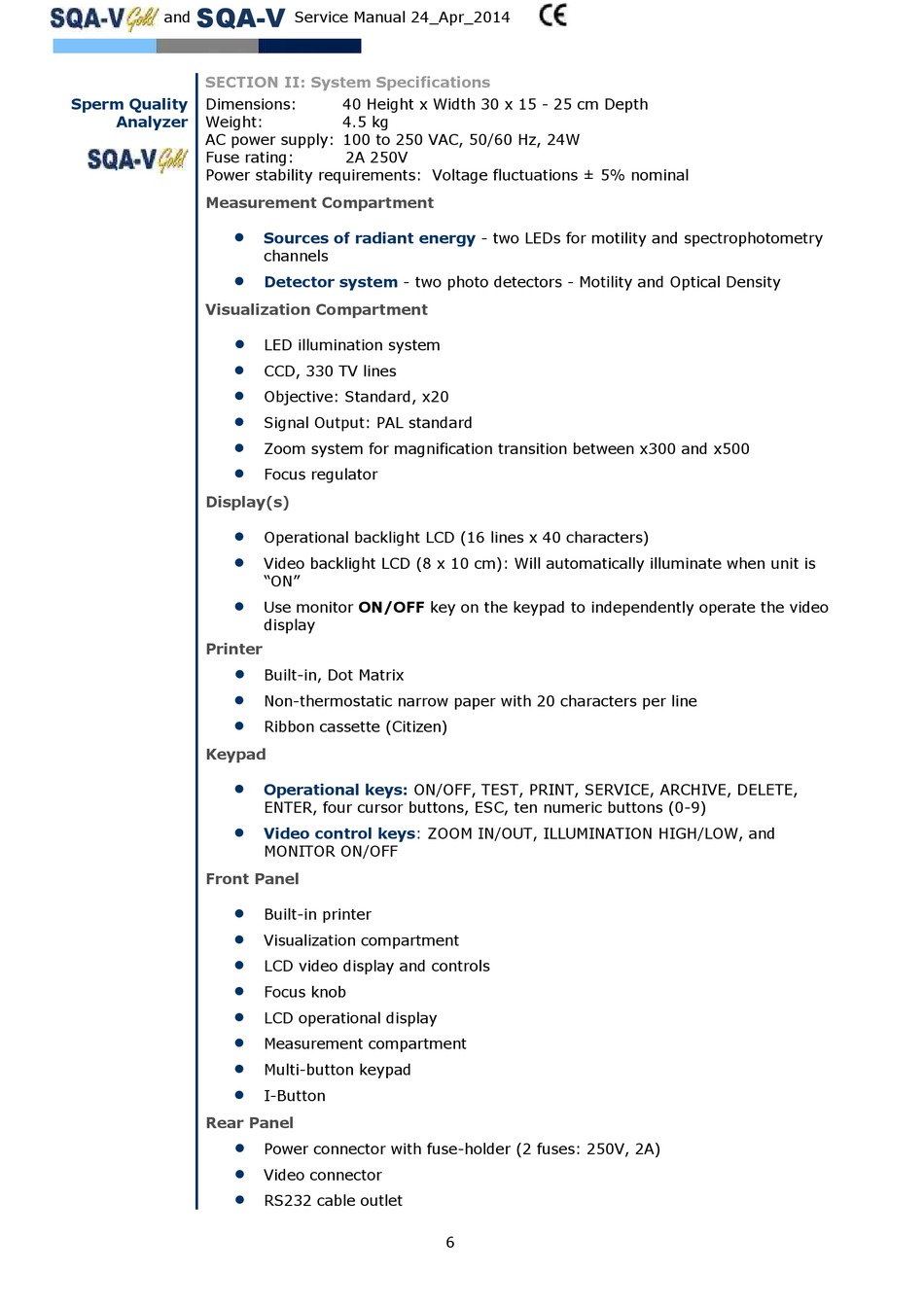

SECTION II: System Specifications

Sperm Quality Dimensions:
Analyzer Weight:
AC power supply: 100 to 250 VAC, 50/60 Hz, 24W
Fuse rating:
Power stability requirements: Voltage fluctuations ± 5% nominal
Measurement Compartment
Visualization Compartment
Display(s)
Printer
Keypad

Front Panel

Rear Panel
Service Manual 24_Apr_2014
40 Height x Width 30 x 15 - 25 cm Depth
4.5 kg
2A 250V

Sources of radiant energy
channels

Detector system

LED illumination system

CCD, 330 TV lines

Objective: Standard, x20

Signal Output: PAL standard

Zoom system for magnification transition between x300 and x500

Focus regulator

Operational backlight LCD (16 lines x 40 characters)

Video backlight LCD (8 x 10 cm): Will automatically illuminate when unit is
"ON"

Use monitor ON/OFF key on the keypad to independently operate the video
display

Built-in, Dot Matrix

Non-thermostatic narrow paper with 20 characters per line

Ribbon cassette (Citizen)

Operational keys:
ENTER, four cursor buttons, ESC, ten numeric buttons (0-9)

Video control keys:
MONITOR ON/OFF

Built-in printer

Visualization compartment

LCD video display and controls

Focus knob

LCD operational display

Measurement compartment

Multi-button keypad

I-Button

Power connector with fuse-holder (2 fuses: 250V, 2A)

Video connector

RS232 cable outlet
- two LEDs for motility and spectrophotometry
- two photo detectors - Motility and Optical Density
ON/OFF, TEST, PRINT, SERVICE, ARCHIVE, DELETE,
ZOOM IN/OUT, ILLUMINATION HIGH/LOW, and
