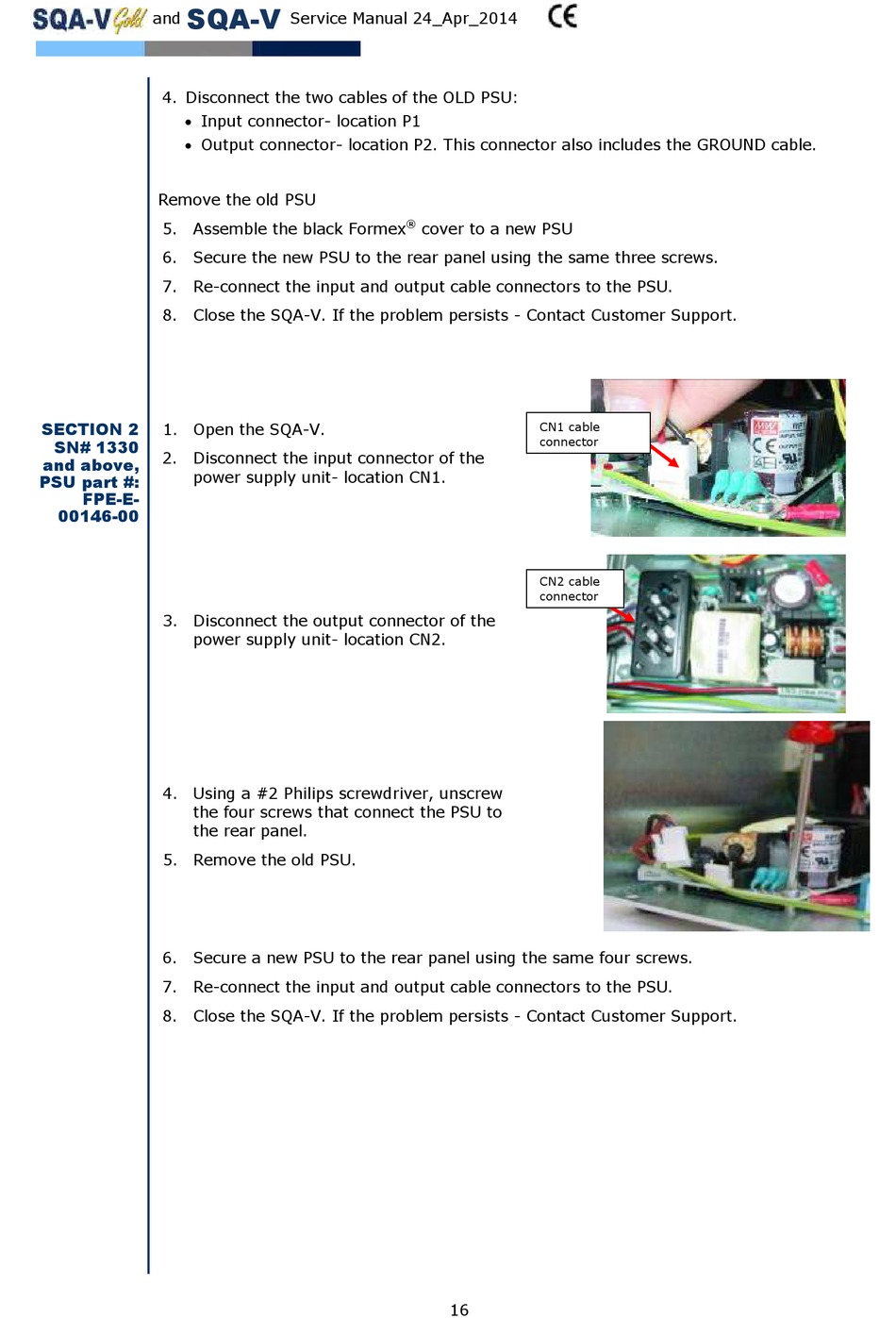

MES SQA-V Gold Service Manual page 16

SQA-V
and
4. Disconnect the two cables of the OLD PSU:
 Input connector- location P1
 Output connector- location P2. This connector also includes the GROUND cable.
Remove the old PSU
5. Assemble the black Formex
6. Secure the new PSU to the rear panel using the same three screws.
7. Re-connect the input and output cable connectors to the PSU.
8. Close the SQA-V. If the problem persists - Contact Customer Support.
SECTION 2
1. Open the SQA-V.
SN# 1330
2. Disconnect the input connector of the
and above,
power supply unit- location CN1.
PSU part #:
FPE-E-
00146-00
3. Disconnect the output connector of the
power supply unit- location CN2.
4. Using a #2 Philips screwdriver, unscrew
the four screws that connect the PSU to
the rear panel.
5. Remove the old PSU.
6. Secure a new PSU to the rear panel using the same four screws.
7. Re-connect the input and output cable connectors to the PSU.
8. Close the SQA-V. If the problem persists - Contact Customer Support.
Service Manual 24_Apr_2014
®
cover to a new PSU
16
CN1 cable
connector
CN2 cable
connector
