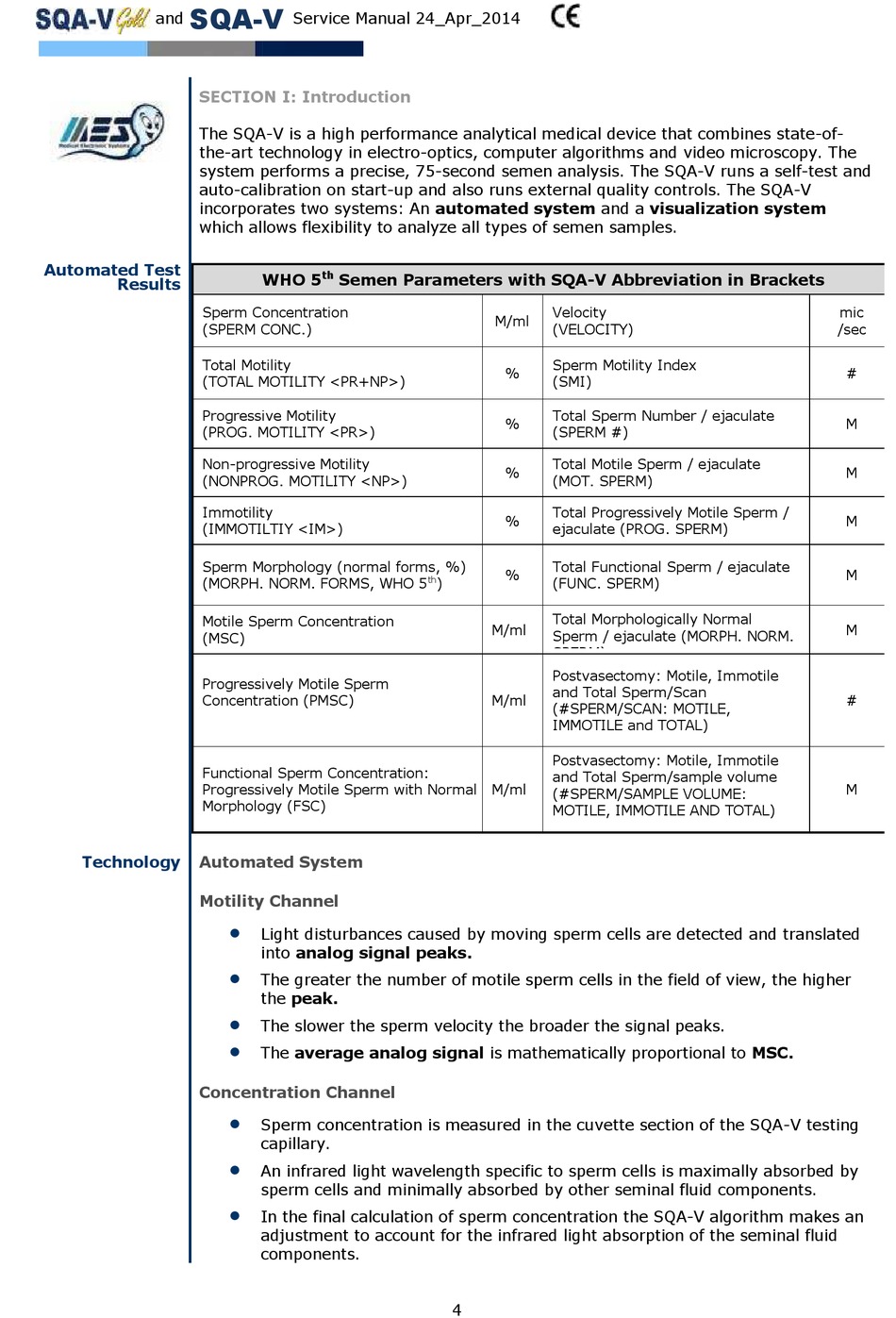

SECTION I: Introduction

The SQA-V is a high performance analytical medical device that combines state-of-
the-art technology in electro-optics, computer algorithms and video microscopy. The
system performs a precise, 75-second semen analysis. The SQA-V runs a self-test and
auto-calibration on start-up and also runs external quality controls. The SQA-V
incorporates two systems: An automated system and a visualization system
which allows flexibility to analyze all types of semen samples.
Automated Test
Results
Sperm Concentration
(SPERM CONC.)
Total Motility
(TOTAL MOTILITY <PR+NP>)
Progressive Motility
(PROG. MOTILITY <PR>)
Non-progressive Motility
(NONPROG. MOTILITY <NP>)
Immotility
(IMMOTILTIY <IM>)
Sperm Morphology (normal forms, %)
(MORPH. NORM. FORMS, WHO 5
Motile Sperm Concentration
(MSC)
Progressively Motile Sperm
Concentration (PMSC)
Functional Sperm Concentration:
Progressively Motile Sperm with Normal
Morphology (FSC)
Technology

Automated System

Motility Channel
Concentration Channel
Service Manual 24_Apr_2014
th
WHO 5 Semen Parameters with SQA-V Abbreviation in Brackets

Light disturbances caused by moving sperm cells are detected and translated
into analog signal peaks.

The greater the number of motile sperm cells in the field of view, the higher
the peak.

The slower the sperm velocity the broader the signal peaks.

The average analog signal is mathematically proportional to MSC.

Sperm concentration is measured in the cuvette section of the SQA-V testing
capillary.

An infrared light wavelength specific to sperm cells is maximally absorbed by
sperm cells and minimally absorbed by other seminal fluid components.

In the final calculation of sperm concentration the SQA-V algorithm makes an
adjustment to account for the infrared light absorption of the seminal fluid
components.
Velocity
M/ml
(VELOCITY)
Sperm Motility Index
%
(SMI)
Total Sperm Number / ejaculate
%
(SPERM #)
Total Motile Sperm / ejaculate
%
(MOT. SPERM)
Total Progressively Motile Sperm /
%
ejaculate (PROG. SPERM)
Total Functional Sperm / ejaculate
%
th
) (FUNC. SPERM)
Total Morphologically Normal
M/ml
Sperm / ejaculate (MORPH. NORM.
SPERM)
Postvasectomy: Motile, Immotile
and Total Sperm/Scan
M/ml
(#SPERM/SCAN: MOTILE,
IMMOTILE and TOTAL)
Postvasectomy: Motile, Immotile
and Total Sperm/sample volume
M/ml
(#SPERM/SAMPLE VOLUME:
MOTILE, IMMOTILE AND TOTAL)
4
mic
/sec
#
M
M
M
M
M
#
M
