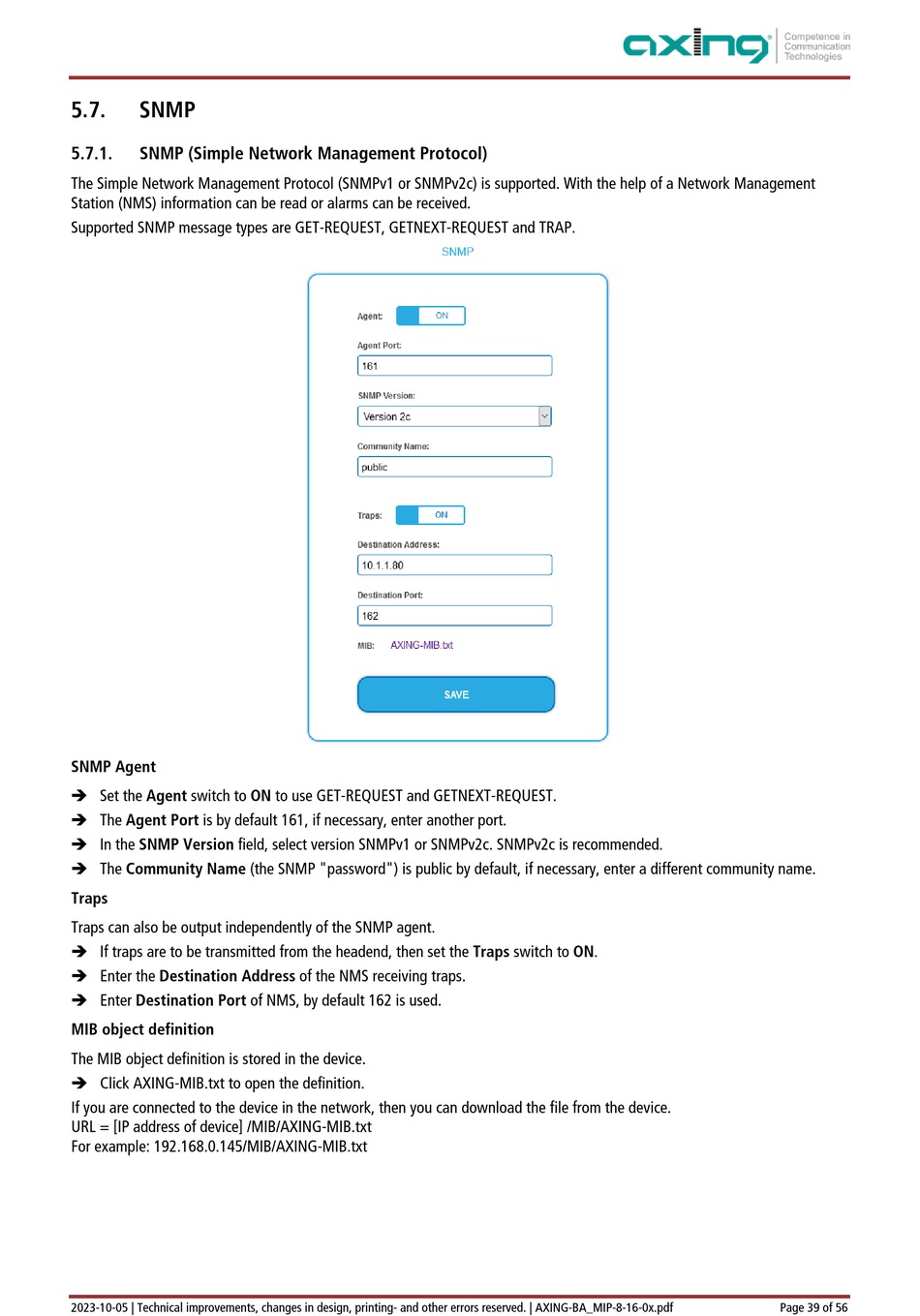

5.7.

SNMP

5.7.1.

SNMP (Simple Network Management Protocol)

The Simple Network Management Protocol (SNMPv1 or SNMPv2c) is supported. With the help of a Network Management
Station (NMS) information can be read or alarms can be received.
Supported SNMP message types are GET-REQUEST, GETNEXT-REQUEST and TRAP.
SNMP Agent
 Set the Agent switch to ON to use GET-REQUEST and GETNEXT-REQUEST.
 The Agent Port is by default 161, if necessary, enter another port.
 In the SNMP Version field, select version SNMPv1 or SNMPv2c. SNMPv2c is recommended.
 The Community Name (the SNMP "password") is public by default, if necessary, enter a different community name.
Traps
Traps can also be output independently of the SNMP agent.
 If traps are to be transmitted from the headend, then set the Traps switch to ON.
 Enter the Destination Address of the NMS receiving traps.
 Enter Destination Port of NMS, by default 162 is used.
MIB object definition
The MIB object definition is stored in the device.
 Click AXING-MIB.txt to open the definition.
If you are connected to the device in the network, then you can download the file from the device.
URL = [IP address of device] /MIB/AXING-MIB.txt
For example: 192.168.0.145/MIB/AXING-MIB.txt
