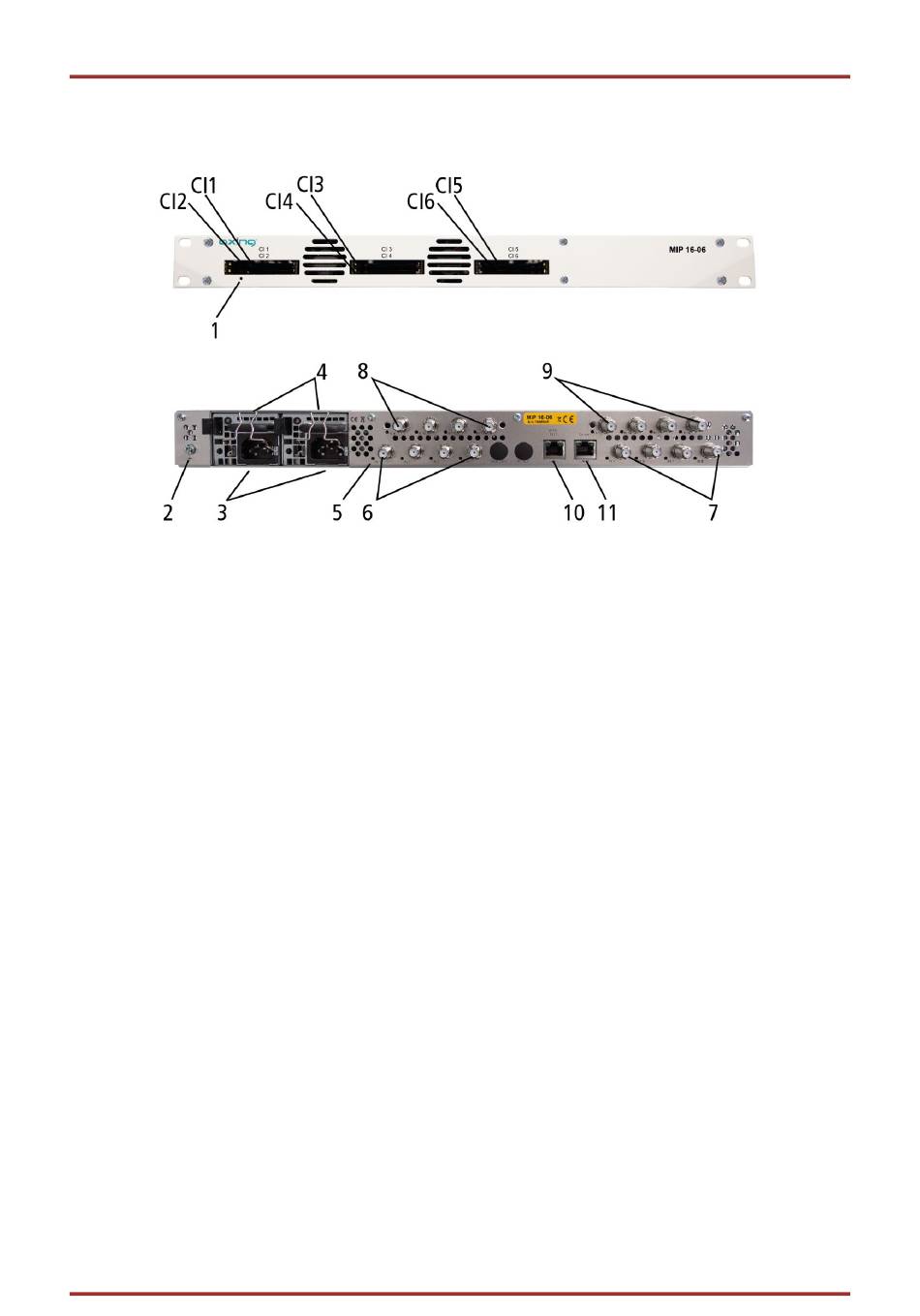

Display elements and connectors

1.9.1.

MIP 8-00 | MIP 8-06 | MIP 16-00 | MIP 16-06

1. LED IPTV stream:
Green (blinking) =
Green =
Red =
2. Equipotential bonding connection
3. Mains connection
4. Locking bow for inlet connector
5. 8 or 16 HF input LEDs:
Yellow = MPEG data stream present
Off = MPEG data stream not present
6. RF input 1...4
7. RF input 5...8
8. RF input 9...12 (MIP 16-0x only)
9. RF input 13...16 (MIP 16-0x only)
10. RJ-45 Ethernet connector IPTV output
11. RJ-45 Ethernet connector Control
MIP 8-06/16-06
MIP 8-06 and MIP 16-06 each have 6 common interfaces (CI1 ... CI6).
Which encrypted program you decrypt with which interface; you determine in the configuration.
Page 8 of 56 AXING-BA_MIP-8-16-0x.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2023-10-05
No IPTV stream (no input signal, tuner not configured, no program
selected, no program configured for output)
IPTV stream ok
IPTV stream overload.
