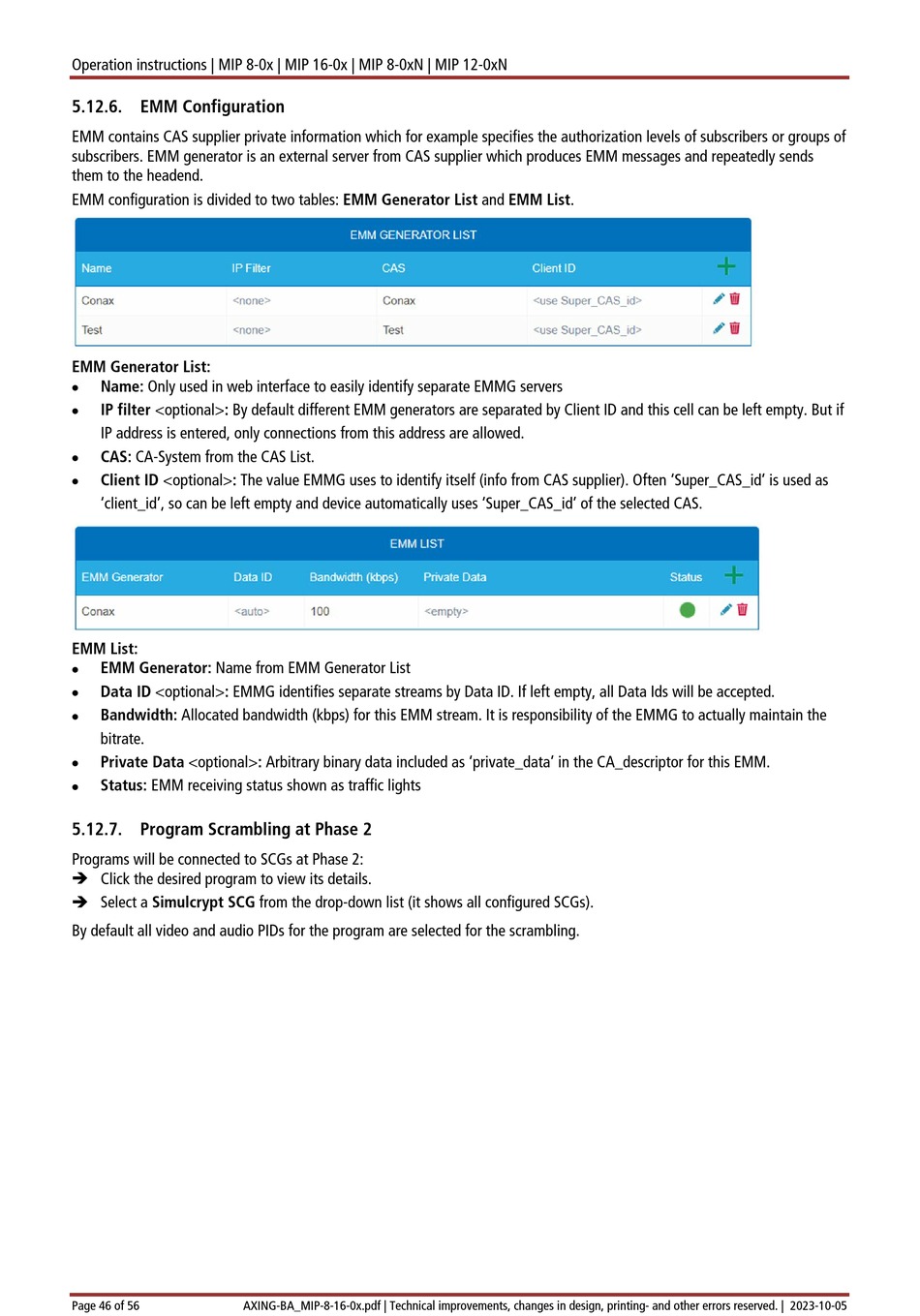

5.12.6. EMM Configuration

EMM contains CAS supplier private information which for example specifies the authorization levels of subscribers or groups of
subscribers. EMM generator is an external server from CAS supplier which produces EMM messages and repeatedly sends
them to the headend.
EMM configuration is divided to two tables: EMM Generator List and EMM List.
EMM Generator List:
•
Name: Only used in web interface to easily identify separate EMMG servers
•
IP filter <optional>: By default different EMM generators are separated by Client ID and this cell can be left empty. But if
IP address is entered, only connections from this address are allowed.
• CAS: CA-System from the CAS List.
•
Client ID <optional>: The value EMMG uses to identify itself (info from CAS supplier). Often 'Super_CAS_id' is used as
'client_id', so can be left empty and device automatically uses 'Super_CAS_id' of the selected CAS.
EMM List:
•
EMM Generator: Name from EMM Generator List
• Data ID <optional>: EMMG identifies separate streams by Data ID. If left empty, all Data Ids will be accepted.
• Bandwidth: Allocated bandwidth (kbps) for this EMM stream. It is responsibility of the EMMG to actually maintain the
bitrate.
•
Private Data <optional>: Arbitrary binary data included as 'private_data' in the CA_descriptor for this EMM.
• Status: EMM receiving status shown as traffic lights

5.12.7. Program Scrambling at Phase 2

Programs will be connected to SCGs at Phase 2:
 Click the desired program to view its details.
 Select a Simulcrypt SCG from the drop-down list (it shows all configured SCGs).
By default all video and audio PIDs for the program are selected for the scrambling.
