MIP 8-00N | MIP 8-03N | MIP 12-00N | MIP 12-03N

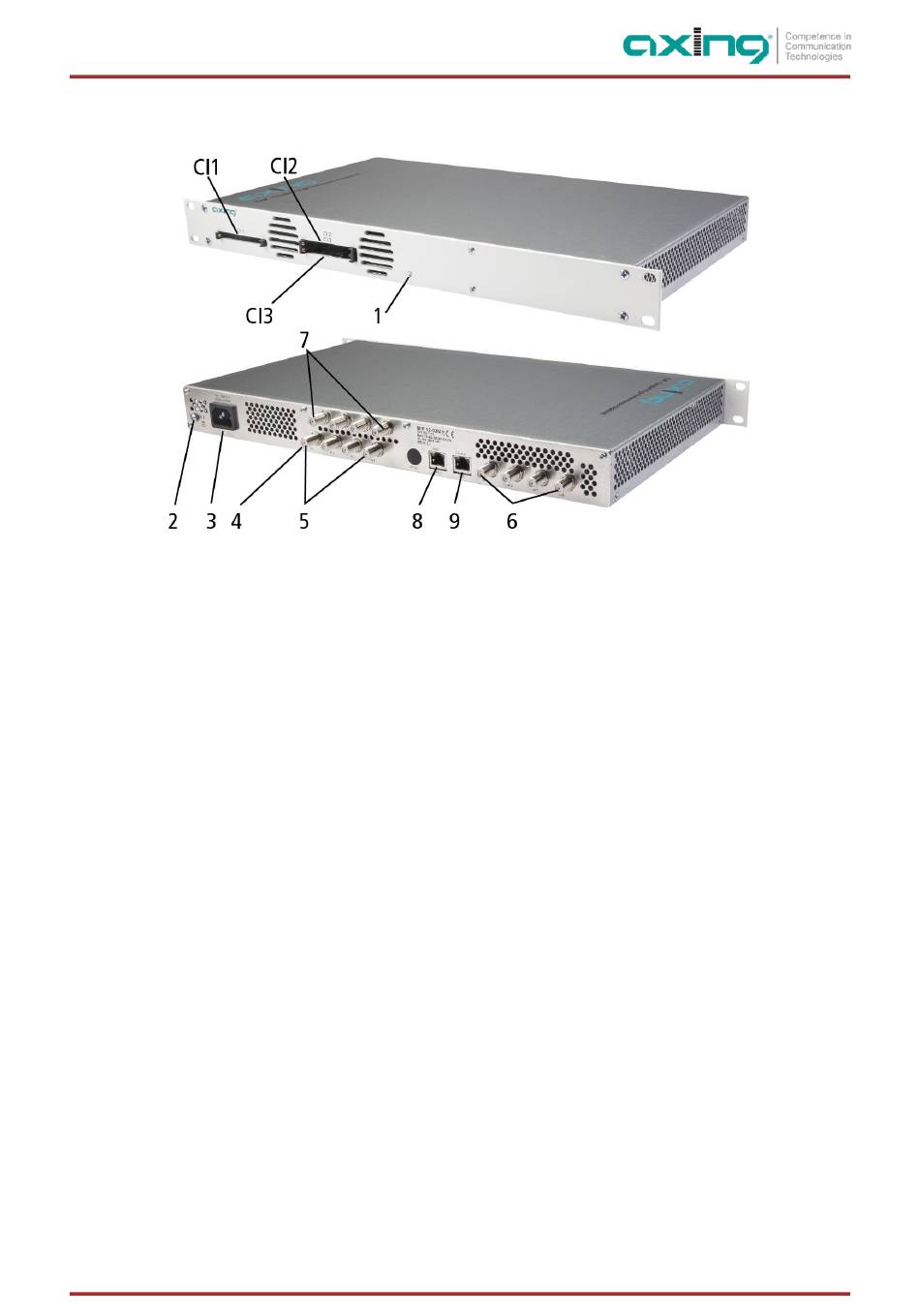

1. LED IPTV stream:
Green (blinking) =
Green =
Red =
2. Equipotential bonding connection
3. Mains connection
4. 8 or 12 HF input LEDs:
Yellow = MPEG data stream present
Off = MPEG data stream not present
5. RF input 1 ... 4
6. RF input 5 ... 8
7. RF input 9 ... 12 (MIP 12-0xN only)
8. RJ-45 Ethernet connector IPTV output
9. RJ-45 Ethernet connector Control
CI slots of the MIP 8-03N/MIP 12-03N
MIP 8-03N and MIP 12-03N each have 3 CI slots (CI1 ... CI3). The settings for the CA modules can be made in the CI menus on
the start page of the user interface.
2023-10-05 | Technical improvements, changes in design, printing- and other errors reserved. | AXING-BA_MIP-8-16-0x.pdf
No IPTV stream (no input signal,
tuner not configured, no program selected,
no program configured for output)
IPTV stream ok
IPTV stream overload.
