Operation instructions | MIP 8-0x | MIP 16-0x | MIP 8-0xN | MIP 12-0xN

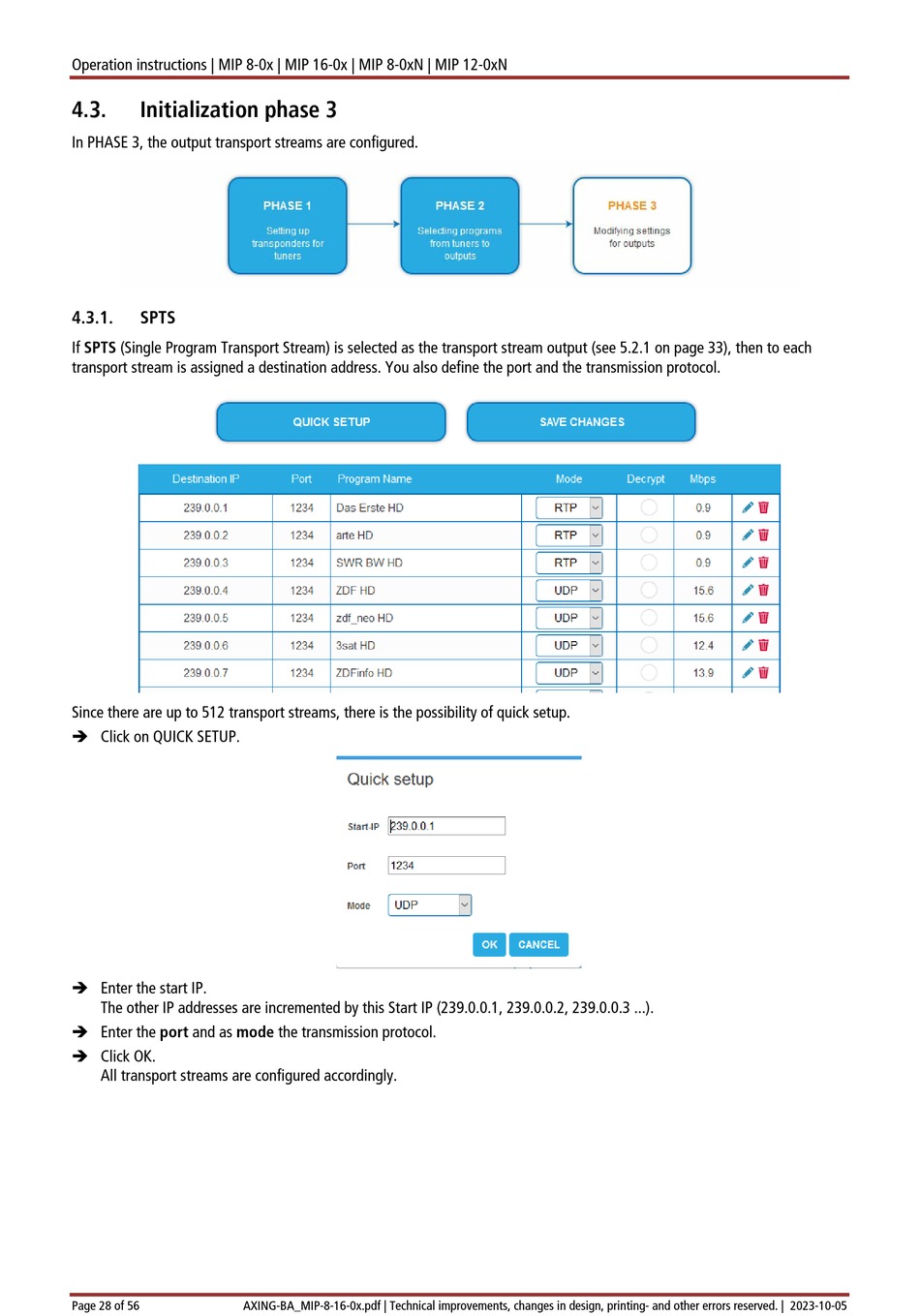

4.3.

Initialization phase 3

In PHASE 3, the output transport streams are configured.
4.3.1.

SPTS

If SPTS (Single Program Transport Stream) is selected as the transport stream output (see 5.2.1 on page 33), then to each
transport stream is assigned a destination address. You also define the port and the transmission protocol.
Since there are up to 512 transport streams, there is the possibility of quick setup.
 Click on QUICK SETUP.
 Enter the start IP.
The other IP addresses are incremented by this Start IP (239.0.0.1, 239.0.0.2, 239.0.0.3 ...).
 Enter the port and as mode the transmission protocol.
 Click OK.
All transport streams are configured accordingly.
