Operation instructions | MIP 8-0x | MIP 16-0x | MIP 8-0xN | MIP 12-0xN

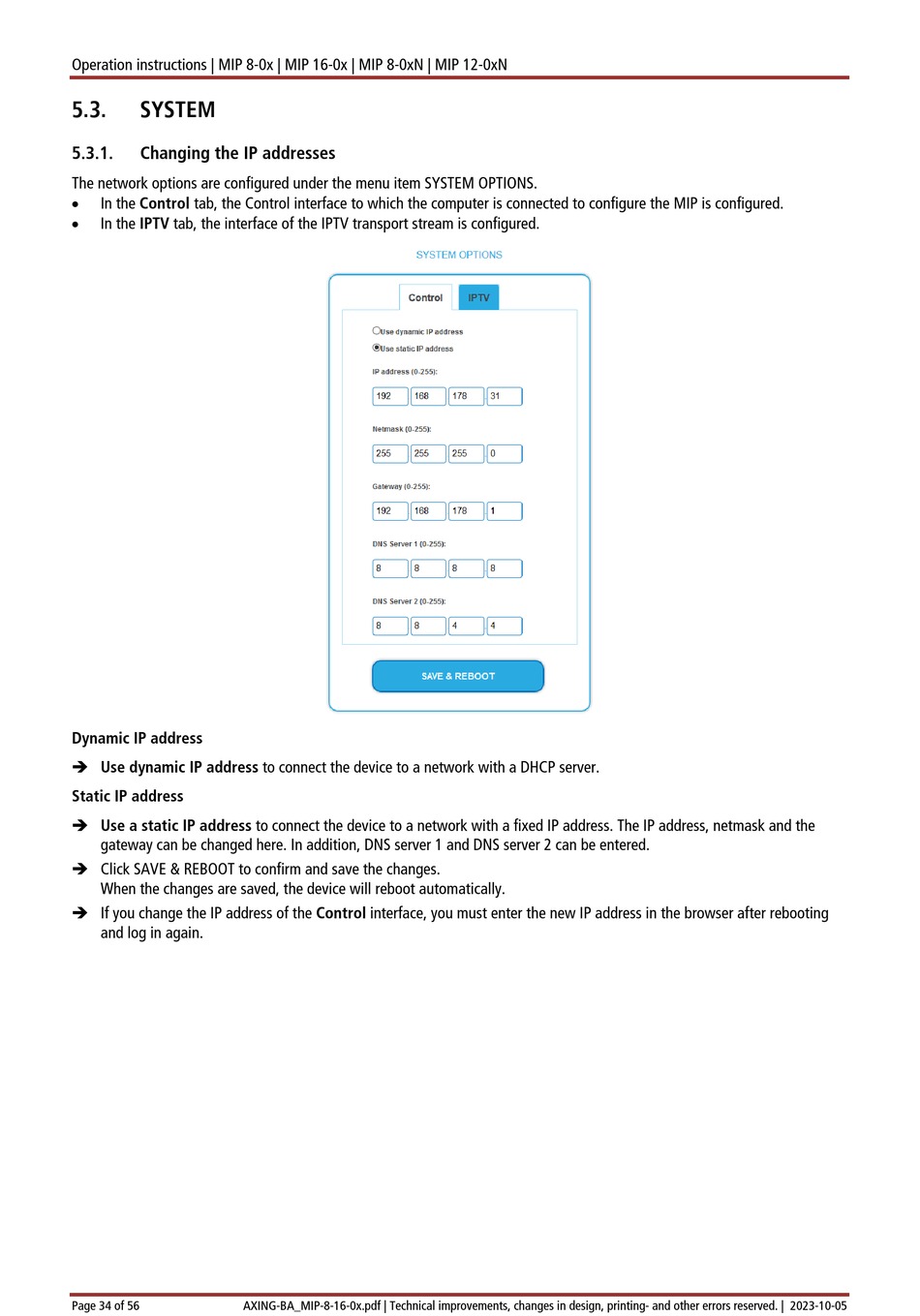

5.3.

SYSTEM

5.3.1.

Changing the IP addresses

The network options are configured under the menu item SYSTEM OPTIONS.
•
In the Control tab, the Control interface to which the computer is connected to configure the MIP is configured.
•
In the IPTV tab, the interface of the IPTV transport stream is configured.
Dynamic IP address
 Use dynamic IP address to connect the device to a network with a DHCP server.
Static IP address
 Use a static IP address to connect the device to a network with a fixed IP address. The IP address, netmask and the
gateway can be changed here. In addition, DNS server 1 and DNS server 2 can be entered.
 Click SAVE & REBOOT to confirm and save the changes.
When the changes are saved, the device will reboot automatically.
 If you change the IP address of the Control interface, you must enter the new IP address in the browser after rebooting
and log in again.
Page 34 of 56 AXING-BA_MIP-8-16-0x.pdf | Technical improvements, changes in design, printing- and other errors reserved. | 2023-10-05
