2.4.

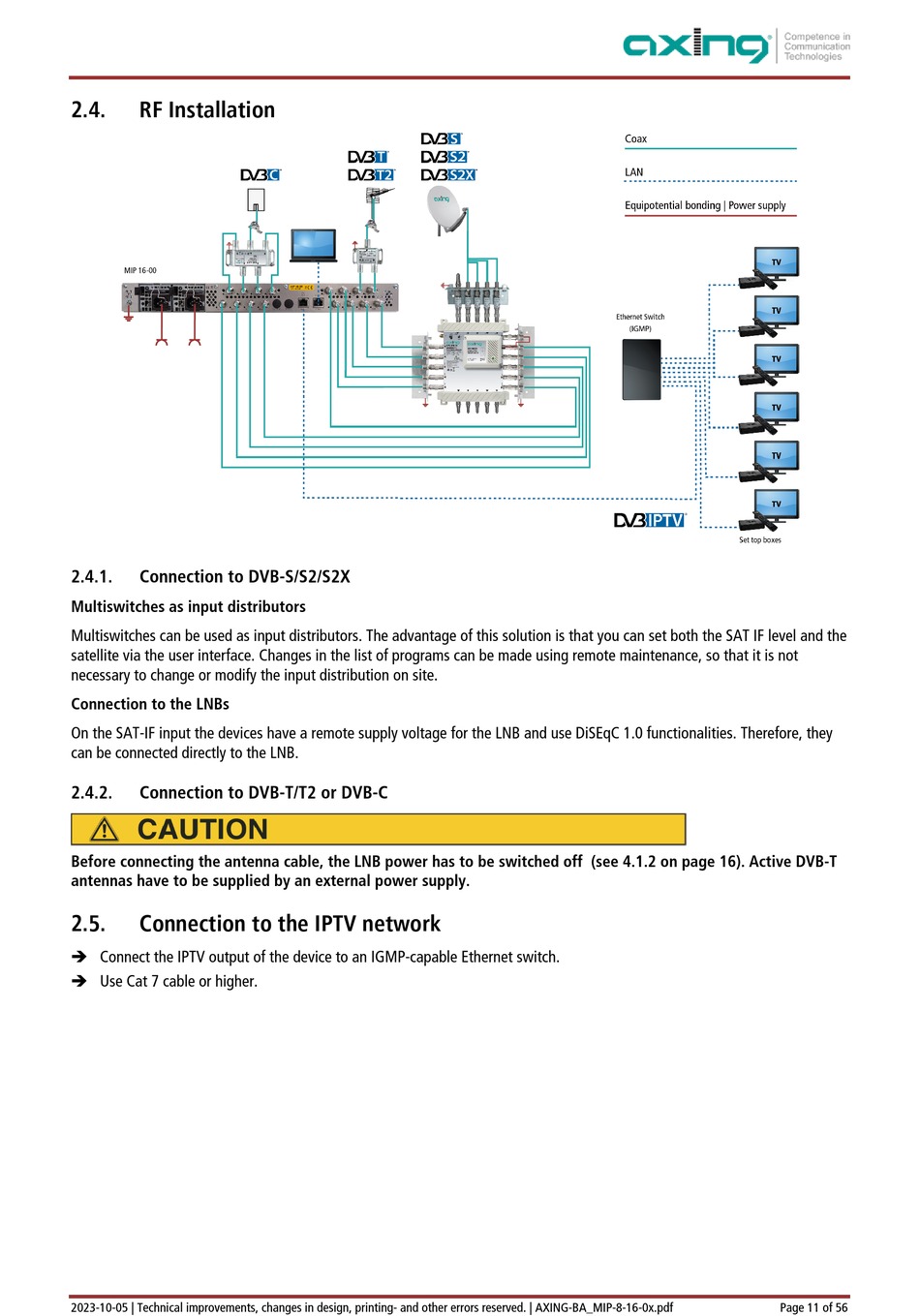

RF Installation

2.4.1.

Connection to DVB-S/S2/S2X

Multiswitches as input distributors
Multiswitches can be used as input distributors. The advantage of this solution is that you can set both the SAT IF level and the
satellite via the user interface. Changes in the list of programs can be made using remote maintenance, so that it is not
necessary to change or modify the input distribution on site.
Connection to the LNBs
On the SAT-IF input the devices have a remote supply voltage for the LNB and use DiSEqC 1.0 functionalities. Therefore, they
can be connected directly to the LNB.
2.4.2.

Connection to DVB-T/T2 or DVB-C

Before connecting the antenna cable, the LNB power has to be switched off (see 4.1.2 on page 16). Active DVB-T
antennas have to be supplied by an external power supply.
2.5.

Connection to the IPTV network

 Connect the IPTV output of the device to an IGMP-capable Ethernet switch.
 Use Cat 7 cable or higher.
