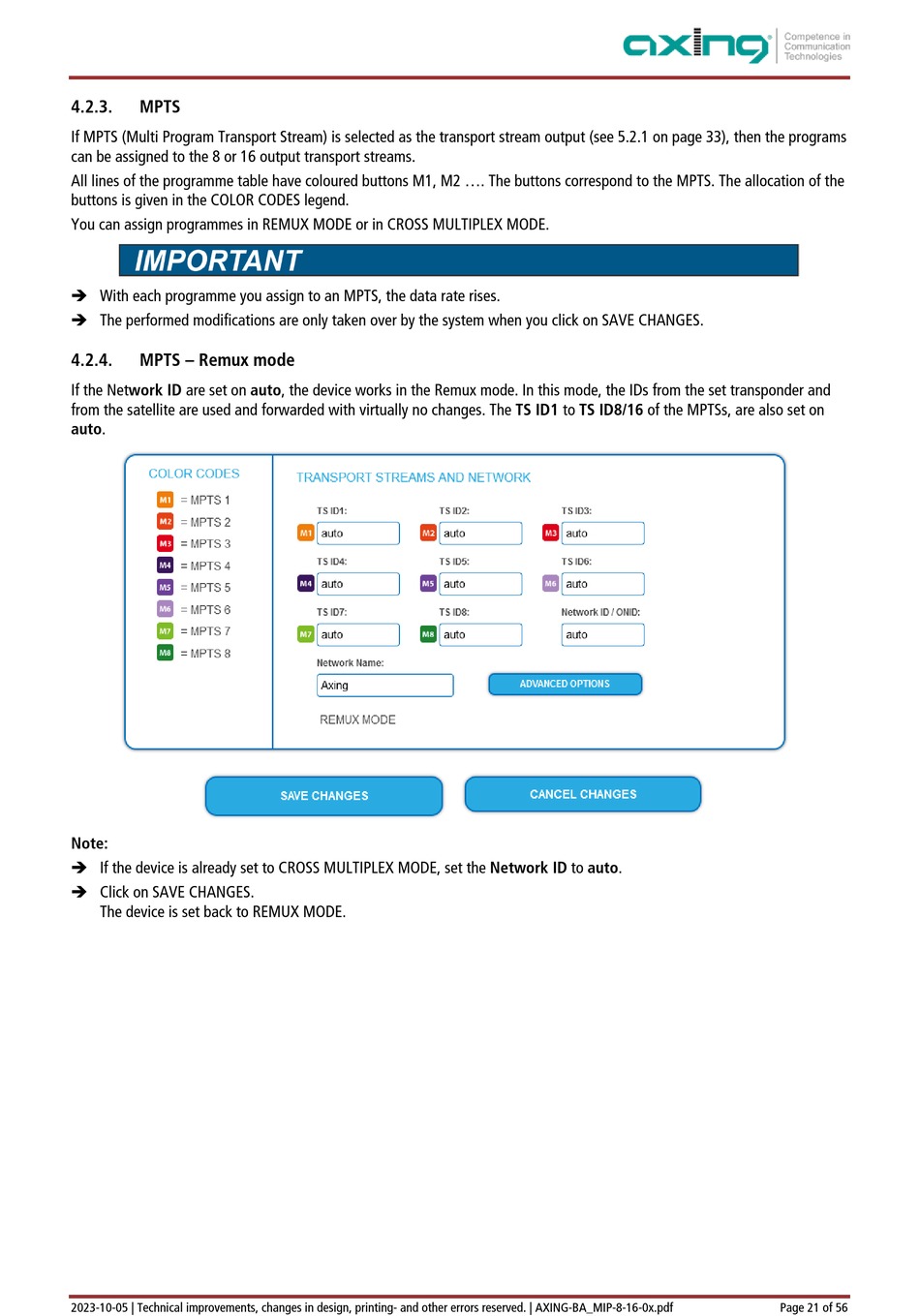

4.2.3.

MPTS

If MPTS (Multi Program Transport Stream) is selected as the transport stream output (see 5.2.1 on page 33), then the programs
can be assigned to the 8 or 16 output transport streams.
All lines of the programme table have coloured buttons M1, M2 .... The buttons correspond to the MPTS. The allocation of the
buttons is given in the COLOR CODES legend.
You can assign programmes in REMUX MODE or in CROSS MULTIPLEX MODE.
 With each programme you assign to an MPTS, the data rate rises.
 The performed modifications are only taken over by the system when you click on SAVE CHANGES.
4.2.4. MPTS – Remux mode
If the Network ID are set on auto, the device works in the Remux mode. In this mode, the IDs from the set transponder and
from the satellite are used and forwarded with virtually no changes. The TS ID1 to TS ID8/16 of the MPTSs, are also set on
auto.
Note:
 If the device is already set to CROSS MULTIPLEX MODE, set the Network ID to auto.
 Click on SAVE CHANGES.
The device is set back to REMUX MODE.
