TASKING iSYSTEM Infineon DAP Hardware User Manual page 7

Blinking blue – Reprogramming SPLASH.
Permanently magenta – Golden image loaded and ready to use.

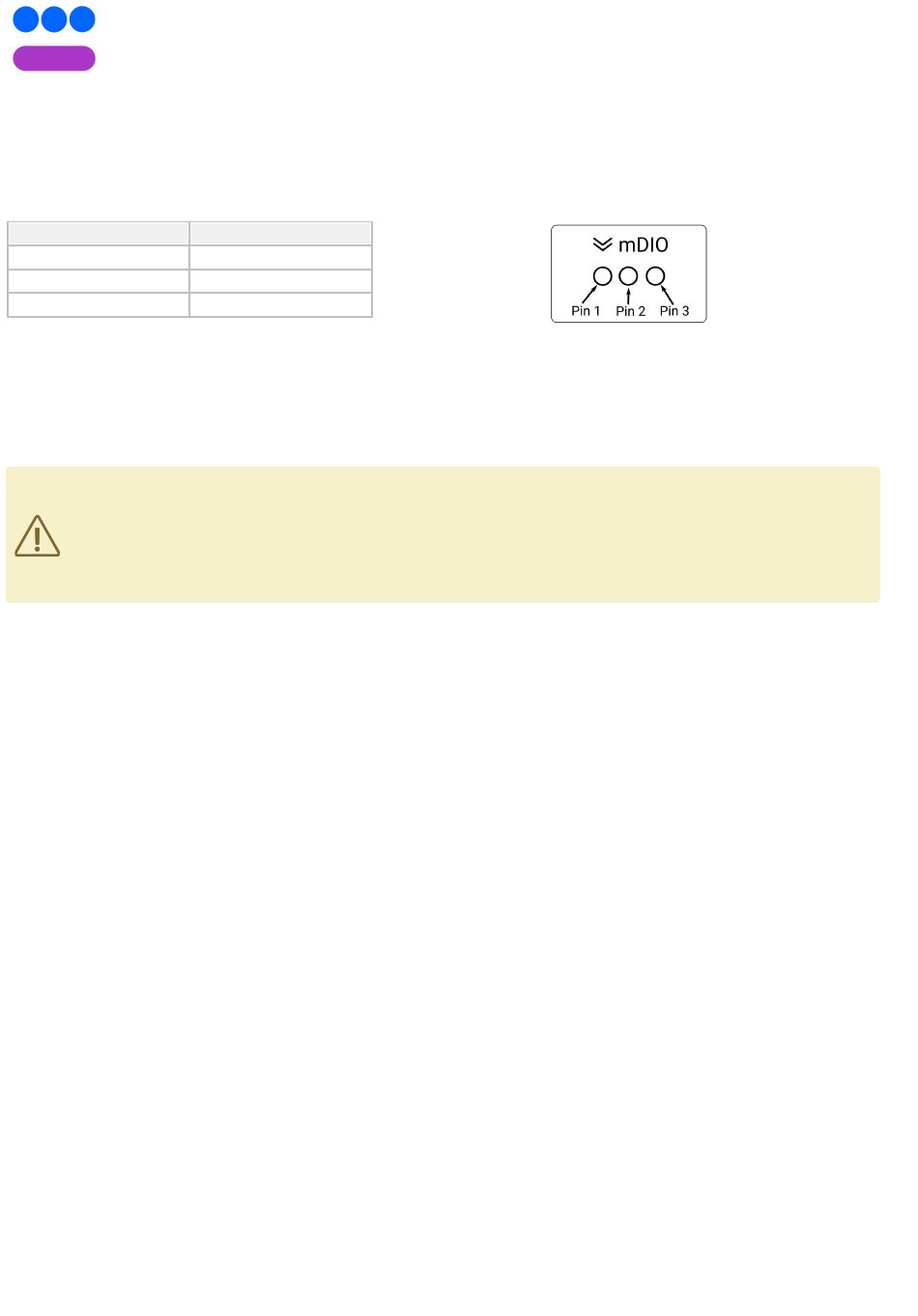

D – mDIO port with the marked Pin1 on the housing
mDIO port provides two digital signals, which can interact with the embedded target. Each can
be configured either for input or output operation.
Number
Pin1
Pin2
Pin3
mDIO port pinout
E – FNet connector, that connects the Active Probe to the iC5700 BlueBox. The FNet cable is
delivered with the Active Probe.
When powering on the system, switch the BlueBox on before powering on the target.
When powering down the system, power off the target before powering off the
BlueBox!
Use only original accessories for powering and connecting with the BlueBox. Consult
with technical support before attempting to use any other accessory.
Name
IOØ
IO1
GND
mDIO port on the Active Probe
