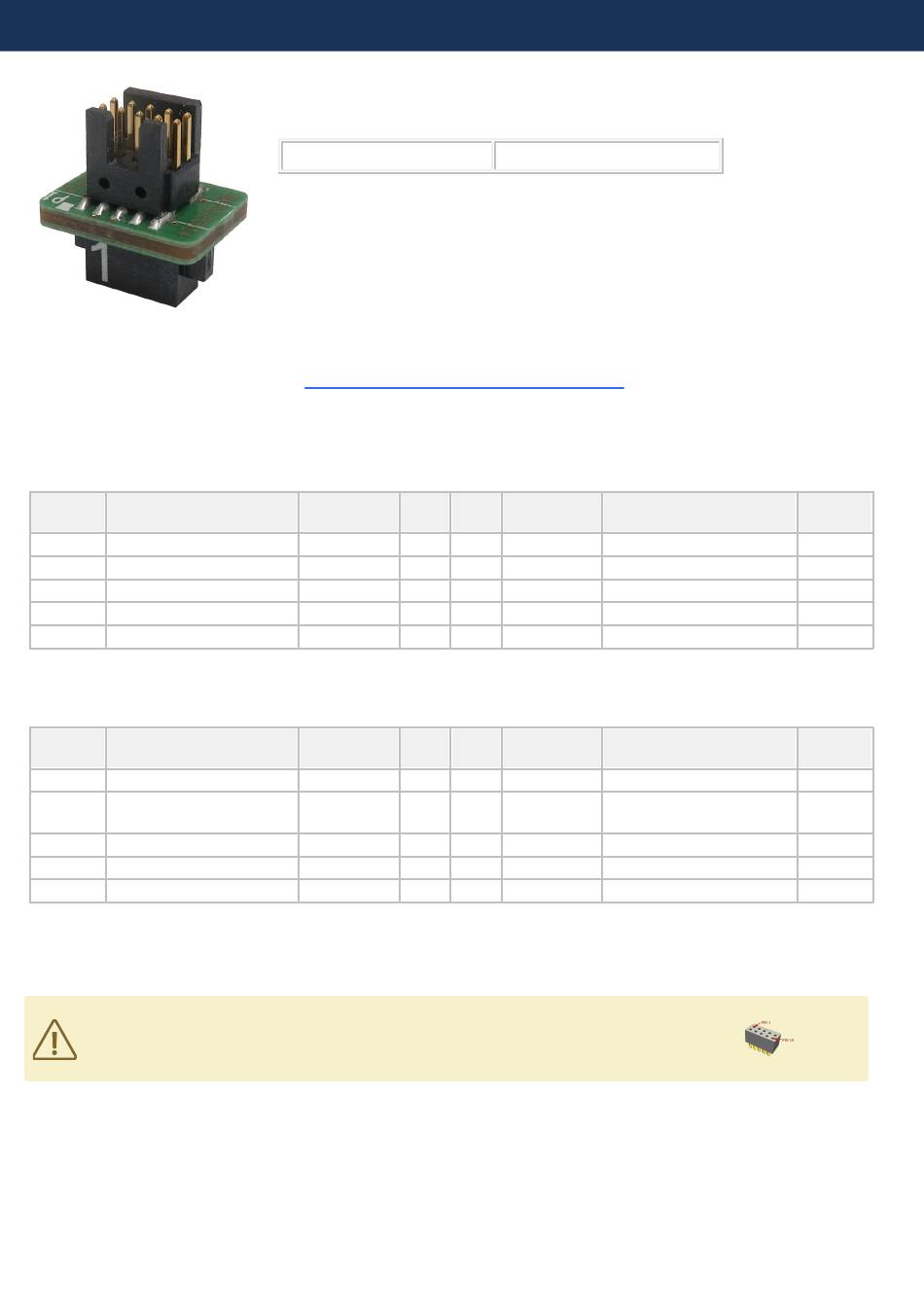

ECU14 DAP 10-pin 1.27mm Converter

The ECU14 converter and the pinout has been defined by Bosch. The ECU14 DAP 10-pin
converter is connecting at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter
(Ordering code IC50163-2) or
acting as a pinout converter is available for TriCore targets featuring the ECU14 10-pin 1.27mm
target debug connector. It must be ordered separately.
A1
- The following pinout is valid on the target side:
Signal
Signal Description
Direction
Ground
Not Connected
I/O DAP Data pin
Not Connected
Not Connected
A2
- The following pinout is valid on the target side:
Signal
Signal Description
Direction
Ground
I/O Optional 3rd Data pin
I/O DAP Data pin
Not Connected
Not Connected
Signal Direction is described from the BlueBox perspective.
The pin next to the alignment pin is pin 10 and not pin 1!
Pin is marked with a number 1 directly on the converter target
connector.
Ordering code
Infineon DAP/DAPE II Active Probe
Signal Pin
GND 1
NC 3
DAP1 5
NC 7
NC 9
Revision A1: 10-pin ECU14 target pinout
Signal Pin
GND 1
nTRST/DAPE 3
N
DAP1 5
NC 7
NC 9
Revision A2: 10-pin ECU14 target pinout
IADAP10ECU14
(Ordering code IC57163-1)
Pin Signal
2 DAP0
4 DAP2 Optional 2nd Data pin
6 DAPEN Optional 3rd Data pin
8 Vref
10 nRESET
Pin Signal
2 DAP0
4 DAP2 Optional 2nd Data pin
6 DAPEN Optional 3rd Data pin
8 Vref
10 nRESET
Signal Description
Direction
DAP clock
Reference voltage
Reset
Signal Description
Direction
DAP clock
Reference voltage
Reset
Signal
O
I/O
I/O
I
O
Signal
O
I/O
I/O
I
O
