Installation -

Cabling

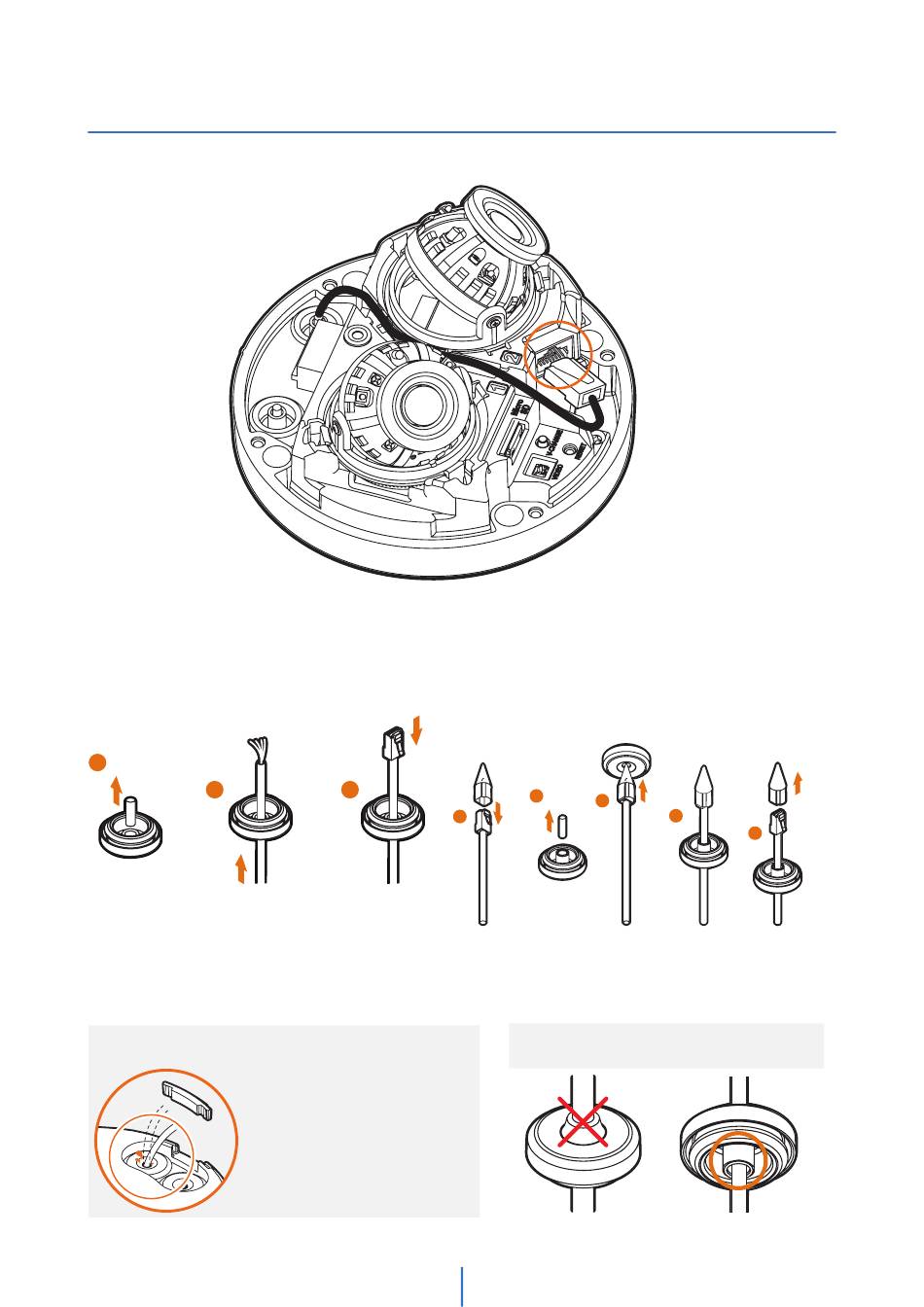

1. Network cable - To connect an RJ45 cable to the camera:
Option A (Recommended):
a. Remove the grommet plug.
b. Pass the network cable through the grommet at the
base of the camera.
c. Once the cable is through, add the RJ45 connector.
d. Connect the RJ45 to the camera's network input at the
base of the camera.
a
b
NOTE:
Use a cable with a diameter of ø0.19"
~ ø0.31" (ø5.0 ~ ø8.0mm).
Depending on the installation
environment, remove the rubber
plug on the side of the camera's
base and use the gap as a cable
guide to prevent cables from getting
caught between the camera and the
mounting surface.
Option B:
a. Attach the included RJ45 installation tool to the network
cable.
b. Remove the grommet plug.
c. Pass the network cable through the grommet. Pay
attention to the direction of the grommet connection.
d. Once the cable's connector is through, remove the
installation tool.
e. Once the network cable is passed through the grommet:
c
a
f. Insert the grommet into the bottom of the camera base.
g. Connect the RJ45 to the camera's network input at the
base of the camera.
NOTE:
11
b
c
d
Bending the cable may cause water
leakage.
e
