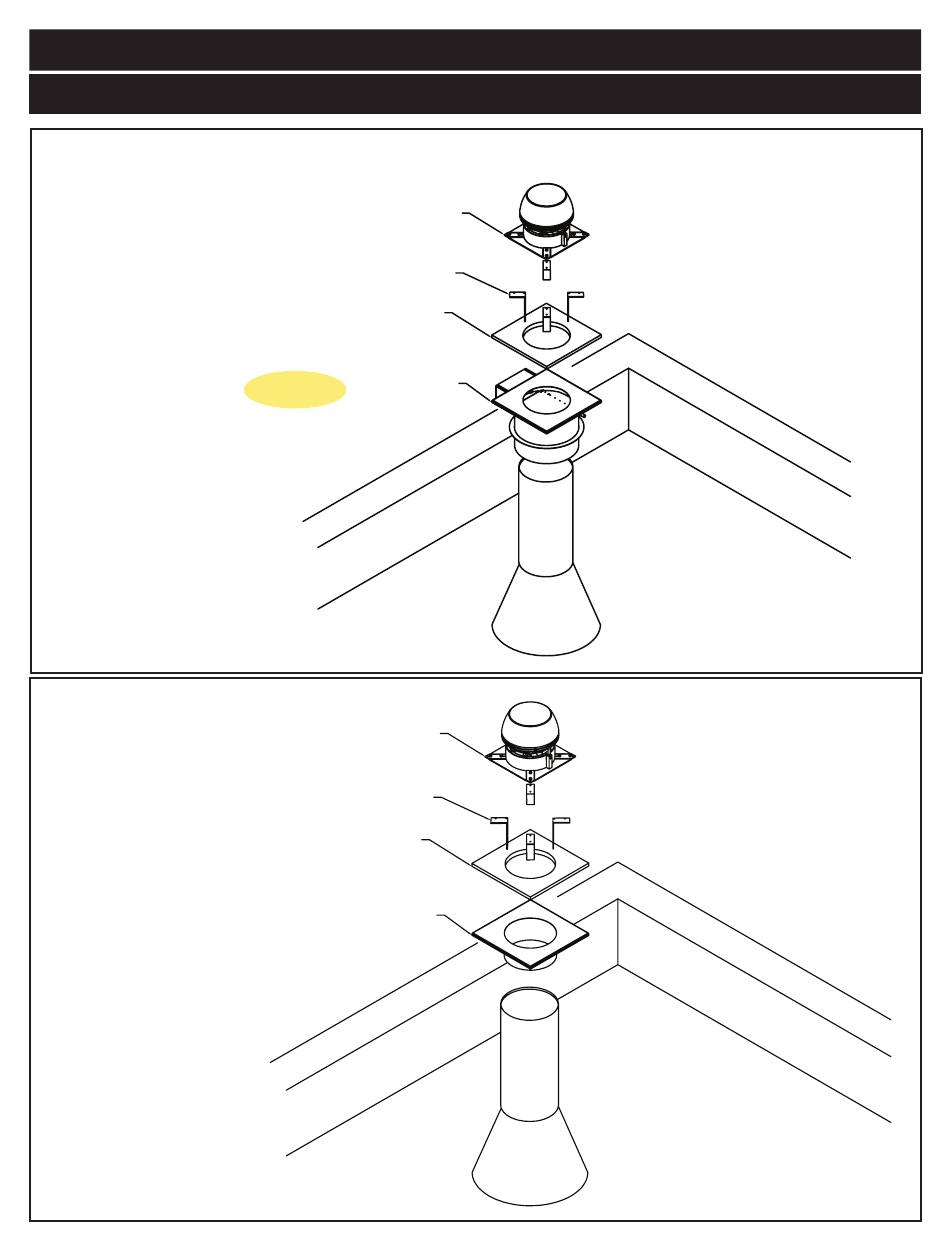

I. ROOF TERMINATION CAP INSTALLATION - WITH AND WITHOUT DAMPER
Roof Termination With

Optional Mechanical Damper

Note: Access to all mechanical components must be maintained for service and maintenance.
Figure 8I.1
Roof Termination Without
Optional Mechanical Damper
Figure 8I.2
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 Rev. o • 4/21
8 - VENTING
POWERVENT
MOUNTING BRACKETS
OR DRILL MOUNTING HOLES
TO MATCH BASE
INSULATION PAD MUST BE CUT IN
CENTER TO ACCOMMODATE VENT SIZE.
MECHANICAL
OPTIONAL
FLUE DAMPER
POWERVENT
MOUNTING BRACKETS
OR DRILL MOUNTING
HOLES TO MATCH BASE
INSULATION PAD MUST BE CUT IN
CENTER TO ACCOMMODATE VENT SIZE.
STEEL CHIMNEY ADAPTER
31
