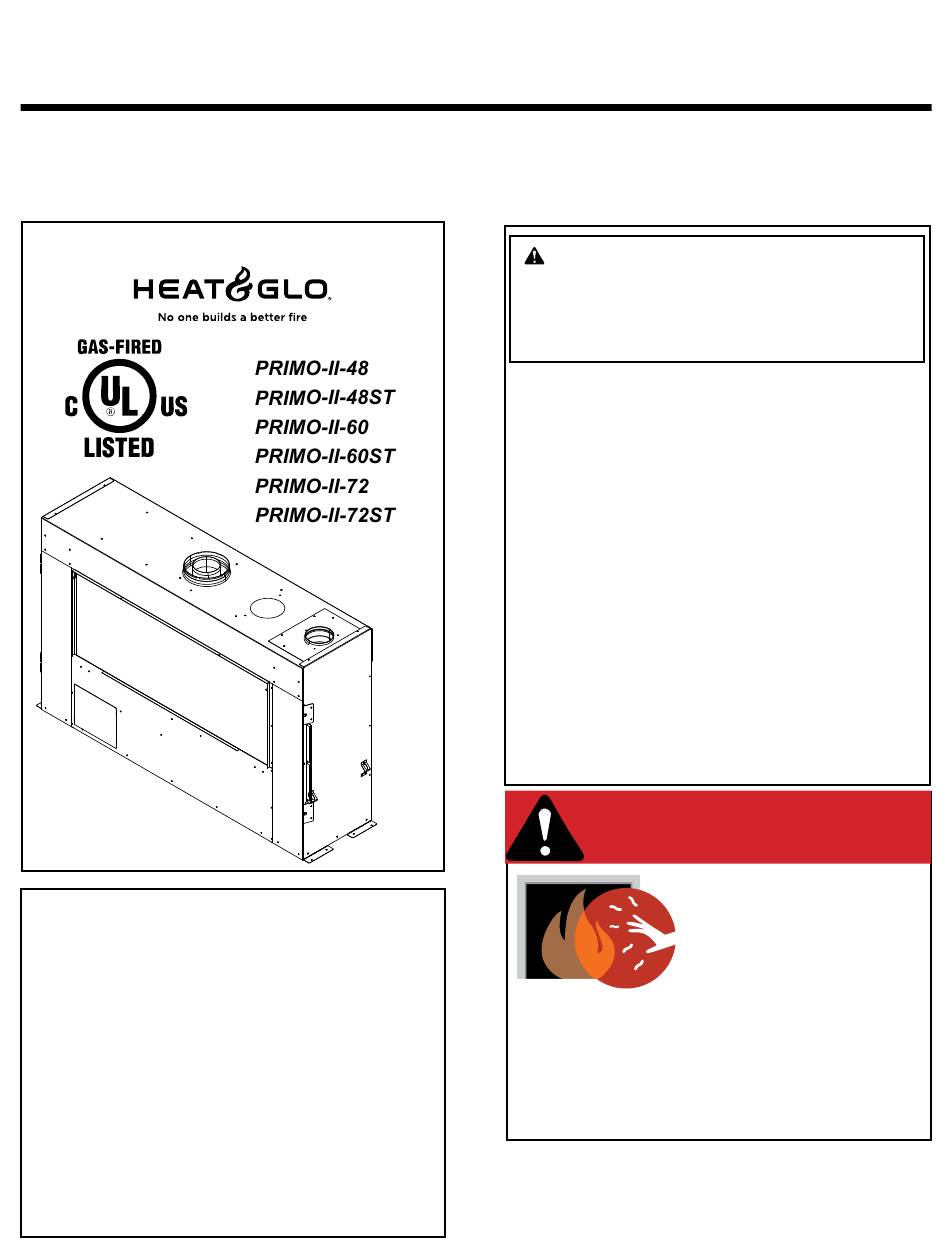

Heat&Glo PRIMO-II-48 Installation Manual

Hide thumbs Also See for PRIMO-II-48:
Table of Contents

Advertisement

Quick Links

Download this manual
CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
NOTICE: DO NOT discard this manual!
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Installation Manual
Installation and Appliance Setup
Models:
Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A (glass) barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
SafeSurface
barrier glass must be ordered separately
TM
at time of appliance purchase. See Section 12.B.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMO-II-48 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heat&Glo PRIMO-II-48

Summary of Contents for Heat&Glo PRIMO-II-48

  • Page 1 Installation Manual Installation and Appliance Setup CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity. High temperatures could cause a fire. INSTALLER: Leave this manual with the appliance, not inside the appliance. CONSUMER: Retain this manual for future reference. Do not store inside the appliance. NOTICE: DO NOT discard this manual! WARNING: FIRE OR EXPLOSION HAZARD...

  • Page 2: Table Of Contents

    Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. •...

  • Page 3: Installation Standard Work Checklist

    Customer: Date Installed: Lot/Address: Location of Fireplace: Installer: Model (circle one): PRIMO-II-48, PRIMO-II-60, PRIMO-II-72 Dealer/Distributor Phone # PRIMO-II-48ST, PRIMO-II-60ST, PRIMO-II-72ST Serial #: WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could lead to a fire or explosion. Install ONLY components and accessories approved by Hearth & Home Technologies.

  • Page 4: Product Specific And Important Safety Information

    A. Appliance Certification This appliance requires the installation of SafeSurface Glass which keeps the surface temperature of the barrier MODEL: PRIMO-II-48, PRIMO-II-48ST, glass at a safe level and will still be hot to the touch when PRIMO-II-60, PRIMO-II-60ST, operated for long periods of time. SafeSurface...

  • Page 5: Non-Combustible Materials Specification

    E. Non-Combustible Materials Specification Material which will not ignite and burn. Such materials are those consisting entirely of steel, iron, brick, tile, con- crete, slate, glass or plasters, or any combination thereof. Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750 ºC shall be considered non-combustible materials.

  • Page 6: Requirements For The Commonwealth Of Massachusetts

    Inspection Note: The following requirements reference various The state or local gas inspector of the side wall horizon- Massachusetts and national codes not contained in this tally vented gas fueled equipment shall not approve the document. installation unless, upon inspection, the inspector ob- serves carbon monoxide detectors and signage installed I.

  • Page 7: Getting Started

    Getting Started A. Design and Installation Considerations B. Good Faith Wall Surface/TV Guidelines WARNING! Risk of Fire or Explosion! Read all instruc- tions before starting the installation. TO CEILING 77°F Direct vent gas appliances are designed to operate with all combustion air siphoned from outside of the building 79°F and all exhaust gases expelled to the outside.
  • Page 8 Good Faith Guidelines for TV Installa�ons above Fireplace TV recessed into the wall TV on the wall Item Minimum Dimensions 1 inch 23-1/2 inches *Dimension from top of opening to bottom of framing allows for recessed wall to clear the appliance header and venting.

  • Page 9: Tools And Supplies Needed

    D. Inspect Appliance and Components C. Tools and Supplies Needed WARNING! Risk of Fire or Explosion! Damaged parts Before beginning the installation be sure that the following could impair safe operation. DO NOT install damaged, in- tools and building supplies are available. complete or substitute components.

  • Page 10: Framing And Clearances

    33-15/16 33-15/16 9-1/8 9-1/8 9-1/8 40-13/16 1037 40-13/16 1037 40-13/16 1037 18-1/4 18-1/4 18-1/4 6-1/2 6-1/2 6-1/2 5-3/8 5-3/8 5-3/8 Figure 3.1 Appliance Dimensions (PRIMO-II-48, PRIMO-II-60, PRIMO-II-72) Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23...
  • Page 11 Appliance Weight Table Model Pounds Kilograms PRIMO-II-48ST PRIMO-II-60ST PRIMO-II-72ST TOP VIEW PRIMO-HEAT-DUCT OUTSIDE AIR INTAKE Ø FRONT VIEW SIDE VIEW SIDE VIEW ELECTRICAL ACCESS CARRY-HANDLE BRACKETS (BOTH SIDES) ACCESS GAS / ELECTRIC CONNECTION Appliance Dimensions Table PRIMO-II-48ST PRIMO-II-60ST PRIMO-II-72ST PRIMO-II-48ST PRIMO-II-60ST PRIMO-II-72ST Location...

  • Page 12: Appliance Location And Clearances To Combustibles

    78-1/2 102-1/2 Section 10 PRIMO-II-60 Mantel Millimeters 1842 1994 2604 Projections Inches 90-1/2 114-1/2 36-1/4 PRIMO-II-72 Millimeters 2057 2299 2908 Figure 3.3 Appliance Locations PRIMO-II-48, PRIMO-II-60, PRIMO-II-72 Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23...
  • Page 13 NOTICE: This See-Through appliance is NOT designed or approved for an indoor/ outdoor application, unless used with the ODK-PR-48/60/72 kits. Model Inches 66-1/2 18-1/4 PRIMO-II-48ST Millimeters 1689 Inches 78-1/2 18-1/4 PRIMO-II-60ST Millimeters 1994 Inches 90-1/2 18-1/4 PRIMO-II-72ST Millimeters 2299 Figure 3.4 Appliance Locations PRIMO-II-48ST, PRIMO-II-60ST, PRIMO-II-72ST 2 X 4 OR GREATER FRAMING MATERIAL FRAMING GREATER THAN...
  • Page 14 *** = If appliance is installed off of floor, maintain required clearances to combustibles. Construct platform in accordance with local building codes. **** = For installations with vinyl flooring, see Section 3.E. Figure 3.6 Clearances to Combustibles-PRIMO-II-48, PRIMO-II-60, PRIMO-II-72 Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23...
  • Page 15 PRIMO-II-48ST, PRIMO-II-60ST, PRIMO-II-72ST E=MEASURE FROM TOP OF FIREPLACE OPENING HEADER DEPTH** HEADER J=MEASUREMENT FROM DEPTH** BOTTOM OF FIREPLACE TO CEILING G**** APPLIANCE MAY BE INSTALLED OFF OF FLOOR*** Note: C will increase if optional indoor/outdoor kit is installed. For installation instructions and framing dimensions, refer to Section 12.C.

  • Page 16: Optional Indoor / Outdoor Kit

    C. Optional Indoor / Outdoor Kit An optional Indoor / Outdoor kit is available for use with the PRIMO-II-48ST, PRIMO-II-60ST or PRIMO-II-72ST models. The Indoor / Outdoor kit is a metal trim exten- sion kit for the back side of the see-through models which allows the appliance to be aligned with a window in the home so the fireplace may be enjoyed from outdoors.

  • Page 17: Constructing The Appliance Chase

    D. Constructing the Appliance Chase A Measured from bottom of overhang to top of NOTICE: Install appliance on hard metal or wood surfaces termination cap B - Measured from bottom of appliance to extending full width and depth. DO NOT install directly on combustible surface carpeting, vinyl, or any combustible material other than wood.

  • Page 18: Termination Location And Vent Information

    Termination Location and Vent Information B. Vent Termination Minimum Clearances A. Approved Pipe WARNING! Risk of Fire, Delayed Ignition or Asphyxi- WARNING ation. This appliance requires a separate vent. DO NOT Fire Risk. vent to a pipe serving any other appliance. Maintain vent clearance to combustibles as This appliance is only approved for use with Hearth &...
  • Page 19 6 in. (minimum) up to 20 in. 18 in. minimum 152 mm/508 mm 457 mm 20 in. and over 0 in. minimum PRIMO-II Termination Cap Wood or Fuel Oil Termination Cap 6 IN. MINIMUM PRIMO-II Air Intake or Gas Termination Cap Figure 4.2 Staggered Termination Caps Heat &...
  • Page 20 CAUTION! Risk of Burns! Termination caps are HOT, consider proximity to doors, traffic areas or where people may pass or gather (sidewalk, deck, patio, etc.). Listed cap shields available. Contact your dealer. • Local codes or regulations may require different clearances.

  • Page 21: Vent Terminal Clearances

    C. Vent Terminal Clearances = AREA WHERE TERMINAL IS NOT PERMITTED = AIR SUPPLY INLET = VENT TERMINAL OR OUTSIDE AIR INTAKE Electrical Service H or i U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code. Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code.

  • Page 22: Use Of Elbows

    D. Use of Elbows Diagonal runs have both vertical and horizontal vent aspects when calculating the effects. Use the rise for the vertical aspect and the run for the horizontal aspect. See Figure 4.6. Two 45º elbows may be used in place of one 90º elbow. On 45º...

  • Page 23: Vent Diagrams

    E. Vent Diagrams Measuring Standards: General Rules: Vertical and horizontal measurements listed in the vent diagrams and clearances for termination were made • When penetrating a combustible wall, a wall shield using the following standards: firestop must be installed. • Pipe measurements are shown using the effective length •...
  • Page 24 See VENT RUN (FT.)* ELBOWS approved list. Section 12.A. PRIMO-II-48 / ST • A maximum of 100 feet of DVP vent pipe, whether horizontal or vertical, can be used regardless of vent configuration. PRIMO-II-60 / ST •...

  • Page 25: Outside Air Kit (Required)

    VENT RUN (FT.) BENDS ible or rigid insulated ducting is approved for use with the Outside Air Kit. Rigid ducting pipe sections must be PRIMO-II-48 / ST connected with screws and sealed. PRIMO-II-60 / ST PRIMO-II-72 / ST Ensure there is no excess duct present in the vent run which could inhibit air flow.

  • Page 26: Remove Rheostat

    G. Remove Rheostat RHEOSTAT RHEOSTAT WARNING! Risk of Fire or Overheating! When re- moval of rheostat is required, it MUST be removed prior to firing the appliance. Some vent runs require the removal of the rheostat. See Long Vent Run Requirements in Section 4.E. When re- WIRES CONNECTED WIRES CONNECTED quired, the rheostat must be removed prior to firing up the...

  • Page 27: Flue Restrictor

    H. Flue Restrictor The flue restrictor is located in the appliance as shown in Figure 4.15. It is factory-installed at the 1-1 setting on PRIMO-II as shown in Figure 4.16. Removal is required for certain vent runs. See Section 4.E, Venting Rules. FLUE RESTRICTOR FLUE RESTRICTOR Flue Restrictor Removal...

  • Page 28: Vent Clearances And Vent Framing

    Vent Clearances and Vent Framing A. Vent Clearances to Combustibles Elbow and Offset Clearances to Combustibles WARNING! Risk of Fire! Maintain air space clearance to vent. DO NOT pack insulation or other combustibles: 1 IN. MIN. ALL SIDES • Between ceiling firestops •...

  • Page 29: Wall Penetration Framing/Firestops

    B. Wall Penetration Framing/Firestops Combustible Wall Penetration Whenever a combustible wall is penetrated, you must frame a hole for the wall shield firestop(s). The wall shield firestop maintains minimum clearances and prevents cold air infiltration. • The opening must be framed on all four sides using the same size framing materials as those used in the wall construction.

  • Page 30: Ceiling Firestop/Floor Penetration Framing

    C. Ceiling Firestop/Floor Penetra- tion Framing WARNING! Risk of Fire! DO NOT pack insu- lation around the vent. Maintain clearances to vent to prevent overheating. A ceiling firestop MUST be used between ATTIC ABOVE floors and attics. • DVP pipe only - Frame an opening 10 in. by 10 in.

  • Page 31: Appliance Preparation

    Appliance Preparation A. Prepare Install Outside B. Prepare to Install PRIMO-HEAT-DUCT Kit (Required) (Optional) CAUTION! Risk of Cuts, Abrasions or Flying Debris. NOTICE: Additional clearances are required for heat Wear protective gloves and safety glasses during instal- management systems installations. Provisions must be lation.

  • Page 32: Securing And Leveling The Appliance

    C. Securing and Leveling the Appliance WARNING Risk of Fire! Prevent contact with: • Sagging or loose insulation • Insulation backing or plastic • Framing and other combustible materials NAILING TABS Failure to maintain air space clearance could BOTH SIDES cause overheating and fire.

  • Page 33: Venting

    Venting A. Assemble Vent Sections (DVP Pipe Only) Assemble Pipe Sections Per Figure 7.2: WARNING! Risk of Fire or Explosion! Vent sections • Start the inner pipe on the lanced end of section A into MUST be installed correctly. Improperly installed vent the flared end of section B.
  • Page 34 Figure 7.1 High Temperature Silicone Sealant Lances Lances Figure 7.3 Figure 7.2 Note: Make sure that the seams are not aligned to prevent unintentional disconnection. CORRECT INCORRECT Figure 7.4 Seams Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23...

  • Page 35: Assemble Vent Sections (Slp Only)

    B. Assemble Vent Sections (SLP Only) WARNING! Risk of Fire or Explosion! DO NOT break silicone seals on slip sections. Use care when remov- WARNING! Risk of Fire or Explosion! Vent sections ing termination cap from slip pipe. If slip section seals MUST be installed correctly.

  • Page 36: Assemble Slip Sections

    C. Assemble Slip Sections • Slide the inner flue of the slip section into the inner flue of the pipe section and the outer flue of the slip section over the outer flue of the pipe section. See Figure 7.6. •...

  • Page 37: Secure The Vent Sections

    E. Disassemble Vent Sections D. Secure the Vent Sections • Rotate either section (see Figure 7.10) so the seams on WARNING! Risk of Fire, Explosion or Asphyxiation! both pipe sections are aligned as shown in Figure 7.11. Improper support could allow vent to sag and separate. Use vent run supports and connect vent sections per in- •...

  • Page 38: Vertical Termination Requirements

    F. Vertical Termination Requirements Assemble and Install Storm Collar Install and Seal Metal Roof Flashing CAUTION! Risk of Cuts, Abrasions or Flying Debris. Wear protective gloves and safety glasses during instal- • See minimum vent heights for various pitched roofs lation.

  • Page 39: Horizontal Termination Requirements

    Install Vertical Termination Cap G. Horizontal Termination Requirements • Attach the vertical termination cap by sliding the inner Heat Shield Requirements for Horizontal collar of the cap into the inner flue of the pipe section Termination while placing the outer collar of the cap over the outer WARNING! Risk of Fire! To prevent overheating and flue of the pipe section.
  • Page 40 Install Horizontal Termination Cap (DVP and SLP Pipe) WARNING! Risk of Fire! The telescoping flue section of the termination cap MUST be used when connecting vent. • 1-1/2 (38 mm) minimum overlap of flue telescoping section is required. Failure to maintain overlap could cause overheating and fire.

  • Page 41: Electrical Information

    Electrical Information A. General Information NOTICE: DO NOT wire 110-120 VAC to wall switch. WARNING! Risk of Shock! DO NOT wire 110-120 VAC to the IntelliFire Touch 2.0 Electronic Control Module (IFT- ECM 2.0) or to the appliance wall switch. Incorrect wiring will damage the IFT2-ECM.

  • Page 42: Wiring Requirements

    B. Wiring Requirements • Make all necessary wire connections to the junction box/ receptacle and reattach the junction box/receptacle to IntelliFire Touch Ignition System Wiring ® the outer shell. • Wire the appliance junction box to 110-120 VAC for proper operation of the appliance. •...
  • Page 43 Removal of Fans for Service If the convection and combustion fans need to be ser- viced or replaced, a replacement kit is available. Follow instructions for fan removal included in the kit. Contact your dealer to order. Figure 8.4 Lift Component Tray Up and Out of Firebox Figure 8.5 Component Tray Removed RHEOSTAT ASSEMBLY IFT CONTROL MODULE PACM...
  • Page 44 IFT2-RC450 PILOT ASSEMBLY 2564-110 2406-012 (PROPANE ONLY) REMOTE CONTROL FLAME IGNITER 6 VDC POWER SENSE ADAPTER 2326-191 6 VDC POWER ADAPTER WIRE ASSEMBLY MODULE 2326-131 34937 X 2 RESET SWITCH 2206-298 IFT-RC150U 2564-100 WIRELESS TO JUNCTION BOX WALL SWITCH 110-120 VAC IFT2-PACM 2326-152 (OPTIONAL)
  • Page 45 180 ˚F 150 ˚F Figure 8.8 High Temperature Limit Switch Locations Heat & Glo • PRIMO-II Installation Manual • 2670-980 Rev. B • 6/23...

  • Page 46: Gas Information

    Gas Information A. Fuel Conversion C. Gas Connection • Make sure the appliance is compatible with available gas WARNING! Risk of Fire or Explosion! Support control types. when attaching pipe to prevent bending gas line. • Conversions must be made by a qualified service •...

  • Page 47: Air Shutter Setting

    With Optional No Logs NOTICE: If sooting occurs, provide more air by opening Log Set the air shutter. PRIMO-II-48 1/8 in. 1/8 in. PRIMO-II-48ST The air shutter is set at the factory to accommodate all vent runs for natural gas installations. Propane installa- PRIMO-II-60 1/16 in.

  • Page 48: Finishing

    Finishing A. Facing and Finishing NOTICE: Surface temperatures around the appliance will become warm while the appliance is in operation. Ensure finishing materials used for all surfaces (floor, walls, WARNING mantels, etc.) will withstand temperatures up to 190°F. Risk of Fire! DO NOT apply combustible materials beyond the mini- Finish wall material may be mum clearances.
  • Page 49 Filling and Finishing Seams Finishing Instructions 1. Step 1: Fill all gaps and joints between the drywall It is important to follow the framing and finishing instruc- pieces with a general purpose chemically setting joint tions to ensure proper placement of fireplace into the sur- compound such as Durabond®...
  • Page 50 Painting If desired finishing includes a painted wall, a high-quality 100% acrylic latex paint with a high-quality latex primer base coat are recommended around the appliance to limit discoloration. Oil-based or standard acrylic paints may be more prone to discoloration due to heat exposure. Drywall Joint-Crack Prevention and Repair Drywall joints around the fireplace will be affected by ex- posure to elevated temperatures, along with other envi-...
  • Page 51 WARNING! Risk of Fire, Explosion or Asphyxiation! DO NOT use screws more than 3/4 inch long on lower access cover panel. Longer screws may penetrate gas line or damage valve or electrical components. WARNING! Risk of Injury! Risk of Explosion! Install fasteners as instructed. •...

  • Page 52: Installing A Television

    Combustible or Non-Combustible Section 2.B. NOTICE: If minimum dimensions are not met, barrier glass cannot be removed. 18 IN. MAX. INCLUDES DRYWALL MODEL X Min. Y Min. PRIMO-II-48 / PRIMO-II-48ST 48-1/8 18-1/8 PRIMO-II-60 / PRIMO-II-60ST 60-1/8 18-1/8 PRIMO-II-72 / PRIMO-II-72ST 72-1/8 18-1/8 Figure 10.7...

  • Page 53: Mantel And Wall Projections

    C. Mantel and Wall Projections Mantel Legs Or Wall Projections Extending Past The Face Of The Fireplace (Combustible or Non-Combustible) WARNING! Risk of Fire! Comply with all minimum clear- ances as specified. Mantel MUST be fastened to wall with no gaps. •...

  • Page 54: Appliance Setup

    11 11 Appliance Setup A. Remove the Shipping Materials D. Install the Refractory WARNING! Risk of Fire! Close the ball valve before in- This appliance requires refractory to be purchased at the stalling the splatter guard to prevent accidental lighting. time of the appliance purchase and installed prior to appli- Remove the splatter guard before lighting the appliance.

  • Page 55: Install Firebox Media

    • Do NOT place media in area in front of pilot No Logs With Logs • Do NOT place media in a position that they may PRIMO-II-48 20 lbs. (4 bags) 15 lbs. (3 bags) fall into area in front of pilot.
  • Page 56 WARNING MEDIA MEDIA PLACEMENT JIG PLACEMENT JIG Risk of Asphyxiation or Fumes. • Place media according to instructions. • Do NOT allow media to fall into the glass frame rail. • Do NOT place media in a position that they may fall into area between glass and firebox.
  • Page 57 NO MEDIA ALLOWED ON THIS NO MEDIA ALLOWED ON THIS BLOCKED BURNER PORTS BLOCKED BURNER PORTS PORTION OF BURNER PORTION OF BURNER Figure 11.7 Pilot Shield Media Installation Figure 11.9 Blocked Burner Ports 8. Remove the firebox glass as instructed in Section 11.I NOTICE: DO NOT place media pieces 3/4 inch or larger and adjust the media in the location that the flame on the burner.

  • Page 58: Install The Stones Kit (Optional)

    G. Install the Stones Kit (Optional) H. IFT2-ECM Setup An optional stones kit is available for use with these mod- • Detailed instructions for electrical wiring and connec- els. Install the stones as directed in the instructions in- tions are provided in Section 8. cluded with the kit.

  • Page 59: Firebox Glass

    Note: DO NOT use a power tool for this step. ommended that glass installation and removal be performed by two qualified service technicians. 5. Remove the glass retainer bar assembly. See Figure 11.13 (D). Firebox Glass Weights PRIMO-II-48 PRIMO-II-60 PRIMO-II-72 25 lbs 30 lbs 36 lbs CAUTION! Risk of Cuts! Wear protective gloves and safety glasses during installation.
  • Page 60 REMOVE SCREW REMOVE SCREW RIVNUT RIVNUT SCREW INSTALLED INTO RIVNUT SCREW INSTALLED INTO RIVNUT BRACKET (BOTH SIDES) RETAINING CHANNEL RETAINING CHANNEL Figure 11.14 Remove Screw and Install into Rivnut 5. Press glass suction cups firmly against glass and en- sure that an adequate hold has been created. Lift up, then lower the glass assembly downward toward the firebox control cavity.
  • Page 61 Replace Firebox Glass Assembly Using Suction Cups 1. Place the top of the firebox glass assembly into ap- pliance first. Tilt the bottom in toward the firebox and set glass assembly into the glass frame rail ensuring that the assembly is centered left to right. See Figure 11.16.

  • Page 62: Transition Media Tray And Transition Panels

    J. Transition Media Tray and Transition Pan- 2. Remove the screws from the glass retainer bar as- sembly’s bracket rivnuts, if they were left in from glass removal process, and set aside. Note: If appliance has been converted to Propane, en- 3.

  • Page 63: Install Transition Media

    LOCATION FOR GAS LOCATION FOR GAS TAB POSITIONED ON OUTSIDE OF TAB POSITIONED ON OUTSIDE OF VALVE VALVE SHUTOFF TOOL SHUTOFF TOOL MEDIA TRAY LEDGE MEDIA TRAY LEDGE PILOT HOLES ALIGNED PILOT HOLES ALIGNED Figure 11.20 Transition Panel Tab Position Figure 11.22 Storage Location for Gas Valve Shutoff Tool INSTALL TOP INSTALL TOP SCREW...

  • Page 64: Safesurface Barrier Glass

    Note: When barrier glass is properly placed, a 5/16 inch gap is maintained between the top of the barrier glass SafeSurface Barrier Glass Weights and the top of the appliance opening. See Figure 11.27. PRIMO-II-48 PRIMO-II-60 PRIMO-II-72 15 lbs 18 lbs...
  • Page 65 Remove SafeSurface Barrier Glass 1. Press glass suction cups firmly against glass. Ensure an adequate hold has been created. 2. Remove barrier glass retaining clips on left and right sides by gently pulling up and rotating outward. See Figure 11.26. 3.

  • Page 66: Reference Materials

    Reference Materials A. Approved Vent Components List Vent components on this list are approved for use with these models. See Vent Components document in manual bag for details, such as dimensions and effective lengths.* PRIMO-II Vent Component Required for all PRIMO-II installations with horizontal termination. HZTERM-ADP *Information not included in Vent Components document.

  • Page 67: Accessories

    B. Accessories WARNING! Risk of Fire and Electric Shock! Use ONLY Hearth & Home Technologies-approved optional accessories with this appliance. Using non-listed accessories could result in a safety hazard and will void the warranty. Contact your dealer for more information and details, such as color options, on individual accessories. A qualified service technician must install the approved accessories.

  • Page 68: Qr Codes

    C. QR Codes Instructions for PRIMO-II components that are required or shipped standard with the appliance and optional accessories can be viewed by scanning the QR codes below. Optional Accessories Required / Shipped Standard CARRY-HANDLE VENT COMPONENTS INDOOR/OUTDOOR KIT HZTERM-ADP (Required for all horizontal terminations) RC450 USER GUIDE PRIMO-HEAT-DUCT...
