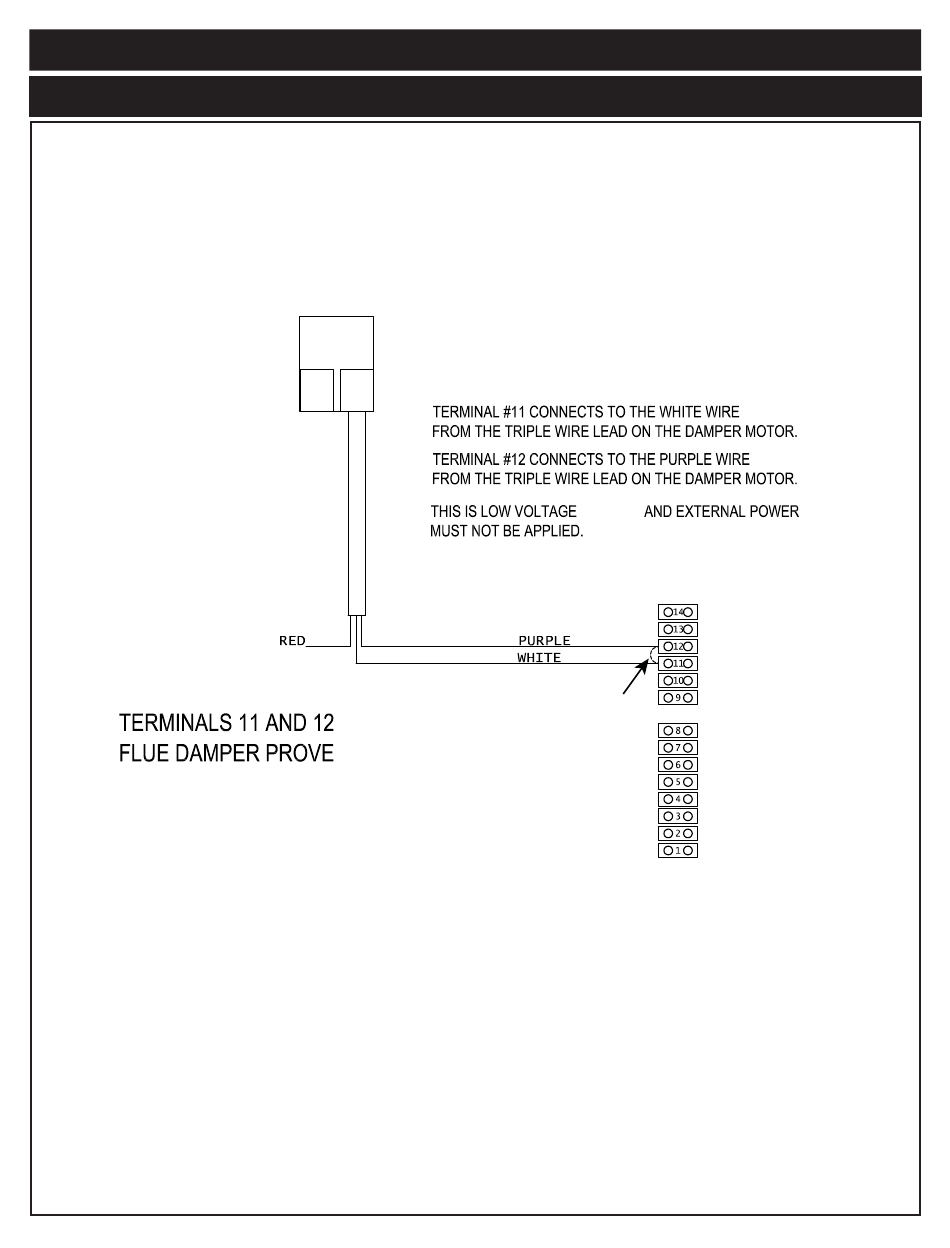

C.6 TERMINALS 11 & 12 - Flue Damper Prove
NOTE: OPTIONAL
IF A DAMPER IS NOT USED
TERMINALS 11 AND 12 HAVE A JUMPER ACROSS THEM
Figure 9C.6
Terminals 11 & 12
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 Rev. o • 4/21
40
9 - ELECTRICAL
SEE NOTE
(24 VAC)
