B. GAS AND ELECTRICAL ACCESS PANELS
Each fireplace will have four points of access for installation and service. There are access panels on the pilot side of the fireplace front, side and rear
of the fireplace. Plan in advance of the installation which access location will be used and accommodate for it in the finish work to allow for
easy access to service later. You also have access through the interior of the fireplace by removing the mesh on the burner pan in the pilot area.
There are gas and electrical gas knock-outs on the bottom if you need to come up from below the fireplace.
GLASS
GAS ACCESS 3 [76]
1-25/32 [45]
1-17/32 [39]
4-3/4 [121]
GAS AND ELECTRICAL KNOCK-OUTS
2X 5-13/32 [137]
2X 2-29/32 [74]
2X 3-31/32 [101]
2X 7-15/32 [190]
2X 8-23/32 [222]

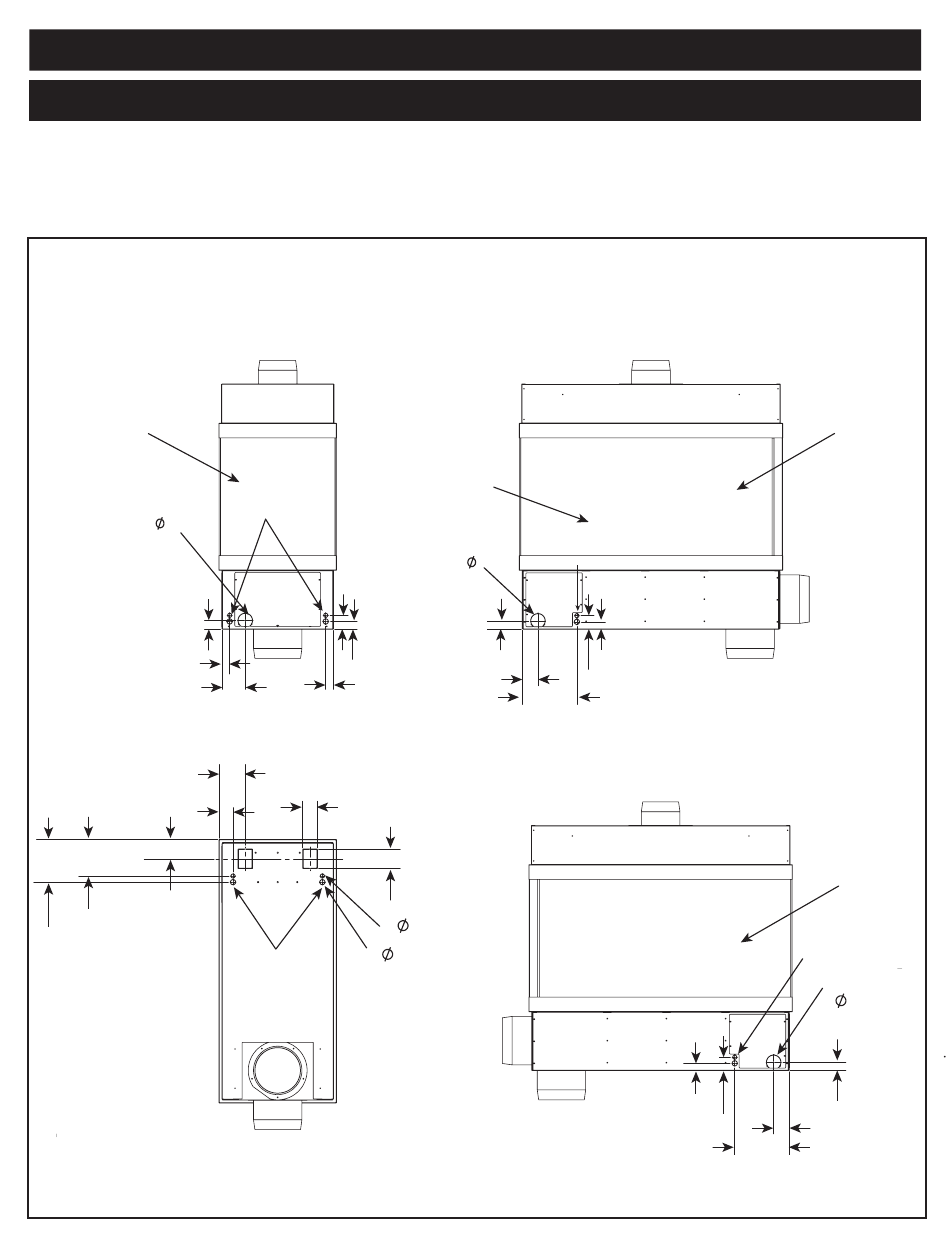

Figure 8 Access Panel Dimensions
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 Rev. o • 4/21
7 - GAS LINE SPECIFICATIONS & ACCESS
MEASUREMENTS = INCHES [mm]
SIDE ACCESS PANEL
(PILOT SIDE)
See Valve and Electrical
Access in the Maintenance
Section for details on access
through the burner.
ELECTRICAL
ACCESS
GAS ACCESS
2X 2-27/32 [72]
2X 1-19/32 [41]
1-19/32 [41]
BOTTOM VIEW
3 [76]
4 [102}
6X
6X
ELECTRICAL
ACCESS
FRONT ACCESS PANEL VIEW
ELECTRICAL ACCESS
3 [76]
1-11/16 [43]
3-7/32 [82]
BACK ACCESS PANEL VIEW
7/8 [22]
1-3/32 [28]
1-1/2 [38]
2-3/4 [70]
11-1/8 [283]
1-1/2 [38]
2-3/4 [70]
11-1/8 [283]
GLASS
GLASS
ELECTRICAL ACCESS
GAS ACCESS
3 [76]
1-1/2 [38]
3-7/32 [82]
