IN-LINE POWERVENT PREPARATION - PVI-67
Perform the following steps when installing the PVI-67 on
six foot and seven foot models.
1. Attach the provided 10 inch B-Vent collar to the intake
side of the powervent. The intake side is located
opposite the fan motor as shown in Figure 8A.6. The
10 inch B-Vent collar is packaged separately from the
powervent. See Figure 8A.7.
2. Note the silhouette circle printed on the intake side
of the powervent. The pre-drilled screw holes within
the circle will be matched with the holes on the intake
collar of the base plate. See Figure 8A.8.
3. Place the intake collar base plate onto the silhouette,
matching up the holes as shown in Figure 8A.9.
Fasten the base plate to the silhouette using five self-
tapping screws.
4. Add the rope gasket included with the kit to the outlet
side of the inline powervent.
5. An adapter to increase from eight inch pipe to ten
inch pipe is required on the outlet side of the in-line
powervent. The adapter is included in the PVI-67
kit. See Figure 8A.10. Connect the adapter directly
to the eight inch outlet collar of the in-line powervent.
Connect the ten inch exhaust B-Vent to the collar and
continue the vent run.

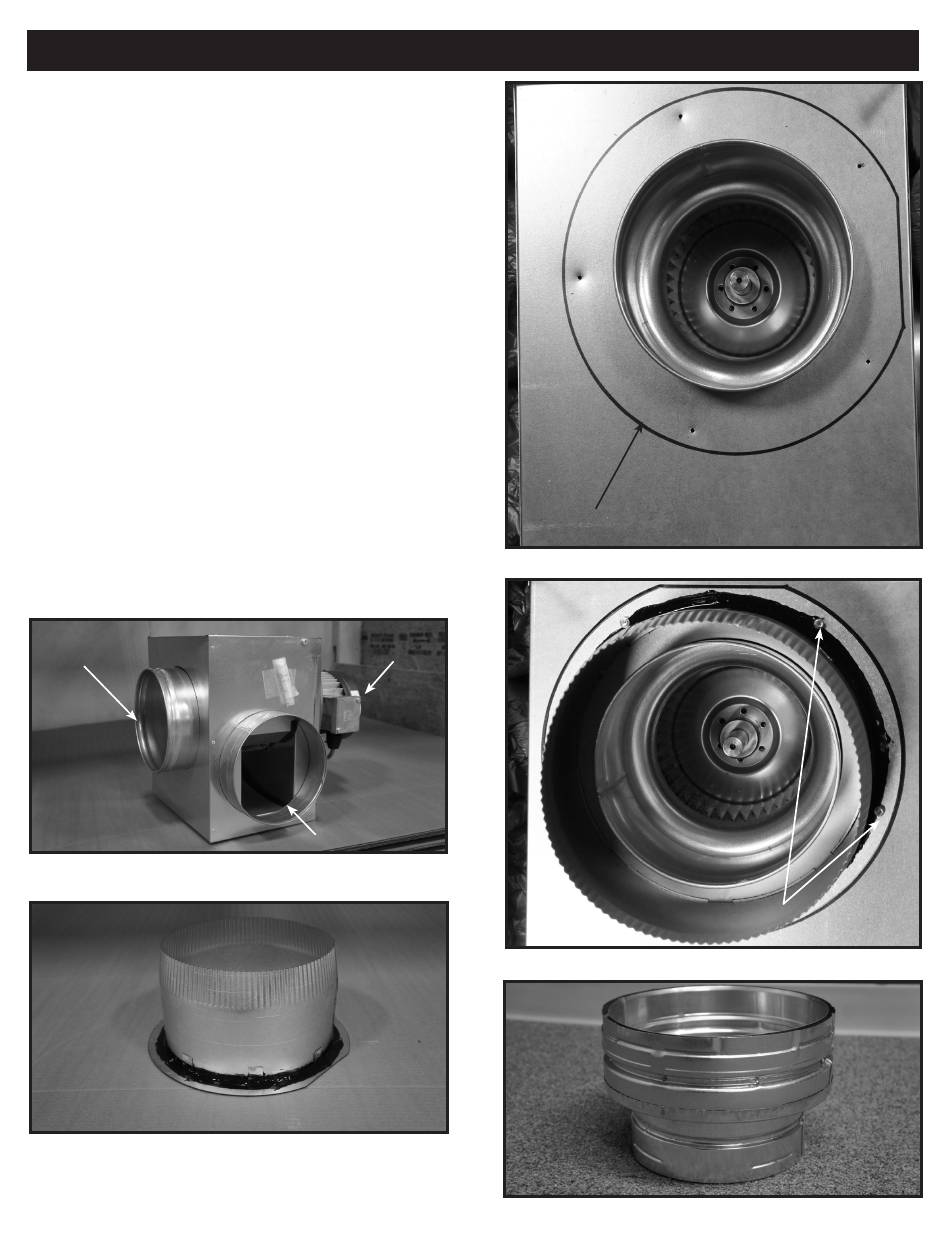

INTAKE SIDE INTAKE SIDE
Figure 8A.6 In-Line Powervent (PVI-67)
Figure 8A.7 Ten Inch B-Vent Collar
Heat & Glo • FDN-4-PIER, FDN-5-PIER, FDN-6-PIER, FDN-7-PIER Installation Manual • 16400-9803 Rev. o • 4/21
FAN MOTOR FAN MOTOR
OUTLET OUTLET
SILHOUETTE CIRCLE SILHOUETTE CIRCLE
Figure 8A.8 Silhouette Circle on Intake
Figure 8A.9 Base Plate Fastened to Intake
Figure 8A.10
SCREWS (5 TOTAL) SCREWS (5 TOTAL)
