The cycle-to-cycle jitter can be seen in
cycle on the CQ line while the scope is triggered on the first cycle. With infinite persistence enabled, the
transition edge widens to a show a jitter of approximately 50 ns. Compared to the rise and fall times, as well as
the cycle timing, this amount of jitter is neglect able and does not degrade the system performance.
SLLU357 – MAY 2023
Submit Document Feedback
Figure 4-11 which shows a zoomed in view of the second communication

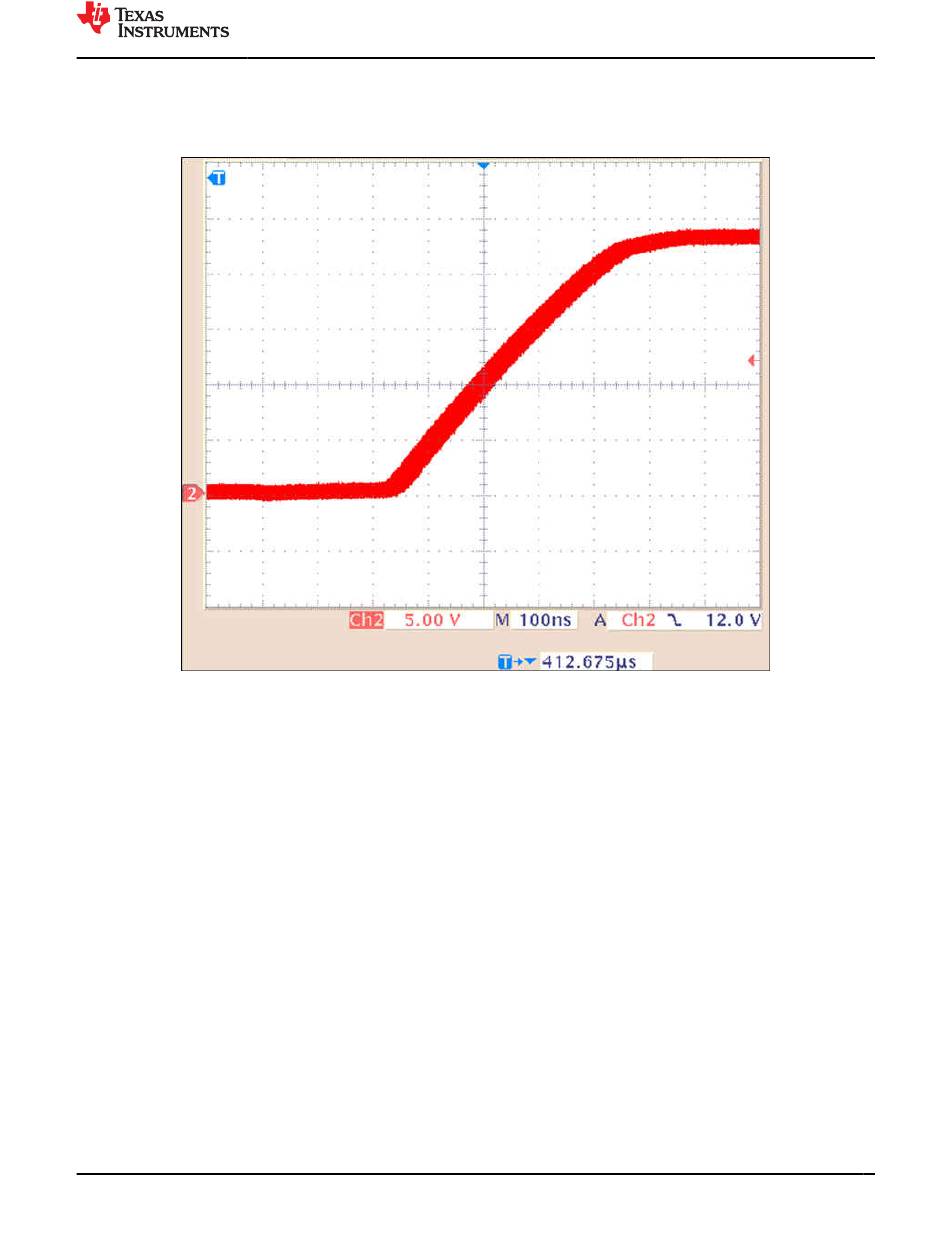

Figure 4-11. Master Cycle Jitter
