This user's guide describes operational use of the TLC6946 evaluation module (BOOSTXL-TLC6946EVM)
as a reference for engineering demonstration and evaluation of the TLC6946 16-channel, 32-multiplexing,
16-bit ES-PWM constant-current LED driver. Included in this user's guide are setup instructions, a
schematic diagram, printed circuit board (PCB) layout, and a bill of materials (BOM).
...................................................................................................................
1
1.1
1.2
2
2.1
2.2
2.3
2.4
....................................................................................................................
3
4
5
5.1
5.2
1
BOOSTXL-TLC6946EVM Board
2
3
1
2
3
4
Trademarks
LaunchPad is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
SLVUBE8 - May 2018
Submit Documentation Feedback
..............................................................................................................
..........................................................................................................
.....................................................................................................
..................................................................................
..........................................................................................................
...........................................................................................................
..............................................................................................................
.................................................................................................................
............................................................................................
............................................................................................................
......................................................................................................
...........................................................................................
..........................................................................................
.....................................................................................
...............................................................................................................
...............................................................................................................
....................................................................................
Copyright © 2018, Texas Instruments Incorporated
TLC6946 Evaluation Module
Contents
List of Figures
List of Tables
...............................................................................
User's Guide
SLVUBE8 - May 2018
TLC6946 Evaluation Module
2
2
2
3
3
3
3
3
4
5
6
6
7
3
5
6
4
4
4
7
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOOSTXL-TLC6946EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments BOOSTXL-TLC6946EVM

  • Page 1: Table Of Contents

    SLVUBE8 – May 2018 TLC6946 Evaluation Module This user’s guide describes operational use of the TLC6946 evaluation module (BOOSTXL-TLC6946EVM) as a reference for engineering demonstration and evaluation of the TLC6946 16-channel, 32-multiplexing, 16-bit ES-PWM constant-current LED driver. Included in this user’s guide are setup instructions, a schematic diagram, printed circuit board (PCB) layout, and a bill of materials (BOM).
  • Page 2: Introduction

    7-bit (128 steps) global brightness control from 0.3 mA to 25 mA. The BOOSTXL-TLC6946EVM uses three TLC6946 devices to drive 16 RGB LEDs, each device controlling one color. Moreover, the EVM provides the function to verify the LED-Open Detection (LOD) and IREF Resistor Short Protection (ISP).
  • Page 3: Test Setup And Results

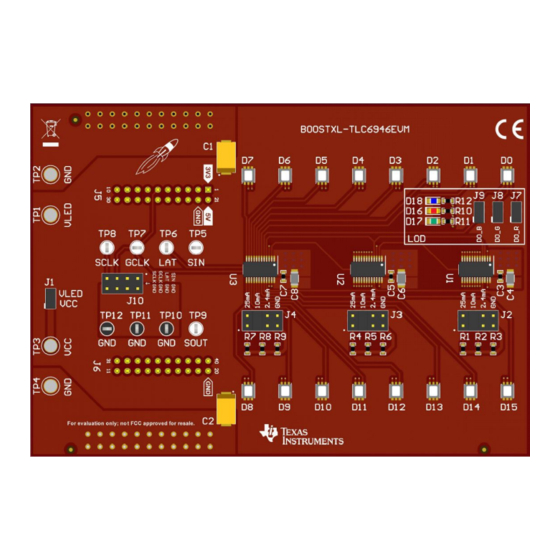

    Test Setup and Results www.ti.com Test Setup and Results This section describes the BOOSTXL-TLC6946EVM connectors, test points, and jumpers. BOOSTXL-TLC6946EVM Board Figure 1 displays the EVM board. Figure 1. BOOSTXL-TLC6946EVM Board Connectors The EVM has the following connectors: • TP1 (VLED): Input power supply for VLED •...
