EVM User's Guide: BOOSTXL-LMG2100-MD
BOOSTXL-LMG2100-MD Evaluation Module
Description
The BOOSTXL-LMG2100-MD Evaluation Module,
also referred to as "EVM" throughout this document,
implements a GaN inverter with precision in-line
shunt-based phase current sensing for accurate
control of precision drives such as servo drives.
The EVM offers a TI BoosterPack
interface to connect to a C2000
development kit for easy performance evaluation.
For more test results and other technical information
please refer to TIDA-010936.
Applications
•
Robotics (cobot/AGV/humanoid robot)
•
Servo drives and motion control
•
Computer numerical control (CNC) drives
•
Non-military drone

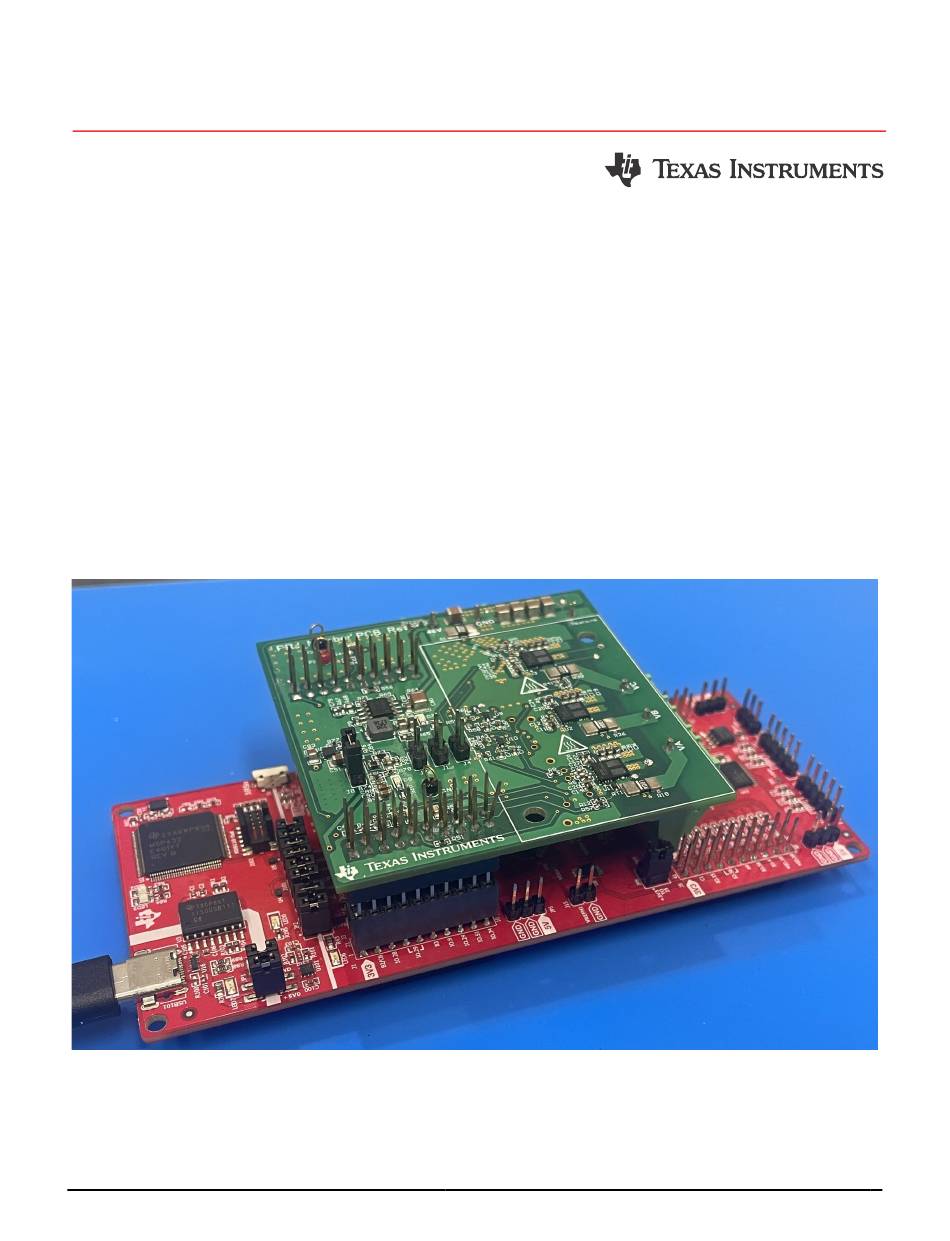

BOOSTXL-LMG2100-MD Board (Green) Installed on BOOSTXL Control Board (Red)
SNOU216 – FEBRUARY 2025
Submit Document Feedback
™
compatible
™
MCU LaunchPad
™
Copyright © 2025 Texas Instruments Incorporated
Features
•
Wide input voltage range 12V to 60V
•
Compatible for LMG2100R044 and LMG2100R026
•
GaN half-bridge power stage simplifies PCB layout
and reduces parasitic inductances for optimized
switching performance
•
Compare with MOS solution, TI GaN reduces
>50% size
•
Precision in-line phase current sensing with 1mΩ
shunt (for theoretical ±33A full-scale range)
•
This board can run up to 15.6A_RMS
(LMG2100R044) or 24A_RMS (LMG2100R026)
without heatsink, and is heatsink compatible
•
TI BoosterPack compatible interface with 3.3V I/O
for easy performance evaluation with C2000 MCU
LaunchPad development kit
BOOSTXL-LMG2100-MD Evaluation Module
Description
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments BOOSTXL-LMG2100-MD
Summary of Contents for Texas Instruments BOOSTXL-LMG2100-MD
- Page 1 Servo drives and motion control LaunchPad development kit • Computer numerical control (CNC) drives • Non-military drone BOOSTXL-LMG2100-MD Board (Green) Installed on BOOSTXL Control Board (Red) SNOU216 – FEBRUARY 2025 BOOSTXL-LMG2100-MD Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 2: Kit Contents
MOSFET motor drives. The EVM includes mounting holes for a heatsink and is able to be used with or without a heatsink. 1.2 Kit Contents The kit includes the BOOSTXL-LMG2100-MD motor drive board. The user will need to order the TMS320F280039C control card and a 48V low-voltage servo motor (example here). -
Page 3: Device Information
InstaSPIN-FOC™ software. An example firmware based on the TMS320F280039C LaunchPad has been provided to evaluate the BOOSTXL-LMG2100-MD design with a 48V low-voltage servo motor. 1.4 Device Information The main ICs used in this design are described below: •... - Page 4 Hardware www.ti.com 2 Hardware 2.1 BOOSTXL-LMG2100-MD PCB Overview Figure 2-1. BOOSTXL-LMG2100-MD Block Diagram BOOSTXL-LMG2100-MD Evaluation Module SNOU216 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 5 Hardware Figure 2-2. BOOSTXL-LMG2100-MD Block Diagram 2.2 Heatsink The BOOSTXL-LMG2100-MD motor drive includes holes for heat sink mounting (heat sink not included). The measurement for hole placements are shown in Figure 2-4. The holes have a diameter of 3.175mm. The board was tested using the S05MZZ14 from Alphanovatech.
-
Page 6: Jumper Information
2-3 Pin: Enable GaN OCP D1(Red) Overcurrent fault report Short circuit D7(Green) 5V power rail 5V on board D8(Green) 3.3V power rail 3.3V on board BOOSTXL-LMG2100-MD Evaluation Module SNOU216 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... -
Page 7: Header Information
When the R48 and R47 is populated, the C2000 LaunchPad will be powered through GaN board, should remove both JP2 jumpers in F280039C Launchpad. 2.4 Header Information The BOOSTXL-LMG2100-MD interface is designed to work with TI BoosterPack standard. The BOOSTXL- LMG2100-MD can connect to the LAUNCHXL-F280039C board on either set of headers: •... - Page 8 Make sure the target configuration TMS320F280039C_LaunchPad.ccxml is active, if not, right click TMS320F280039C_LaunchPad.ccxml and click Set as Active Target Configuration. Figure 3-1. Select the Correct Build Configurations BOOSTXL-LMG2100-MD Evaluation Module SNOU216 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 9 Some minor software modifications are needed for the Universal Motor Control Lab software example to support LAUNCHXL-F280039C with BOOSTXL-LMG2100-MD. See the following steps to make the modifications. 1. Go to “src_board/hal.c”, comment out the definition for GPIO23 (Line 3606–Line 3609).
- Page 10 The default PWM switching frequency is 15kHz. This section describes how to change the PWM frequency and deadtime to further evaluate the GaN device. BOOSTXL-LMG2100-MD Evaluation Module SNOU216 – FEBRUARY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 11 Under sensorless FOC method with FAST as the speed estimator, the below combinations have been verified at TI lab. Control Loop Frequency PWM Switching Frequency (USER_M1_NUM_TICKS_PER_I Deadtime (ns) (kHz) SK_TICK value) 40kHz (1) 30kHz (2) 40kHz (2) 40kHz (3) SNOU216 – FEBRUARY 2025 BOOSTXL-LMG2100-MD Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 12: Software Guide
MotorControl_SDK folder then follow: C2000Ware_MotorControl_SDK_x_xx_xx_xx → solutions → boostxl_3phganinv → docs → sluubp1a_BOOSTXL-3PhGaNInv Evaluation Module User Guide (Rev. A).pdf. This guide goes through the software for the BOOSTXL-LMG2100-MD. There is also helpful information in the Motor Control SDK Universal Project and Lab. - Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 14 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 15 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 16 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 17 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 18 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
