The BOOSTXL-TMP107 BoosterPack™ (see
accuracy temperature sensors to your LaunchPad™ development kit. Two of the three temperature
sensors can be disconnected from the main board, and strung together in a chain using 3-conductor
wiring.
SBOU174 – June 2017
Submit Documentation Feedback
BOOSTXL-TMP107 User's Guide
Figure
1) is an easy-to-use plug-in module that adds high-

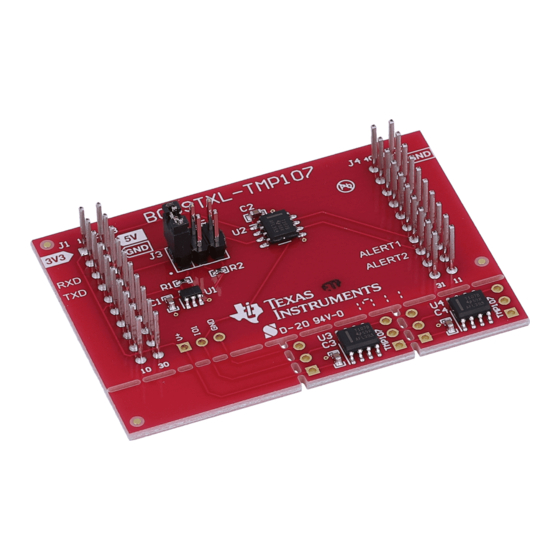

Figure 1. BOOSTXL-TMP107
Copyright © 2017, Texas Instruments Incorporated
User's Guide
SBOU174 – June 2017
BOOSTXL-TMP107 User's Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments BOOSTXL-TMP107
Summary of Contents for Texas Instruments BOOSTXL-TMP107
-
Page 1: Boostxl-Tmp107

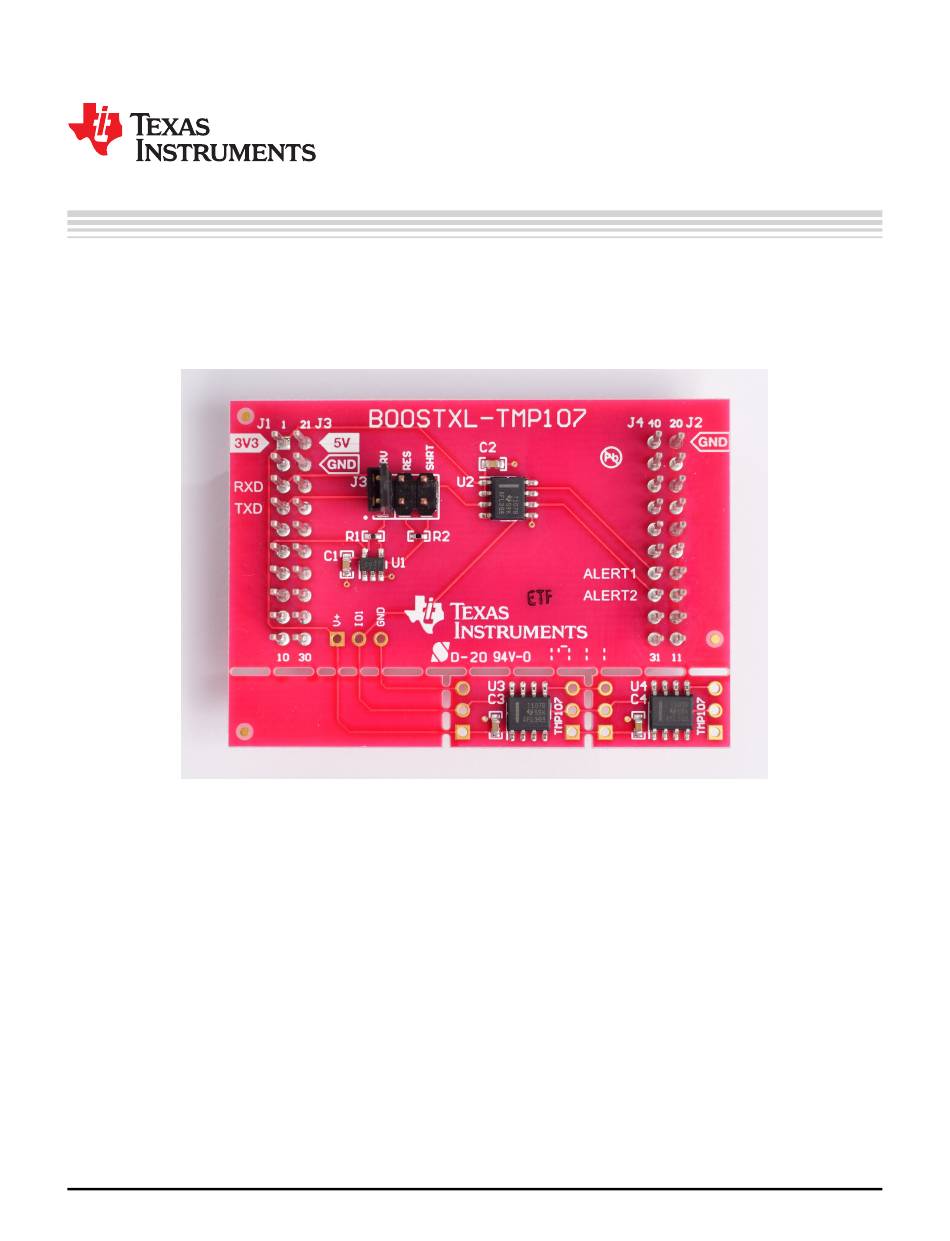

LaunchPad™ development kit. Two of the three temperature sensors can be disconnected from the main board, and strung together in a chain using 3-conductor wiring. Figure 1. BOOSTXL-TMP107 SBOU174 – June 2017 BOOSTXL-TMP107 User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 2: Table Of Contents
Source File and Folders Trademarks BoosterPack, LaunchPad, MSP430Ware, E2E, Code Composer Studio are trademarks of Texas Instruments. All other trademarks are the property of their respective owners. BOOSTXL-TMP107 User's Guide SBOU174 – June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 3: Getting Started
1× BOOSTXL-TMP107 1.2.2 Software Examples • TMP107 Library Test Bench • OutOfBox_MSP-EXP430FR6989 • OutOfBox_MSP-EXP430F5529LP Hardware Figure 2 is an overview of the BOOSTXL-TMP107 hardware. TMP107 Pin Header BOOSTXL-TMP107 Select Comm Modes Temperature Sensor Driver First in Chain Resistor Short SN74LVC1G07... -
Page 4: Hardware Features
This method has lower cost and complexity than the first method. This method works with all UART hosts, and works well with MSP430 in the BOOSTXL-TMP107 examples. To use this mode, connect the shunt across pins 3 and 4. -
Page 5: J3 Header
2.1.4 Breakable PCB The BOOSTXL-TMP107 PCB features perforations that allow sections to be separated. The second and third TMP107 devices (U3 and U4) may be removed for remote temperature sensing. These modules only require three-conductor cabling between them and the main BoosterPack module. The TMP107 features a push-pull output capable of sourcing or sinking up to 1 mA. -
Page 6: Power
2.3.2 Software All design files including TI-TXT object-code firmware images, software example projects, and documentation are available in the LaunchPad-specific software folders. To see which LaunchPads feature BOOSTXL-TMP107 examples, check the BOOSTXL-TMP107 download page. Hardware Change Log Table 1 lists the hardware change log. -
Page 7: Software Examples
Generate command data to be sent by the bus master to the TMP107 • Convert temperature data to Celsius • Encode and decode bus addresses SBOU174 – June 2017 BOOSTXL-TMP107 User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 8: Outofbox_Msp-Exp430Fr6989
Hardware abstraction layer for TMP107 library hal_tmp107.h Hardware abstraction layer header for the TMP107 library main.c Main source file of the demonstration tmp107.c TMP107 library tmp107.h TMP107 library header BOOSTXL-TMP107 User's Guide SBOU174 – June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 9: Boostxl-Tmp107 And Fr6989
TMP107 devices. This temperature data is displayed sequentially on the LCD using the battery indicator bars to indicate (in binary) the current device. Figure 7. BOOSTXL-TMP107 and FR6989 SBOU174 – June 2017 BOOSTXL-TMP107 User's Guide Submit Documentation Feedback Copyright ©... -
Page 10: Outofbox_Msp-Exp430F5529Lp
This temperature data is then printed to the MSP application UART, and LED1 flashes to indicate how many TMP107 devices were found. temp 0: 24.000000 temp 1: 23.984375 temp 2: 24.234375 Figure 8. Example Output from MSP Application UART BOOSTXL-TMP107 User's Guide SBOU174 – June 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 11: Additional Resources
TI Cloud Tools collection, the TI Resource Explorer Cloud is instantly accessible at dev.ti.com. TI E2E™ Community Search the TI E2E™ forums at http://e2e.ti.com. If you cannot find your answer, post your question to the community. SBOU174 – June 2017 BOOSTXL-TMP107 User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated... -
Page 12: Schematics
