Comtech EF Data XTRT-400C-BUC Operation And Installation Manual page 85

Events

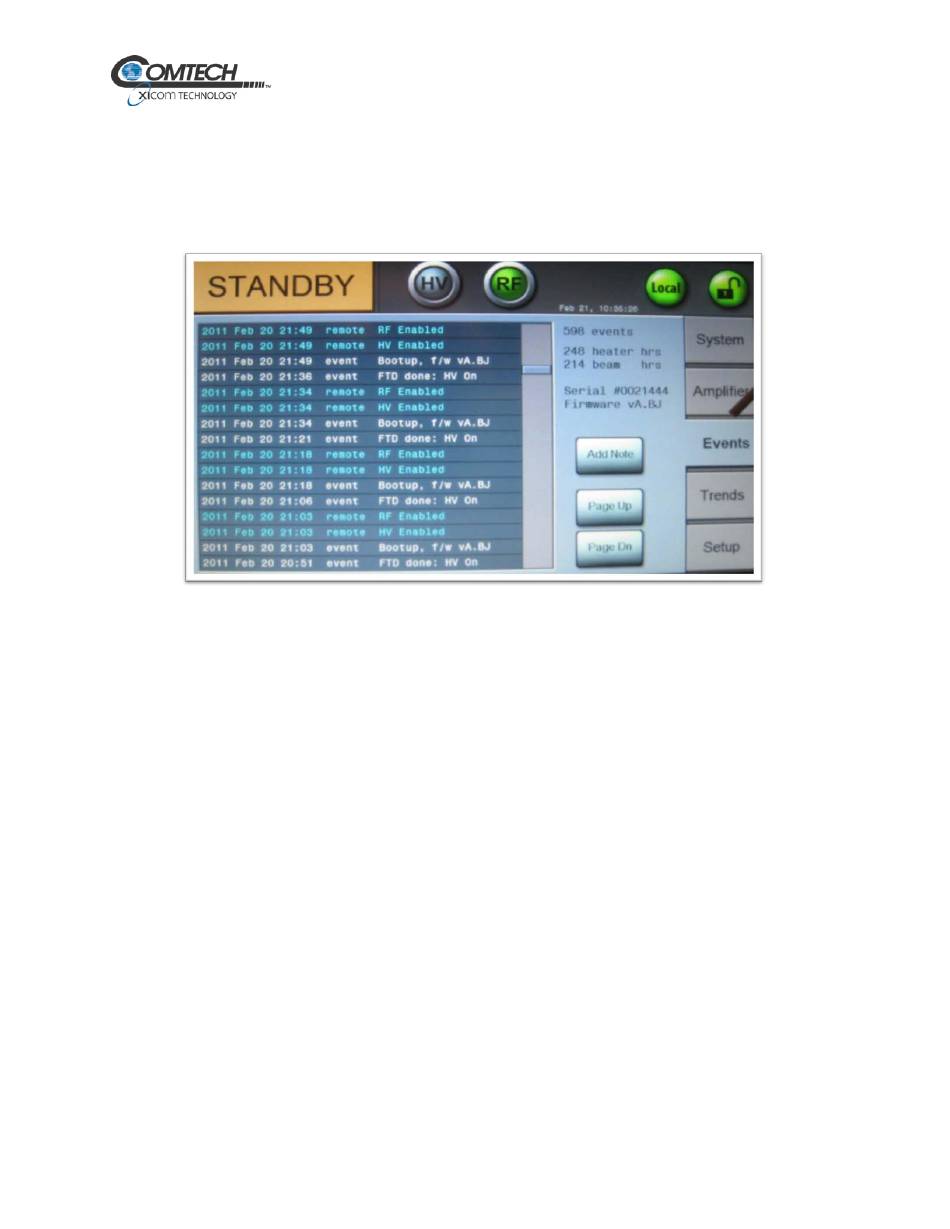

Figure 24- Events Screen
Events Tab
This screen displays the last 1000 events that have taken place in the amplifier. It also
has the "elapsed time meter (heater and beam hour)" the serial number and the main
Firmware revision. The Event history can be scrolled through using the adjust knob or
can be paged through using the scroll bar to the right of the log. The time and date
stamp is derived from the time and date setting described in the Setup Tab discussed
later in this chapter. Touching the event text area will toggle the time stamp between
showing years and seconds. Should a significant event have taken place, a feature has
been implemented to provide "points of interest" or notes around an individual event.
The following Figures 22 and23 provide the sequence for adding notes.
MNC-0400-071
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
Page 25 of 53
Operation
Revision 4
