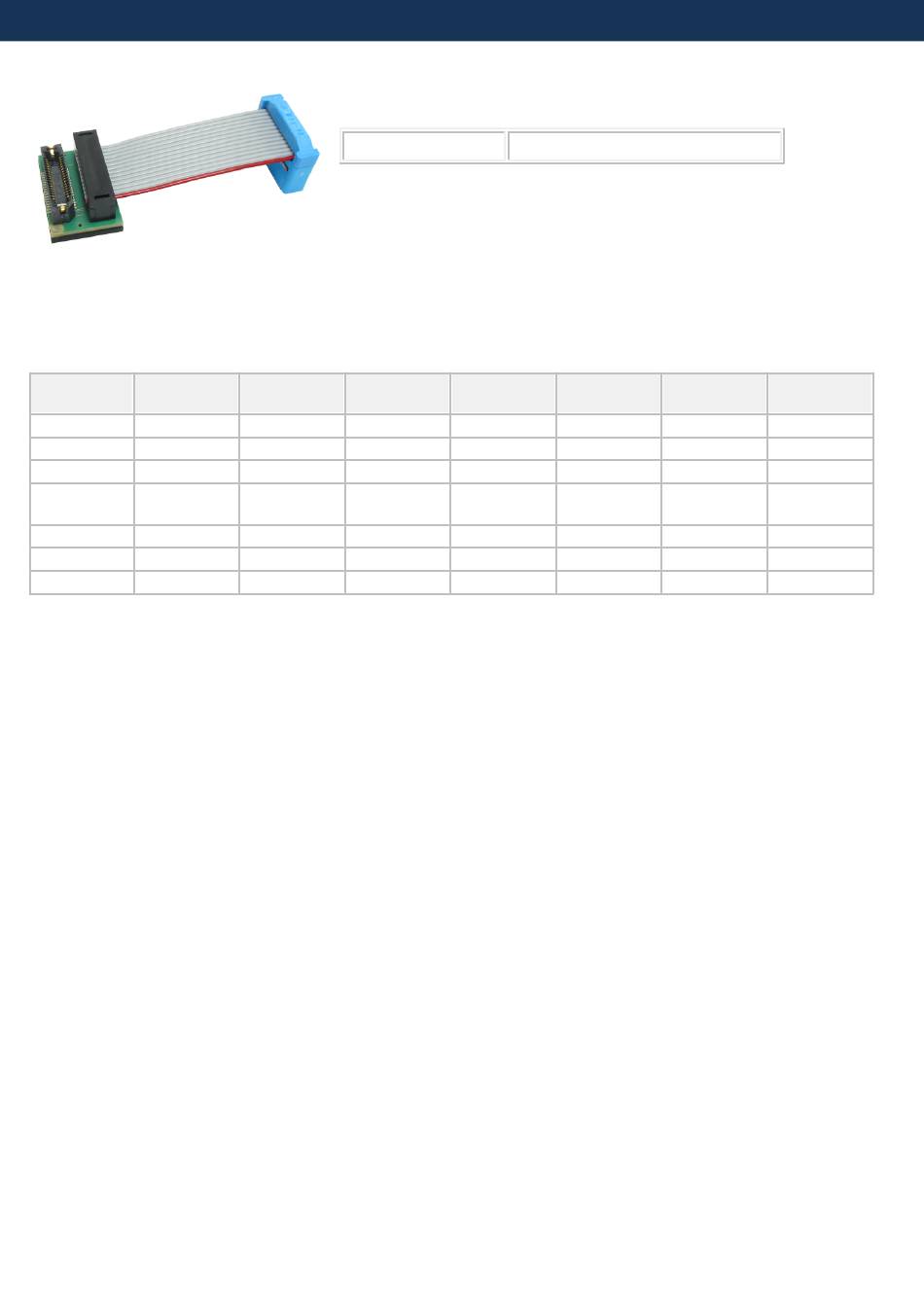

14-pin 2.54 mm LPD Adapter

Adapter must be ordered separately to connect to the target featuring 14-pin 2.54mm pitch LPD
target debug connector. This adapter can be used in conjunction with the iC6000 DTM
Aurora/LPD module (IC60024-1) and RH850 Aurora Active Prove (Ordering code IC57176).
The following pinout is valid on the target side:
Signal Signal
Direction Description
O LPD
O JTAG
I LPD
O LPD
O
I LPD
I/O Reset
Signal Direction is described from the BlueBox perspective.
Ordering code
Signal Pin
LPDCLK 1
TRST 3
LPDO 5
LPDI 7
Reserved 9
LPDCLKOUT 11
RESET 13
14-pin 2.54mm RH850 target pinout
IASAM34RH850PIN14
Pin Signal
2 GND
4 FLMD0
6 FLMD1
8 Vref
10 NC Not Connected
12 GND
14 GND
Signal Signal
Description Direction
Ground
Flash Mode O
Flash Mode
Reference
I
Voltage
Ground
Ground
