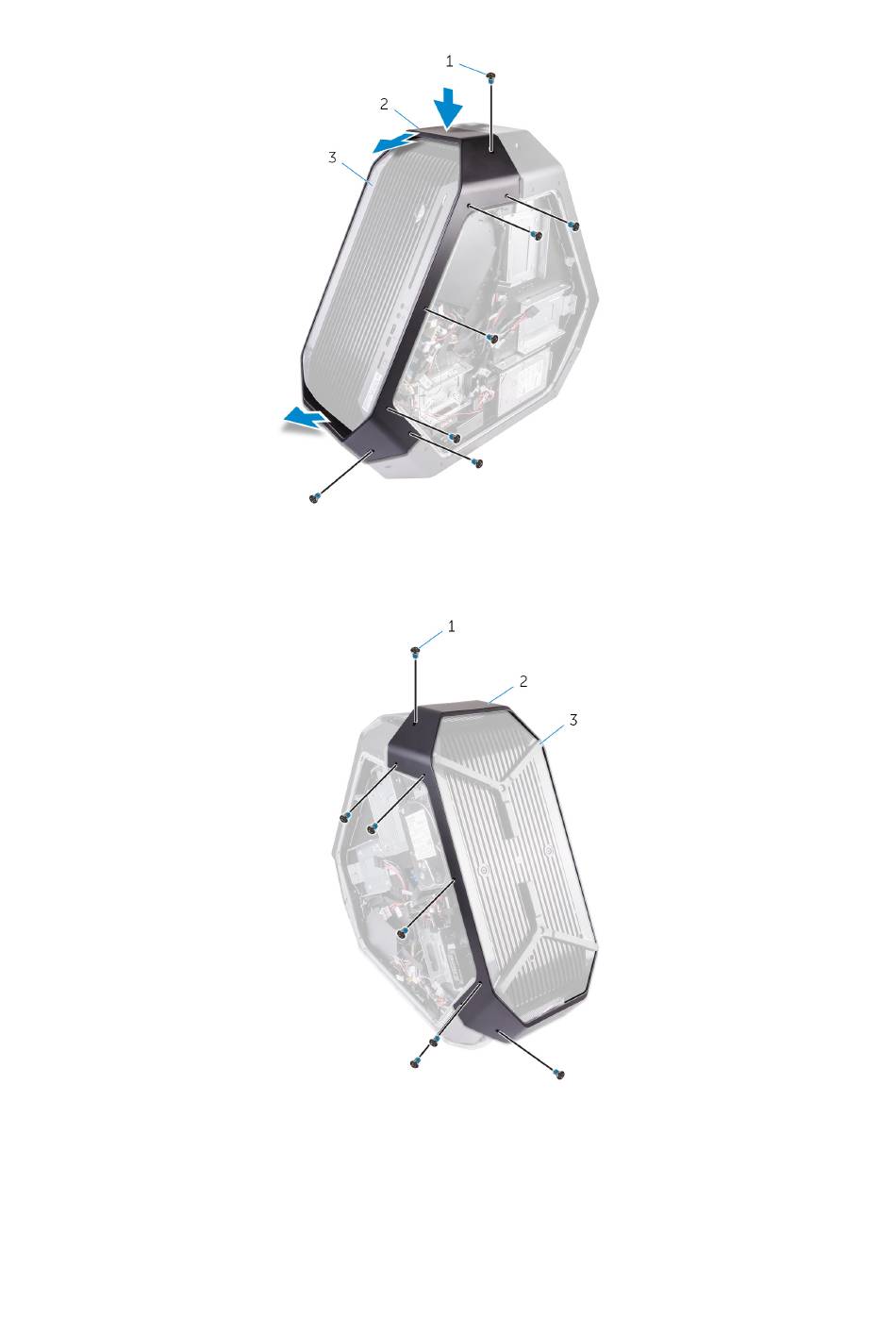

a. screws (7)
b. front-handle bar
c. chassis
7. Remove the seven screws (#6-32x6.5) that secure the bottom handle-bar to the left side of the chassis.
a. screws (7)
b. bottom-handle bar
c. chassis
8. Remove the seven screws (#6-32x6.5) that secure the bottom handle-bar to the right side of the chassis.
9. Press the bottom-handle bar to release the securing tab and remove the bottom-handle bar.
93
