5. tab

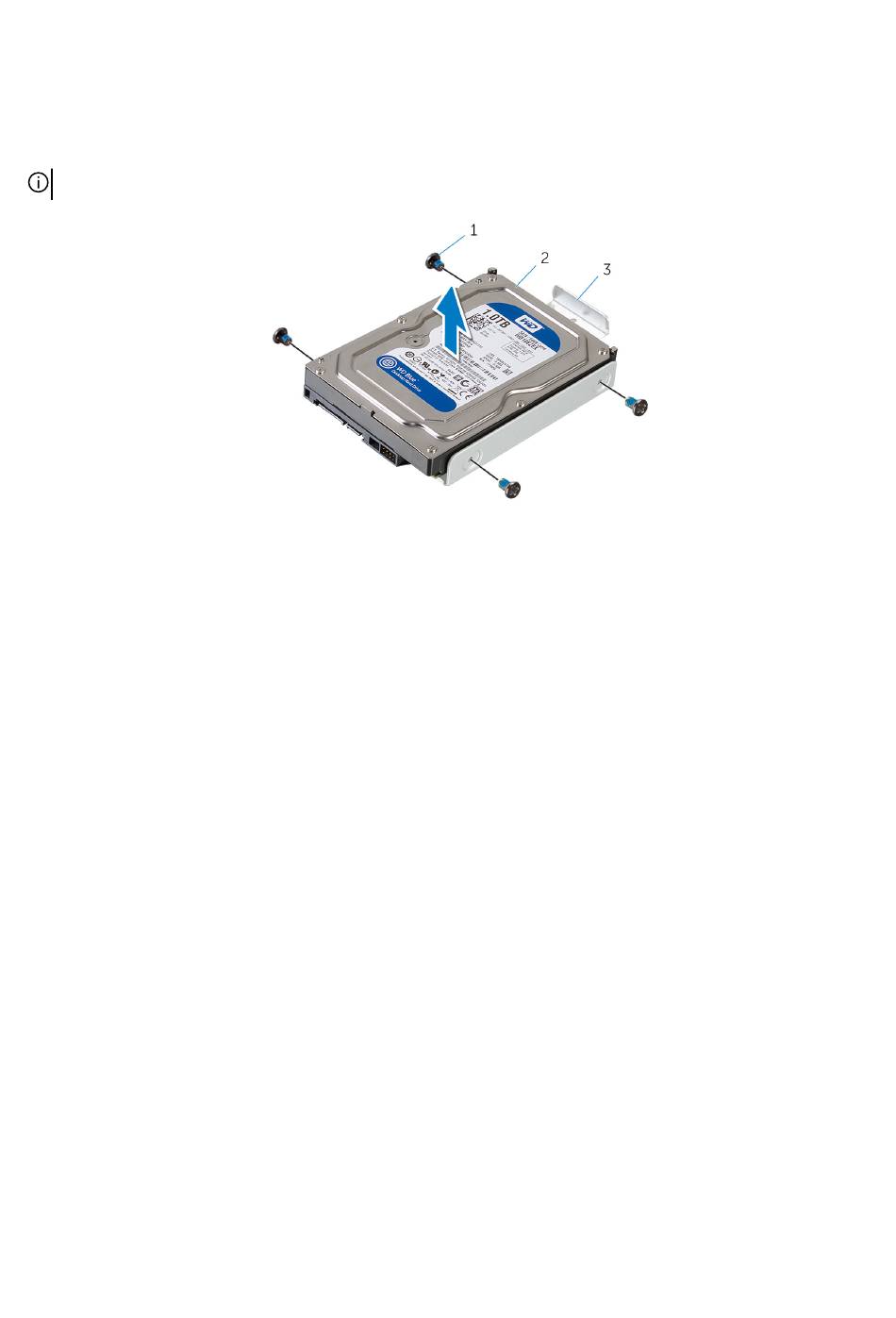

5. Remove the four screws (#6-32x3.6) that secure the hard-drive bracket to the hard drive.
6. Slide and remove the hard drive from the hard-drive bracket.
NOTE: Repeat step 2 to step 6 to remove any other hard drives (HDD2 and HDD3) installed in your computer.
a. screws (4)
b. hard drive
c. hard-drive bracket
30
6. hard-drive assembly (HDD1)
