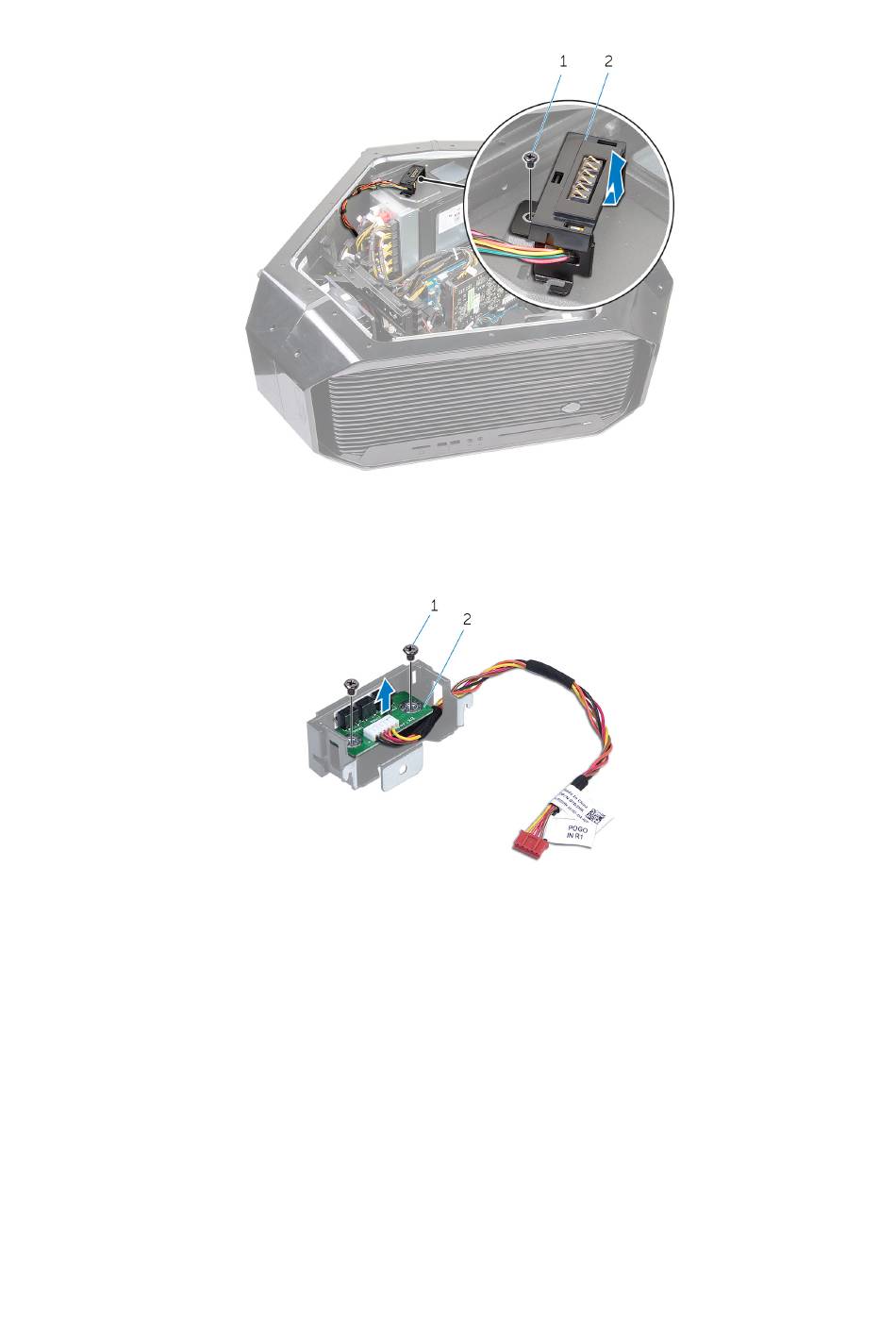

a. screw
b. left AlienFX side-panel connector assembly
7. Remove the two screws (#6-32x6) that secure the AlienFX side-panel connector to the bracket.
8. Remove the cable routing through the slot on the bracket and lift the left AlienFX side-panel connector off the bracket.
a. screw
b. left AlienFX side-panel connector
39
