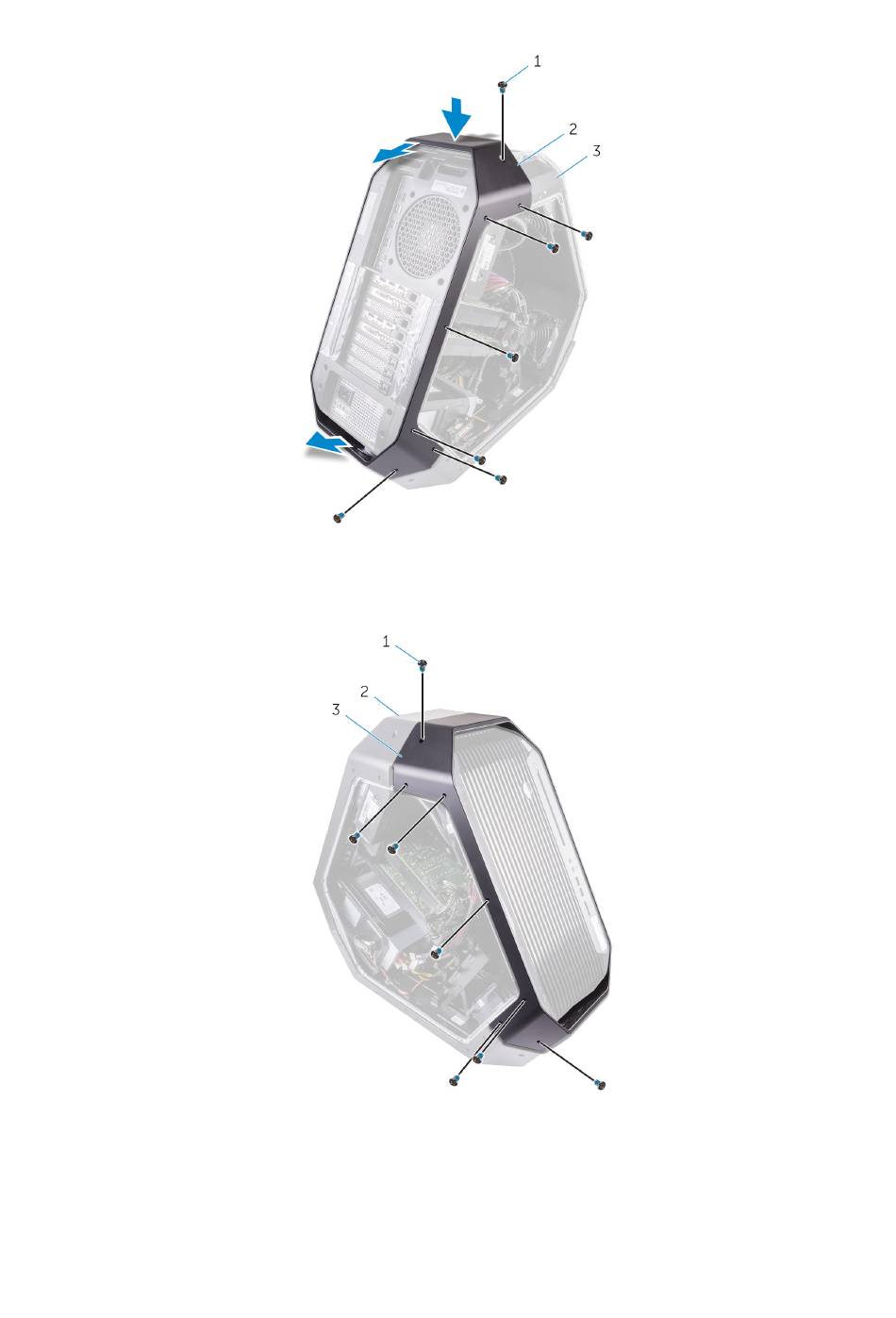

a. screws (7)
b. rear-handle bar
c. chassis
4. Remove the seven screws (#6-32x6.5) that secure the front handle-bar to the left side of the chassis.
a. screws (7)
b. chassis
c. front-handle bar
5. Remove the seven screws (#6-32x6.5) that secure the front handle-bar to the right side of the chassis.
6. Press the front-handle bar to release the securing tab and remove the front-handle bar.
92
