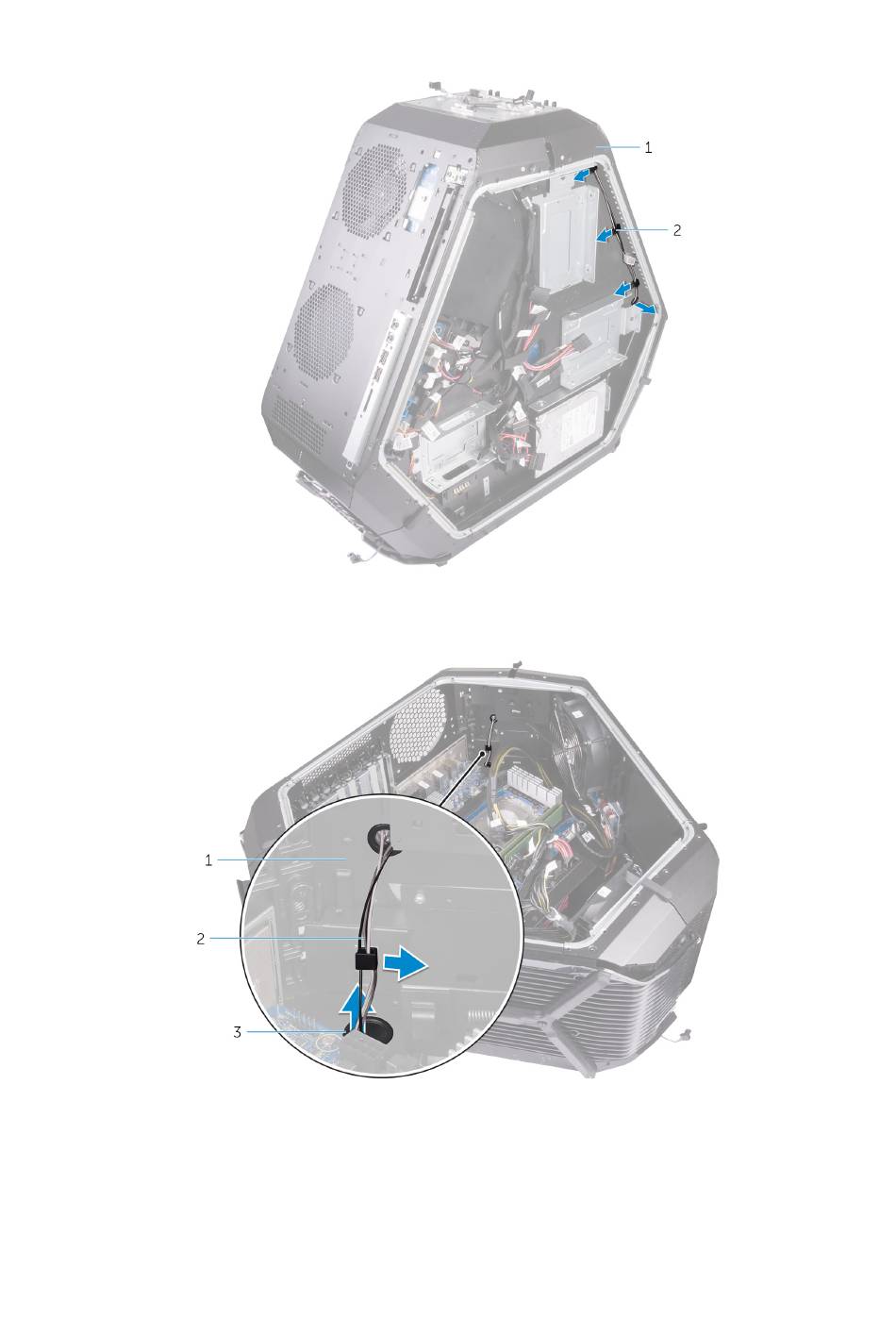

3. Remove the antenna cables from the routing guides on the chassis.
a. chassis
b. routing guides
4. Remove the antenna cables from the routing guide on the chassis and slide the antenna cable through the slot on the chassis.
a. antenna cables
b. routing guide
c. slot
5. Peel the tape that secures the antenna cables to the chassis.
6. Remove the six screws (#6-32x6) that secure the antenna cables to the chassis.
7. Pull the antenna cables from the slot on the chassis and remove.
118
