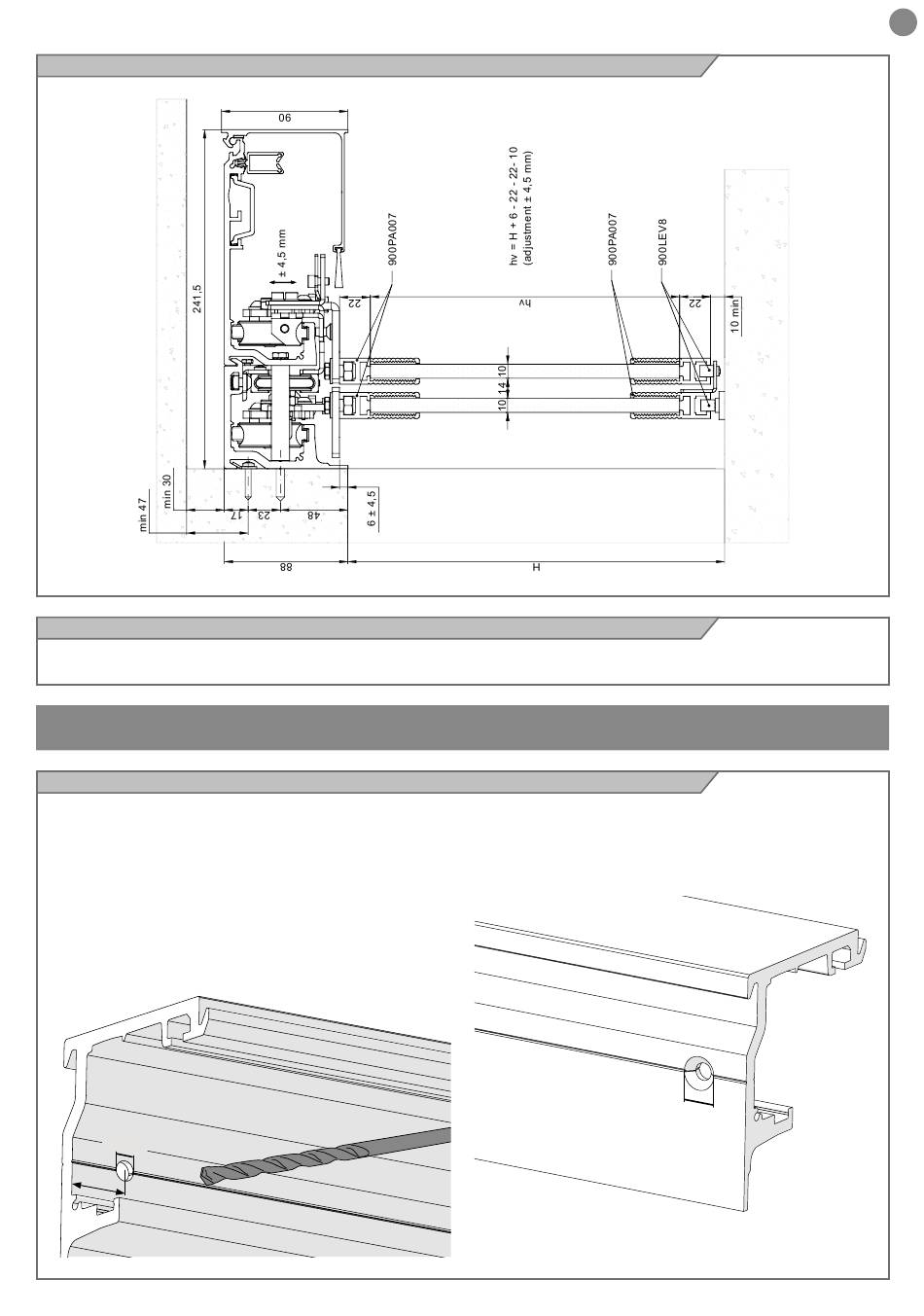

4.2 - Dimensions installation with glass panels - Side View

4.3 - Installation with breakout profile

See the relative instructions of the KITANTSF2C certified KIT.

5 - FIXING INSTRUCTIONS

5.1 - Preparation of profiles

The beams must be prepared before proceeding with the
installation. Take both beams (telescopic and front), remove the
limit switches, remove the sliding track and the anti-vibration
profile to avoid damage.
Take the telescopic beam and drill the Ø6.5mm holes for
positioning of the columns: use the reference line and drill 20mm
from the edge. In case of double opening add two more holes in
the "Lc" position indicated in the installation diagrams. Drill holes in
the same position on the front beam profile.
Countersink the holes in the rear of the beam exclusively of the
6 , 5 m m
2 0 m m
telescopic beam profile up to an external diameter of the flaring
of 12.5mm: check that the head of the countersunk screw M6x20
does not protrude from the profile, otherwise increase the flaring.
1 2 , 5 m
m
