MANUAL
ENGLISH
LED Octostrip Set MKII 100 cm
V1
Ordercode: 42232
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Octostrip Set MKII 100 cm and is the answer not in the manual?

Questions and answers

Related Manuals for SHOWTEC LED Octostrip Set MKII 100 cm

Summary of Contents for SHOWTEC LED Octostrip Set MKII 100 cm

  • Page 1 MANUAL ENGLISH LED Octostrip Set MKII 100 cm Ordercode: 42232 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    LED Octostrip Set MKII 100 cm Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................
  • Page 3 LED Octostrip Set MKII 100 cm 24 channels ................................28 26 channels ................................29 50 channels ................................34 96 channels (only when using the 50 cm LED strips) ..................43 112 channels (only when using the 50 cm LED strips) ..................44 192 channels (only when using the 100 cm LED strips) ..................46 208 channels (only when using the 100 cm LED strips) ..................47...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec LED Octostrip Set MKII 100 cm: controller ● 8 x 100 cm LED strips ●...
  • Page 5 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 6: Operating Determinations

    Improper installation can cause serious injuries and/or damage of property! The LED Octostrip Set MKII 100 cm can be placed on a flat stage floor or be mounted to any kind of truss, with a clamp and the included quick locks.

  • Page 7: Connection With The Mains

    LED Octostrip Set MKII 100 cm Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN...

  • Page 8: Description Of The Device

    LED Octostrip Set MKII 100 cm Description of the device Features The LED Octostrip MKII 100 cm is a complete plug-and-play set; consisting of 8 LED strips, a controller and eight 5-meter long XLR extension cables. The new LED Octostrip can control each strip’s 8 individual RGB sections, along with the corresponding dimmer and strobe settings.

  • Page 9: Frontside

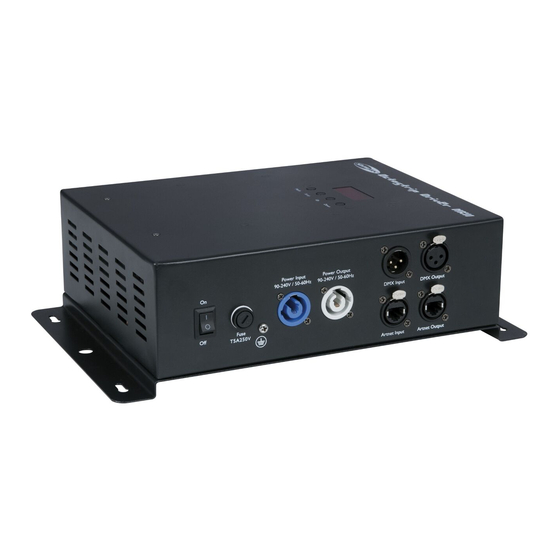

    LED Octostrip Set MKII 100 cm Frontside Fig. 02 01) Air intake grill 02) Power switch ON/OFF 03) Fuse T2L/250V 04) Ground/earth connection 05) Pro power connector Blue 100-240V IN 06) Pro power connector Grey 100-240V OUT 07) 3-pin DMX signal connector IN...

  • Page 10: Backside

    13) Mounting bracket + quick locks Installation Remove all packing materials from the LED Octostrip Set MKII 100 cm. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 11: Control Modes

    LED Octostrip Set MKII 100 cm Control Modes There are 6 modes: ● Auto Mode ● Built-in programs ● Sound-controlled ● Static Colors ● Master/Slave ● DMX-512, ArtNet (6CH, 8CH, 14CH, 24CH, 26CH, 50CH, 96CH, 112CH, 192CH, 208CH) One Octostrip (Auto, Built-in programs, Sound-controlled and Static Color) 01) Fasten the effect light to a firm trussing.

  • Page 12: Multiple Octostrips (Dmx Control)

    LED Octostrip Set MKII 100 cm Multiple Octostrips (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).

  • Page 13: Multiple Octostrips (Artnet Control)

    LED Octostrip Set MKII 100 cm Multiple Octostrips (ArtNet Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141).

  • Page 14: Connecting To A Network

    LED Octostrip Set MKII 100 cm Connecting to a Network ArtNet settings 01) Install any ArtNet-based software on your PC (Windows or Mac) or use a light controller which supports ArtNet. 02) Connect the LED strips to the Octostrip controller.

  • Page 15: How To Make A Data Cable

    LED Octostrip Set MKII 100 cm How To Make a Data Cable A standard ETHERNET cable can be used to replace the data cable required to transmit the data for the LED Octostrip MKII 100 cm. Please follow the instructions below in order to create an extra net cable.

  • Page 16: Fixture Linking

    LED Octostrip Set MKII 100 cm Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

  • Page 17: Control Panel

    LED Octostrip Set MKII 100 cm The LED Octostrip Set MKII 100 cm can be operated with a light controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MODE button C) SETUP button...

  • Page 18: Menu Overview

    LED Octostrip Set MKII 100 cm Menu Overview Ordercode: 42232...

  • Page 19: Main Menu Options

    LED Octostrip Set MKII 100 cm Main Menu Options Auto Built-in Programs Master/Slave DMX-512 Network Settings Sound-controlled Static Colors Settings Software Information 1. Auto With this menu, you can set Auto mode. 01) Press the MODE button until the display shows 02) The device will now run all built-in programs in sequence.

  • Page 20: Master/Slave

    LED Octostrip Set MKII 100 cm 08) Press the SETUP button to enter and to toggle between the 2 options below. Once you have chosen the desired option, do as follows: Program speed (Press the UP/DOWN buttons to increase/decrease program speed.

  • Page 21: Net Mask

    LED Octostrip Set MKII 100 cm 03) Repeatedly press the SETUP button to skip to the desired section of the IP address (the currently selected section will blink). 04) Press the UP/DOWN buttons to set the values. 05) Press the SETUP button to confirm.

  • Page 22: Sound-Controlled

    LED Octostrip Set MKII 100 cm 6. Sound-controlled With this menu you can set sound-controlled mode. 01) Press the MODE button until the display shows 02) Press the UP/DOWN buttons to set the sound sensitivity. The adjustment range is between , from OFF to high sound sensitivity.

  • Page 23: Software Information

    LED Octostrip Set MKII 100 cm 04) If you have chosen NO, press the SETUP button to confirm and the device will return to the previous menu. 9. Software Information With this menu you can monitor the current software version.

  • Page 24: Channels

    LED Octostrip Set MKII 100 cm Channel 2 – Red CH1 must be closed 0-255 Gradual adjustment Red, from 0-100% Channel 3 – Green CH1 must be closed 0-255 Gradual adjustment Green, from 0-100% Channel 4 – Blue CH1 must be closed...
  • Page 25 LED Octostrip Set MKII 100 cm Channel 5 – Color Macros CH1 must be open and CH3 must be closed Not functional 6-11 Color 1 12-17 Color 2 18-23 Color 3 24-29 Color 4 30-35 Color 5 36-41 Color 6...

  • Page 26: Channels

    LED Octostrip Set MKII 100 cm 14 channels Channel 1 – Built-in programs 0-10 Not functional 11-22 Program 1 23-34 Program 2 35-46 Program 3 47-58 Program 4 59-70 Program 5 71-82 Program 6 83-94 Program 7 95-106 Program 8...
  • Page 27 LED Octostrip Set MKII 100 cm 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161 Color 26 162-167 Color 27 168-173...
  • Page 28 LED Octostrip Set MKII 100 cm 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161...

  • Page 29: Channels

    LED Octostrip Set MKII 100 cm 24 channels Channel 1 – Red, LED strip 1 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green, LED strip 1 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue, LED strip 1...

  • Page 30: Channels

    LED Octostrip Set MKII 100 cm 26 channels Channel 1 – Built-in programs 0-10 Not functional 11-22 Program 1 23-34 Program 2 35-46 Program 3 47-58 Program 4 59-70 Program 5 71-82 Program 6 83-94 Program 7 95-106 Program 8...
  • Page 31 LED Octostrip Set MKII 100 cm 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161 Color 26 162-167 Color 27 168-173...
  • Page 32 LED Octostrip Set MKII 100 cm 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161...
  • Page 33 LED Octostrip Set MKII 100 cm 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149...
  • Page 34 LED Octostrip Set MKII 100 cm 66-71 Color 11 72-77 Color 12 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137...

  • Page 35: Channels

    LED Octostrip Set MKII 100 cm 50 channels Channel 1 – Built-in programs 0-10 Not functional 11-22 Program 1 23-34 Program 2 35-46 Program 3 47-58 Program 4 59-70 Program 5 71-82 Program 6 83-94 Program 7 95-106 Program 8...
  • Page 36 LED Octostrip Set MKII 100 cm 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161 Color 26 162-167 Color 27 168-173...
  • Page 37 LED Octostrip Set MKII 100 cm 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149 Color 24 150-155 Color 25 156-161...
  • Page 38 LED Octostrip Set MKII 100 cm 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137 Color 22 138-143 Color 23 144-149...
  • Page 39 LED Octostrip Set MKII 100 cm 66-71 Color 11 72-77 Color 12 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125 Color 20 126-131 Color 21 132-137...
  • Page 40 LED Octostrip Set MKII 100 cm 54-59 Color 9 60-65 Color 10 66-71 Color 11 72-77 Color 12 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113 Color 18 114-119 Color 19 120-125...
  • Page 41 LED Octostrip Set MKII 100 cm 42-47 Color 7 48-53 Color 8 54-59 Color 9 60-65 Color 10 66-71 Color 11 72-77 Color 12 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101 Color 16 102-107 Color 17 108-113...
  • Page 42 LED Octostrip Set MKII 100 cm 30-35 Color 5 36-41 Color 6 42-47 Color 7 48-53 Color 8 54-59 Color 9 60-65 Color 10 66-71 Color 11 72-77 Color 12 78-83 Color 13 84-89 Color 14 90-95 Color 15 96-101...
  • Page 43 LED Octostrip Set MKII 100 cm Channel 47 – Color Macros, LED strip 8 CH45 must be open and CH1 must be closed Not functional 6-11 Color 1 12-17 Color 2 18-23 Color 3 24-29 Color 4 30-35 Color 5...

  • Page 44: Channels (Only When Using The 50 Cm Led Strips)

    LED Octostrip Set MKII 100 cm There are 8 x 50 cm LED strips connected to the Octostrip. Each 50 cm LED strip is divided into 4 separate sections. Each section is equipped with 3 color LEDs (RGB). 8 LED strips x 4 sections x 3 colors = 96 channels.

  • Page 45: 112 Channels (Only When Using The 50 Cm Led Strips)

    LED Octostrip Set MKII 100 cm There are 8 x 50 cm LED strips connected to the Octostrip. Each 50 cm LED strip has its own dimmer and strobe. Each 50 cm LED strip is divided into 4 separate sections.
  • Page 46 LED Octostrip Set MKII 100 cm Channel 14 – Strobe, LED strip 7 Not functional 5-255 Strobe frequency, from low to high frequency Channel 15 – Dimmer, LED strip 8 0-255 Dimmer intensity, from dark to brightest Channel 16 – Strobe, LED strip 8...

  • Page 47: 192 Channels (Only When Using The 100 Cm Led Strips)

    LED Octostrip Set MKII 100 cm There are 8 x 100 cm LED strips connected to the Octostrip. Each 100 cm LED strip is divided into 8 separate sections. Each section is equipped with 3 color LEDs (RGB). 8 LED strips x 8 sections x 3 colors = 192 channels.

  • Page 48: 208 Channels (Only When Using The 100 Cm Led Strips)

    LED Octostrip Set MKII 100 cm There are 8 x 100 cm LED strips connected to the Octostrip. Each 100 cm LED strip has its own dimmer and strobe. Each 100 cm LED strip is divided into 8 separate sections.
  • Page 49 LED Octostrip Set MKII 100 cm Channel 14 – Strobe, LED strip 7 Not functional 5-255 Strobe frequency, from low to high frequency Channel 15 – Dimmer, LED strip 8 0-255 Dimmer intensity, from dark to brightest Channel 16 – Strobe, LED strip 8...

  • Page 50: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The LED Octostrip Set MKII 100 cm requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.

  • Page 51: No Response To Dmx

    LED Octostrip Set MKII 100 cm No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.

  • Page 52: Product Specifications

    LED Octostrip Set MKII 100 cm Product Specifications Model: Showtec LED Octostrip Set MKII 100 cm Input voltage: 100-240V AC, 50/60Hz Power consumption: 52W (full output) DMX linking: 30pcs Fuse: T2L/250V Dimensions (controller): 200 x 315 x 92 mm (LxWxH)

  • Page 53: Dimensions

    LED Octostrip Set MKII 100 cm Dimensions Ordercode: 42232...

  • Page 54: Notes

    LED Octostrip Set MKII 100 cm Notes Ordercode: 42232...
  • Page 55 LED Octostrip Set MKII 100 cm Ordercode: 42232...
  • Page 56 ©2018 Showtec...
