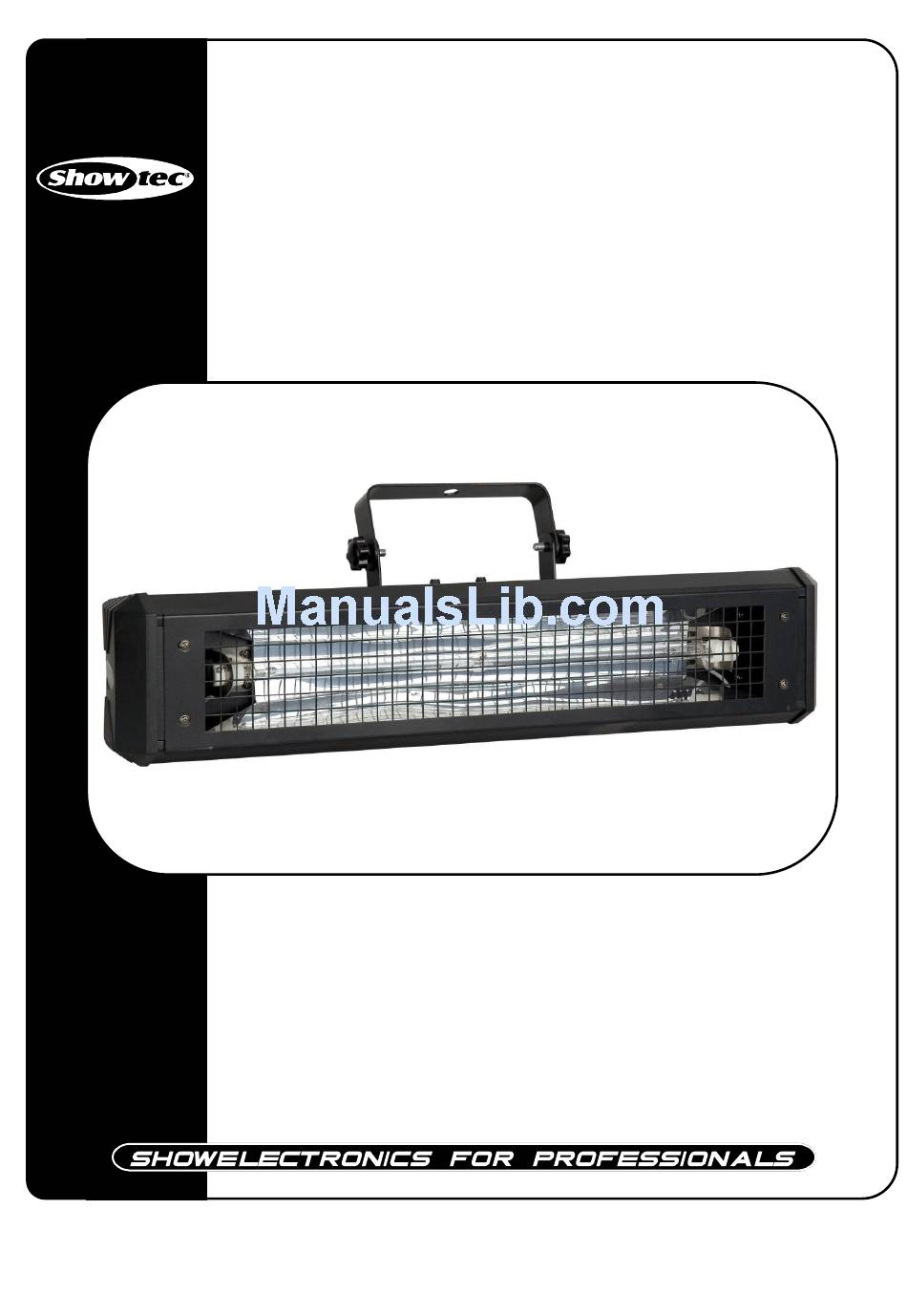

- Page 1 Jumbo Strobe MKIII DMX ORDERCODE 40218...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Jumbo Strobe MKII Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Rigging.……………………………………………………………………………………………………………………. Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...….…………….. Installation................…...…………………………………………………..… Installing the Lamp ............…………………………………………………….……… Set Up and Operation............................. One Jumbo Strobe MKII Stand-alone.…......……………………………………………………..… DMX-Control…...........………………………………………………..……………………….. DMX Dip Switch Setting.......…………………………………………………………………………….…. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the strobe is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the strobe, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description

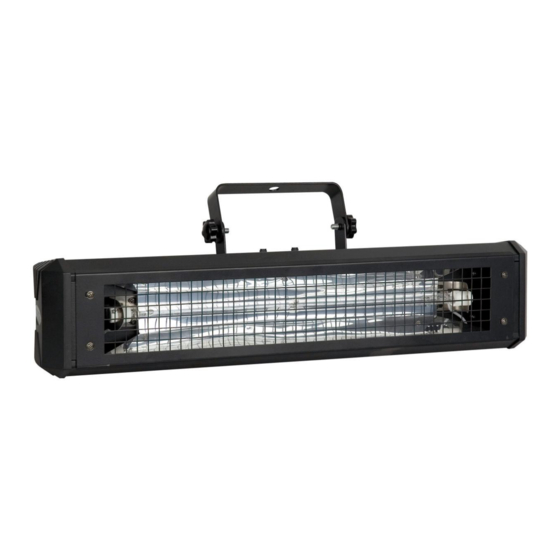

Description of the device Features The Showtec Jumbo Strobe MKII is a dimmable, DMX-controlled strobe light with a high output. • 1500W flash • DMX-control via standard DMX-controller • 2 DMX-control channels required • Strobe-effect with adjustable speed (1 - 12 flashes/sec.) •... -
Page 9: Backside
Backside Fig. 2 Fig. 3 1) Manual Control Intensity 2) Manual Control Flash rate speed DMX signal connector (OUT) DMX signal connector (IN) 5) Dip Switches Fuse 15A / 250V 7) Power cable... -
Page 10: Installation
Installation Installing the Lamp The Showtec Jumbo Strobe MKII uses the GE XOP-1500W (ordercode 80603) strobe bulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 11: Dmx-Control
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the Showtec Jumbo Strobe bracket). Leave at least 0,5 meter on all sides for air circulation. 2. Link the units as shown in Figure 5. Plug a DMX signal cable from the controller to the first unit's DMX "in"... - Page 12 Dipswitch #12 must be set to ON when working in DMX Mode. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec Jumbo Strobe, which has 2 channels (Flash rate CH1 and intensity CH2) is as follow:...
-
Page 13: Dmx Channel Chart
DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Sw itch Pos ition DM X Addre s s DMX CHANNEL CHART... -
Page 14: Maintenance
Maintenance The Showtec Jumbo Strobe MKII requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe glass clean with glass cleaner and a soft cloth. -
Page 15: Product Specifications
Product Specification Model: Showtec Jumbo Strobe MKII Voltage: 240V-50Hz (CE) Power: 1500W Fuse: 15A / 250V Dimensions: 520x150x100mm (LxWxH) Weight: 2,2 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) DMX Channels 2...
