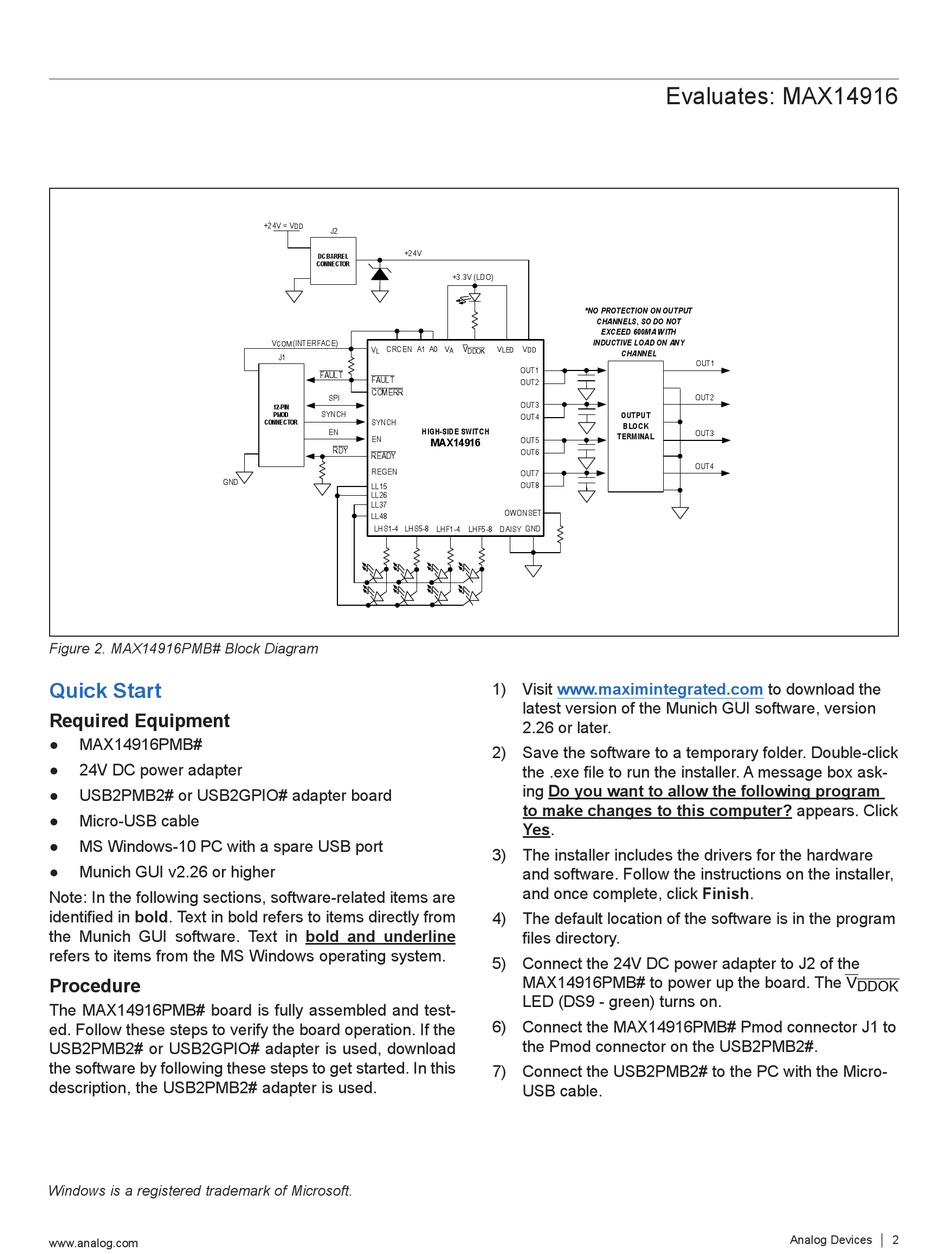

Figure 2. MAX14916PMB# Block Diagram

Quick Start

Required Equipment

● MAX14916PMB#
● 24V DC power adapter
● USB2PMB2# or USB2GPIO# adapter board
● Micro-USB cable
● MS Windows-10 PC with a spare USB port
● Munich GUI v2.26 or higher
Note: In the following sections, software-related items are
identified in bold. Text in bold refers to items directly from
the Munich GUI software. Text in bold and underline
refers to items from the MS Windows operating system.
Procedure
The MAX14916PMB# board is fully assembled and test-
ed. Follow these steps to verify the board operation. If the
USB2PMB2# or USB2GPIO# adapter is used, download
the software by following these steps to get started. In this
description, the USB2PMB2# adapter is used.
Windows is a registered trademark of Microsoft.
www.analog.com
+24V = V
DD
J2
+24V
DC BARREL
CONNECTOR
V (INTERFACE)
COM
A1 A0
V CRCEN
L
J1
FAULT
FAULT
COMERR
SPI
12-PIN
SYNCH
PMOD
SYNCH
CONNECTOR
HIGH-SIDE SWITCH
EN
EN
MAX14916
RDY
READY
REGEN
LL15
LL26
LL37
LL48
LHS1-4 LHS5-8
LHF1-4 LHF5-8
+3.3V (LDO)
*NO PROTECTION ON OUTPUT
CHANNELS , SO DO NOT
EXCEED 600MA W ITH
INDUCTIVE LOAD ON ANY
V V
V V
LED DD
A DDOK
CHANNEL
OUT1
OUT2
OUT3
OUTPUT
OUT4
BLOCK
TERMINAL
OUT5
OUT6
OUT7
OUT8
OWONSET
GND
DAISY
1) Visit www.maximintegrated.com
latest version of the Munich GUI software, version
2.26 or later.
2) Save the software to a temporary folder. Double-click
the .exe file to run the installer. A message box ask-
ing Do you want to allow the following program
to make changes to this computer? appears. Click
Yes.
3) The installer includes the drivers for the hardware
and software. Follow the instructions on the installer,
and once complete, click Finish.
4) The default location of the software is in the program
files directory.
5) Connect the 24V DC power adapter to J2 of the
MAX14916PMB# to power up the board. The V
LED (DS9 - green) turns on.
6) Connect the MAX14916PMB# Pmod connector J1 to
the Pmod connector on the USB2PMB2#.
7) Connect the USB2PMB2# to the PC with the Micro-
USB cable.
