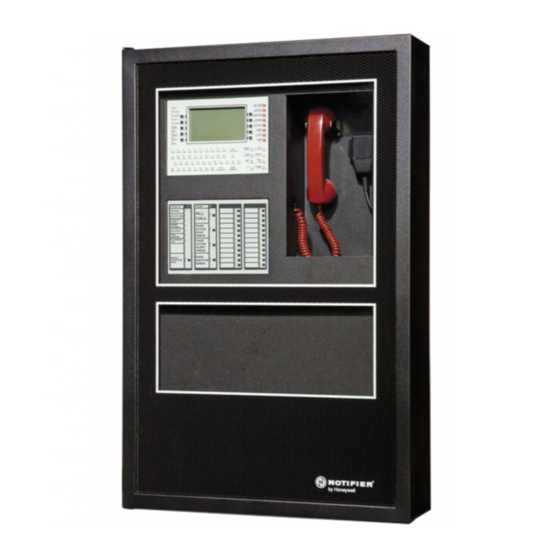

Fire Alarm Control Panel
NFS2-3030
Programming Manual
A
Document 52545
11/29/2005
Rev:
P/N 52545:A
ECN 05-210

Advertisement

Table of Contents
loading

Related Manuals for Honeywell NOTIFIER NFS2-3030

Summary of Contents for Honeywell NOTIFIER NFS2-3030

  • Page 1 Fire Alarm Control Panel NFS2-3030 Programming Manual Document 52545 11/29/2005 Rev: P/N 52545:A ECN 05-210...
  • Page 2 Fire Alarm System Limitations While a fire alarm system may lower insurance rates, it is not a substitute for fire insurance! An automatic fire alarm system—typically made up of Heat detectors do not sense particles of combustion and smoke detectors, heat detectors, manual pull stations, audible alarm only when heat on their sensors increases at a predeter- warning devices, and a fire alarm control panel with remote mined rate or reaches a predetermined level.
  • Page 3 Acclimate Plus™, HARSH™, NIS™, Notifier Integrated Systems™, NOTI•FIRE•NET™, and ONYXWorks™ are all trademarks; and FlashScan®, NION®, NOTIFIER®, ONYX®, UniNet®, VeriFire®, and VIEW® are all registered trademarks of Honeywell International Inc. Echelon® is a registered trademark and LonWorks™ is a trademark of Echelon Corporation. ARCNET® is a registered trademark of Datapoint Corporation. Microsoft® and Windows® are registered trademarks of the Microsoft Corporation.
  • Page 4 • Your suggestion for how to correct/improve documentation Send email messages to: FireSystems.TechPubs@honeywell.com Please note this email address is for documentation feedback only. If you have any technical issues, please contact Technical Services. NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 5: Table Of Contents

    Table of Contents Section 1: General Information....................9 1.1: About This Manual ............................9 1.2: UL 864 Compliance............................9 1.2.1: Products Subject to AHJ Approval......................9 1.2.2: Programming Features Subject to AHJ Approval ................9 1.3: Related Documents ............................10 1.4: Introduction to the Control Panel ........................11 1.4.1: Features..............................11 1.5: Navigating Menu and Programming Screens ....................12 1.6: Basic Procedure ............................12...
  • Page 6 Table of Contents Section 4: Alter Status ......................63 4.1: Disable/Enable Point Selection........................63 4.2: Disable/Enable .............................64 4.3: Detector Sensitivity............................65 4.3.1: Sensitivity Select ..........................65 4.4: Clear Verify Counters ..........................67 4.5: Clear History ..............................67 4.6: Walk Test..............................68 4.6.1: Walk Test Menu ..........................70 4.6.2: Walk Test Loops Parameters ......................71 4.6.3: Point Walk Test Activation ......................71 4.6.4: Devices Test Selection........................72...
  • Page 7 Table of Contents D.3: Pre-Alarm..............................112 D.3.1: Definition............................112 D.3.2: Alert Level ............................112 D.3.3: Action Level ...........................113 D.4: Detector Sensitivity Settings........................113 D.4.1: How to Select Pre-Alarm and Alarm Sensitivity................113 D.4.2: To Test Detectors Set Below 0.50% Obscuration per Foot............114 D.5: Detector Status Display..........................115 D.5.1: Detector Maintenance Display .......................115 D.5.2: Print a Detector Maintenance Report .....................115 D.5.3: To Interpret a Detector Status Display or Maintenance Report .............116...
  • Page 8 Table of Contents NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 9: Section 1: General Information

    Section 1: General Information 1.1 About This Manual The following graphics appear in the manual to indicate a caution, a warning, or a note. WARNING: Information about procedures that could cause irreversible damage to the control panel, irreversible loss of programming data or personal injury. CAUTION: Information about procedures that could cause programming errors, runtime errors, or equipment damage.

  • Page 10: Related Documents

    General Information Related Documents 1.3 Related Documents The table below provides a list of document sources (manuals) containing additional information regarding the NFS2-3030 and optional peripherals. The NOTIFIER document (DOC-NOT) chart provides the current document revision. A copy of this document is included in every NOTIFIER shipment.

  • Page 11: Introduction To The Control Panel

    Introduction to the Control Panel General Information DPI-232 Manual 51499 TM-4 Installation Document (Reverse Polarity Transmitter) 51490 UDACT Manual (Universal Digital Alarm Communicator/Transmitter) 50050 ACT-1 Installation Document 52527 ACT-2 Installation Document 51118 VEC 25/50 Manual 50686 RM-1 Series Remote Microphone Installation Document 51138 RA400Z Remote LED Annunciator Document I56-508...

  • Page 12: Navigating Menu And Programming Screens

    General Information Navigating Menu and Programming Screens • Local programming - program directly from the control panel keypad to reduce installation time. • PC programming - input long data entry programming information on a PC; transfer programming data between a PC and the control panel. •...

  • Page 13: Getting Started

    Getting Started General Information 1.7 Getting Started Once the system has been physically installed, programming may begin. The user may program at any time except while there is an unacknowledged alarm present. To ensure security, passwords should be entered at this time to replace the factory default settings. 1.7.1 Password Change The NFS2-3030 has two password levels;...
  • Page 14 General Information Getting Started Press the enter key on the keyboard. RE-ENTER PASSWORD will appear. Reenter the password for verification. Press enter to save the new password. C H A N G E M A S T E R P A S S W O R D E N T E R P A S S W O R D * * * * * * * * R E - E N T E R P A S S W O R D...
  • Page 15 Getting Started General Information REFERENCE: Press this key to enter a maximum 20-character alphanumeric label that identifies the user. Press the enter key on the display/keyboard to enter the information. ENTER PASSWORD - Press to enter a new password. Enter up to eight alphanumeric characters, then press enter.
  • Page 16 General Information Getting Started NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 17: Section 2: Main Menu

    Section 2: Main Menu The Main Menu screen is the means by which the programmer can access displays, history information, printing and programming menus. This screen is accessible from the System Normal Screen, and from most other screens by pressing the BACK soft key until it displays. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 1 : 5 8 : 4 5 A...

  • Page 18: Read Status

    Main Menu Read Status 2.4 Read Status Pressing the Read Status soft key brings up screens to view the present status of points, zones, and other system information. Refer to this panel’s operations manual for a full description of Read Status. 2.5 Program/Alter Status Pressing the Program/Alter Status soft key brings up screens for panel programming, point programming, autoprogramming, clear programming, altering the status of points, walk test, and...

  • Page 19: Section 3: Program

    Section 3: Program 3.1 General Information The NFS2-3030 operates with two levels of programming: Program, and Alter Status. Program level allows change to the essential control panel functions such as point functions, system functions, and passwords. Program level change requires the master password, or a user password that allows access to the Program level.

  • Page 20: Panel Program

    Program Panel Program The logical sequence for initial programming is to program the panel parameters first, then to program the individual points through autoprogramming and/or point programming. 3.2 Panel Program Panel programming provides the means to change settings for the panel system as a whole, as well to address and program annunciator points.
  • Page 21 Panel Program Program Soft Keys NODE NUMBER: Enter the network node number of this panel. For standalone NFS2-3030, the network node number will be 000. A valid network node number range is 1-240. Once the soft key has been pressed, the number may be typed in from the keypad, or the Next/Previous Selection special function key on the keypad may be used to toggle through online node numbers.

  • Page 22: 3: Panel Settings

    Program Panel Program 3.2.3 Panel Settings Press the Panel Settings soft key on the Panel Program Menu 1 screen to choose panel settings. P A N E L S E T T I N G S L O C A L C O N T R O L : Y E S R E M I N D E R M E N U P I E Z O : O N M O R E...
  • Page 23 Panel Program Program REMINDER MENU: Press this soft key to bring up the Reminder Menu screen. ACCEPT: Press this soft key to save the information entered on this screen. MORE: Press this key to progress to the second Panel Settings screen. P A N E L S E T T I N G S L C M L O C A L M O D E : Y E S D C C P A R T I C I P A T I O N : N O...

  • Page 24: 4: Panel Timers (Menu 1)

    Program Panel Program Reminder Menu Press the Reminder Menu soft key on the Panel Program Menu 1 screen to set the trouble reminder. R E M I N D E R M E N U T R O U B L E R E M I N D E R : Y E S A C C E P T B A C K Figure 3.7 Reminder Menu Screen...

  • Page 25: 5: Panel Timers (Menu 2)

    Panel Program Program Soft Keys VERIFY TIME: Press this soft key to set the Alarm Verification timer. Type in a value of 0-60 (seconds), which will delay initiating devices set for Alarm Verification from signaling for the amount of time entered. If a second alarm occurs while the alarm verification timer is counting, the timer will stop and the alarm will signal immediately.

  • Page 26: 6: Lcd Programming

    Program Panel Program P A N E L T I M E R S P A S : O F F P R E S I G N A L D E L A Y : M M : S S D E F A U L T T I M E R S A C C E P T B A C K...

  • Page 27: 7: Acs Programming

    Panel Program Program L C D P R O G R A M M I N G L C D I N T E N S I T Y : 5 0 % B R I G H T E R D E F A U L T D A R K E R C U R R E N T...
  • Page 28 Program Panel Program Programming screens in this section allow the user to define the mapping and functional mode of these devices and points. Each annunciator board may be labeled using the ACS Label Menu. (Refer to Section 3.4.7, “Annunciator Board Label”, on page 55). NOTE: Smoke Control devices must be set as FSCS or HVAC annunciator types.
  • Page 29 Panel Program Program Soft Keys ANNUNCIATOR TYPE: When the cursor is placed at the desired address, press this soft key to scroll through the following list of types. Stop at the appropriate type. Type Used for 64PT 64 point annunciation 64SYS 64 point annunciation, with first 8 points reserved 64SVC...
  • Page 30 Program Panel Program A C S P O I N T P R O G R A M M I N G P O I N T : A 2 7 P 0 4 M O D E : M O N I T O R S O U R C E : N 2 3 L 0 1 M 0 3 7 ( M O D U L E )
  • Page 31 Panel Program Program ACS Point Function: Explanation Mode The point… Silence … will act like the Signal Silence button The Point Active LED is lit if all silenceable outputs have been on the panel, silencing all silenceable silenced. The Status (trouble) LED is lit if not all silenceable outputs when its button is pushed.

  • Page 32: 8: Supervision

    Program Panel Program • Panel circuit modules in the format NxxxPyy.z. xxx = FACP node number, yy = panel circuit module number, z = panel circuit pushbutton number. • Prioritized Audio Matrix (PAM) speaker points, in the format NxxxIyyyyAzzSn. xxx = the DVC node number, yyyy = the point number in the PAM, zz = the DAA address on the Digital Audio Loop (01 through 32), and n = the DAA speaker circuit (1 through 4).

  • Page 33: Panel Program Menu (2)

    Panel Program Menu (2) Program AKS-1 should be selected when there is an AKS-1 key switch connected to the panel cabinet door (which allows the operator to use Signal Silence, Reset, Drill and Acknowledge functions when a key turns the lock to “Enable”). Default: NO ACCEPT: Press to save changes and return to previous menu.

  • Page 34: 3: Remote Display Menu

    Program Panel Program Menu (2) W E E K L Y O C C U P A N C Y S C H E D U L E W E E K L Y O C C U P A N C Y S C H E D U L E : 1 0 S U N D A Y M O N D A Y 0 8 : 0 0 - 1 2 : 0 0 , 1 3 : 0 0 - 1 8 : 0 0...
  • Page 35 Panel Program Menu (2) Program Soft Keys INSTALL REMOTE DISPLAY: To install a remote display, press the arrow keys to place the cursor on the line next to the remote display address to be installed. Press this soft key until YES displays.

  • Page 36: 4: Loop Configuration

    Program Panel Program Menu (2) 3.3.4 Loop Configuration This screen displays when the LOOP CONFIGURATION soft key is pressed at the Panel Programming Menu 2 screen. Here the programmer chooses one of the ten possible SLC loops for further definition. L O O P C O N F I G U R A T I O N L O O P S E L E C T I O N L y y ( L O O P )

  • Page 37: 5: Custom Action Message

    Panel Program Menu (2) Program DETECTOR POLL: Press to select loop-polling mode. (See note below.) MODULE POLL: Press to select loop-polling mode. (See note below.) NOTE: FlashScan and CLIP Mode FlashScan devices can be programmed to run in either CLIP or FlashScan mode. The types can not be mixed on a loop: for example, if Loop 1 is programmed with a FlashScan module poll, CLIP modules may not be used on that loop.

  • Page 38: 6: Event Logging

    Program Panel Program Menu (2) ACCEPT: Press to save any change made to the message and return to the previous screen. NOTE: A printout of all the messages may be obtained by entering the Print Programming Menu (2) and pressing the CUSTOM ACTION MESSAGES soft key. 3.3.6 Event Logging This menu gives the option of logging Non-fire Activations and Output Activations into a history file.

  • Page 39: Point Program

    Point Program Program H O L I D A Y M E N U M M / D D / Y Y 0 1 0 1 / 0 1 / * * 0 2 0 5 / 3 0 / 0 5 0 3 0 7 / 0 4 / * * 0 4 0 9 / 0 5 / 0 5 A N Y Y E A R...

  • Page 40: 1: Detector Point

    Program Point Program Soft Keys POINT SELECT: Press until the desired point type appears. The types - detector, module, general zone, logic zone, trouble zone, ACS Board, or DAA or DVC - appear in the parenthesis after the point formats. Enter the desired point address in the format field. Formats are illustrated in Table 3.2.
  • Page 41 Point Program Program Soft Keys TYPE: Press this soft key to scroll through the point type choices: stop at the appropriate selection. If a new point is being added, no other field will be displayed until TYPE: is entered and the ACCEPT soft key is pressed.
  • Page 42 Program Point Program Soft Keys ZONE MAP: A detector may be mapped to up to ten general, releasing, or special zones. There are ten positions available for mapping; positions 1, 9 and 10 - refer to Figure 3.26 - have additional functionality.
  • Page 43 Point Program Program Soft Keys CUSTOM ACTION MESSAGE: Displays the custom action message number (a value of one through 100). The default value is 0 (no message). Press this soft key to progress to the Custom Action Message screen (Figure 3.28) to view the message or to choose a different message for viewing when this point activates.
  • Page 44 Program Point Program Soft Keys CUSTOM ACTION MESSAGE: Enter the number of the Custom Action Message to be displayed during alarm conditions for this point (refer to Figure 3.21 on page 37 for an example). VIEW: Press this soft key to view the message associated with the number entered. ACCEPT: Press to save the entries made on this screen.
  • Page 45 Point Program Program Detector Occupancy Schedule D E T E C T O R O C C U P A N C Y S C H E D U L E W E E K L Y O C C U P A N C Y S C H E D U L E : 1 0 S U N D A Y M O N D A Y 0 8 : 0 0 - 1 2 : 0 0 , 1 3 : 0 0 - 1 8 : 0 0...

  • Page 46: 2: Module Point

    Program Point Program SILENCEABLE: This field determines whether the user can manually silence a detector’s activated sounder/relay base. Values are as follows: Not manually silenceable YES - RESOUND FIRE Silenceable, resound on fire alarm events Network and Local Resound YES - RESOUND SUPERV Silenceable, resound on supervisory events Network and Local Resound YES - NO RESOUND Silenceable, does not resound...
  • Page 47 Point Program Program Module Point Programming (Monitor Module) Pressing the MORE soft key at the Module Point Programming screen will display this screen if the module type was monitor. M O D U L E P O I N T P R O G R A M M I N G L 0 3 M 1 2 3 C U S T O M A C T I O N M E S S A G E : 0 2 0 Z O N E M A P :...
  • Page 48 Program Point Program designations. For example, SLC inputs with“fire” point types will activate SLC outputs with“fire” point types. Refer to Appendix G.3, “Type Codes for Input Devices”, on page 127 for Type Code point types. Default: OFF NOTE: The panel setting LCM LOCAL MODE must be set to Yes for local mode to work at the device level.

  • Page 49: 3: General Zone

    Point Program Program WALK TEST: This field determines if the output will activate during Walk Test. Values are ON (the output will activate) and OFF (the output will not activate). Default: OFF. NOTE: The following Type ID codes do not participate in Walk Test, and the WALK TEST soft key will not appear when the screen displays: REL END BELL, RELEASE CKT, REL CKT ULC, REL.

  • Page 50: 4: Releasing Zone

    Program Point Program Z O N E P O I N T P R O G R A M M I N G Z y y y Z O N E L A B E L : A C C E P T B A C K Figure 3.35 Zone Point Programming Screen Soft Keys...

  • Page 51: 5: Logic Zone

    Point Program Program CROSS ZONE: Press to scroll through the selection list of YES, NO, ZONE, HEAT. Default: NO. SOAK TIME: Press to type a value from 0 to 9999 (seconds). Default: 0000 3.4.5 Logic Zone Logic Zone Programming This screen displays when a logic zone is entered at the Point Programming Menu (see Figure 3.24 on page 39).
  • Page 52 Program Point Program Edit Logic Equation This screen displays when the EDIT EQUATION soft key is pressed on the Logic Zone. Programming Menu L O G I C Z O N E P R O G R A M M I N G M E N U L O G I C Z O N E Z L x x x x A U T O M A T I C O F F I N S / O V R...
  • Page 53 Point Program Program Add Point/ Zone L O G I C Z O N E P R O G R A M M I N G M E N U L O G I C Z O N E Z L x x x x A U T O M A T I C O F F A N D ( Z 2 0 , O R ( L 2 D 1 5 9 , L 2 D 1 4 ) ) P O I N T S E L E C T :...

  • Page 54: 6: Trouble Zone

    Program Point Program Soft Keys LOGIC FUNCTION: Press to scroll through the list of possible logic functions. ACCEPT: Press to insert the logic function into the equation where the cursor is blinking, and to return to the previous screen. Add Time/Date This screen appears when the ADD TIME/DATE soft key is pressed at the Logic Zone Programming Menu screen L O G I C Z O N E P R O G R A M M I N G M E N U...

  • Page 55: 7: Annunciator Board Label

    Point Program Program 3.4.7 Annunciator Board Label When is selected from the Point Program Menu, the ACS Label Menu appears. A C S B O A R D A C S B O A R D P R O G R A M M I N G A 0 1 A C S L A B E L : E A S T W I N G S P E A K E R S...

  • Page 56: Delete Program

    Program Delete Program AUXILIARY VOLUME: - This field sets the volume for DVC inputs AUXA (background music from various sources or a telephone paging source) and AUXB (AMG-1 input). The field does not appear if a specific DAA address has been entered. The DAAs have onboard volume control for AUX A and AUXB inputs.

  • Page 57: Autoprogram Menu

    Autoprogram Menu Program D E L E T E P O I N T P O I N T S E L E C T : L y y D z z z ( D E T E C T O R ) N E X T S E L E C T I O N D E L E T E P R E V I O U S S E L E C T I O N...

  • Page 58: 3: Confirmation Screens

    Program Autoprogram Menu Physically install/uninstall the SLC devices. Press the soft key to run the Autoprogram. Existing information A U T O P R O G R A M L O O P S will not be changed. Autoprogram will find the devices/modules on the selected installed SLCs. It will compare the information it finds during autoprogramming against any point information that may already be in the database, and it will look for any addressing errors, such as two detectors with the same address.
  • Page 59 Autoprogram Menu Program A U T O P R O G R A M C O N F I R M A T I O N L O O P D E T E C T O R S M O D U L E S 0 1 1 0 8 7 0 3 0...
  • Page 60 Program Autoprogram Menu Soft Keys YES: Press this soft key to install the new point into the panel’s database. EDIT: Press this soft key to advance to the point programming menu for the new point. NO: Press if the point will not be installed. Error and Discrepancy Resolution Pressing the REVIEW soft key will bring up screens that provide the means to resolve any errors or discrepancies found during autoprogram.
  • Page 61 Autoprogram Menu Program Display field contains the information currently in the panel’s programming database. The O L D N E W field contains the information found during autoprogramming. The fields contain the FlashScan Type ID codes if the device is FlashScan, or they will contain the device type if CLIP. Soft Keys YES: Press this soft key to accept the new device type.
  • Page 62 Program Autoprogram Menu NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 63: Section 4: Alter Status

    Section 4: Alter Status Alter Status provides a programming level for changing operating parameters such as detector sensitivity, Walk Test, changing system time/date and disabling/enabling points. Alter Status is accessible with the Master Password and with User Passwords programmed for Alter Status. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A...

  • Page 64: Disable/Enable

    Alter Status Disable/Enable 4.2 Disable/Enable A point can be disabled or enabled using this screen. Press the DISABLE/ENABLE soft key at the Alter Status screen to display the following. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 1 6 , 2 0 0 5...

  • Page 65: Detector Sensitivity

    Detector Sensitivity Alter Status 4.3 Detector Sensitivity This screen is displayed when the “Detector Sensitivity” soft key is pressed on the Alter Status Menu screen. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5...
  • Page 66 Alter Status Detector Sensitivity The current sensitivity values displayed are described in Detector Point Programming (Refer to the paragraph “Sensitivity” on page 44) and in Appendix D, “Intelligent Sensing Applications” L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5...

  • Page 67: Clear Verify Counters

    Clear Verify Counters Alter Status Soft Keys OCCUPIED ALARM: The type of alarm/prealarm will display based on which soft key was pressed in the previous screen. For example, in the screen above, OCCUPIED ALARM displays because the OCCUPIED ALARM SENSITIVITY: soft key was pressed. The detector sensitivity values display below the soft key.

  • Page 68: Walk Test

    Alter Status Walk Test L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5 C L E A R H I S T O R Y A L A R M H I S T O R Y...
  • Page 69 Walk Test Alter Status Basic Walk Test - The basic test allows a single operator to run audible tests on the panel. All logic equation automation is suspended during the test. All ACS devices will default to Disable. They may be enabled by selecting NO at the DISABLE ACS BOARDS soft key on the Walk Test Menu screen (Figure 4.9).

  • Page 70: 1: Walk Test Menu

    Alter Status Walk Test 4.6.1 Walk Test Menu L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5 W A L K T E S T...

  • Page 71: 2: Walk Test Loops Parameters

    Walk Test Alter Status 4.6.2 Walk Test Loops Parameters This screen appears when LOOPS is chosen as a parameter at the Walk Test Menu. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5...

  • Page 72: 4: Devices Test Selection

    Alter Status Walk Test This screen appears when DEVICES is chosen as a parameter at the Walk Test Menu. The chosen settings are displayed (BASIC, AUDIBLE in Figure 4.11). Soft Keys DEVICE:Press this key to type the desired detector address into the underlined field. NEXT POINT: Press this key to bring up the next installed address for an addressable detector into the DEVICE field.

  • Page 73: Program Time/Date

    Program Time/Date Alter Status Walk Test In Progress Screen T R O U B L E P R O G M O D E A C T I V A T E D L A K E V I E W G E N E R A L H O S P I T A L 1 0 : 2 2 : 3 4 A F R I S E P 2 3 , 2 0 0 5 4 W A L K T E S T I N P R O G R E S S...

  • Page 74: Control On/Off Point Select

    Alter Status Control On/Off Point Select 4.8 Control On/Off Point Select This screen may be used to force an SLC control module off if it is on, or on if it is off. L A K E V I E W G E N E R A L H O S P I T A L S Y S T E M N O R M A L 1 0 : 2 2 : 3 4 A F R I A P R 2 2 , 2 0 0 5...

  • Page 75: 2: Control On

    Control On/Off Point Select Alter Status Soft Keys FORCE OFF: Press this soft key to change the state of the control module from A U T O M A T I C A C T I V E A U T O M A T I C I N A C T I V E . NOTE: A module with a releasing Type ID cannot be forced.
  • Page 76 Alter Status Control On/Off Point Select NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 77: Section 5: Service Screens

    Section 5: Service Screens 5.1 Version Information Software version information may be displayed by pressing the Lamp Test special function key on the keyboard for more than 5 seconds. The following three screens will appear in succession while the Lamp Test key is pressed. P A N E L : B O O T : 0 1 0 .

  • Page 78: Power-Up Screen

    Service Screens Power-up Screen L C M S O F T W A R E V E R S I O N 1 B O O T : 0 0 2 . 0 0 4 . 0 0 3 A P P : 0 0 2 .

  • Page 79: Bootloader Screen

    Bootloader Screen Service Screens 5.3 Bootloader Screen This screen is used for LCD-160 and Loop downloads. To display this screen, press the RESET key during the entire power-up self-testing process, then release the key. T R O U B L E L O A D I N G .

  • Page 80: 2: Loop Download Menu

    Service Screens Bootloader Screen DOWNLOAD TYPE: Press this soft key to scroll through the languages (LANGUAGE-ENGLISH, LANGUAGE-HEBREW, LANGUAGE-PORTUGUESE, LANGUAGE-SPANISH), BANNER, APP and BOOT. Stop at the desired selection. Choose a language to change LCD-160s selected at the ADDRESS field to display in that language.

  • Page 81: Download Screen

    Download Screen Service Screens 5.4 Download Screen This screen is displayed during application/database/loop/LCD-160 downloads. The progress meter shows the current download type and progress. T R O U B L E L O A D I N G . . N O S E R V I C E L A K E V I E W G E N E R A L H O S P I T A L B O O T L O A D E R P E R F O R M D O W N L O A D...
  • Page 82 Service Screens Application Corrupt Screen NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 83: Appendix A: Menu Hierarchy

    Appendix A: Menu Hierarchy A.1 Screens Overview MAIN MENU Event Counts Display More Information Multiple Event List History Select All Events Alarms Only Troubles Only Supervisory Only Security/Other Time/Date Interval Time & Date Range Select Point Range Point Range Select Read Status Smoke Detector Heat Detector...
  • Page 84 Menu Hierarchy Screens Overview Holiday Menu Point Program Detector Point Programming (1) Zone Map More (Detector Point Programming (2)) Custom Action Message Weekly Occupancy Schedule Sensitivity More (Detector Point Programming (3)) Module Point Programming More Zone Map Custom Action Message General Zone Point Programming Releasing Zone Programming Logic Zone Programming...

  • Page 85: Appendix B: Releasing Applications

    Appendix B: Releasing Applications WARNING: Do not rely on Disable to disable releasing points during testing. Releasing points must be physically disconnected. B.1 Releasing Zones The control panel includes ten releasing zones (ZR00-ZR09) that can be used to control up to ten releasing operations.

  • Page 86: B.2: Nfpa Releasing Applications

    Releasing Applications NFPA Releasing Applications B.2 NFPA Releasing Applications This control panel can be used for agent release or preaction/deluge control applications. In a properly configured system with compatible, listed actuating and initiating devices, this control panel complies with the following NFPA standards for installation in accordance with the acceptable standard: Standard Covers...
  • Page 87 Abort Switches Releasing Applications • A monitor module wired to an abort station and programmed with the Type Code ABORT SWITCH • All initiating devices and outputs with a common releasing zone in their zone maps - ZR05 in the example shown •...

  • Page 88: B.3.1: Uli Abort Switch

    Releasing Applications Abort Switches B.3.1 ULI Abort Switch A ULI Abort Switch has a standard UL-type delay timer that complies with UL Standard 864. When an alarm initiates in the programmed releasing zone, the abort switch can be pressed while the delay timer continues to count down, and held for as long as necessary.

  • Page 89: B.3.2: Iri Abort Switch

    Abort Switches Releasing Applications B.3.2 IRI Abort Switch An IRI Abort Switch has a standard UL-type delay timer that complies with UL Standard 864, operating like ULI but with additional functions for Cross Zones. Refer to “How Cross Zones Work” on page 93 in this appendix for more information on cross zones. When the first alarm occurs in a releasing zone programmed with a cross-zone code, pressing the abort switch will prevent activation of the releasing zone should a second alarm occur while the switch is held.

  • Page 90: B.3.3: Nyc Abort Switch

    Releasing Applications Abort Switches B.3.3 NYC Abort Switch An NYC Abort Switch has a standard NYC delay timer that adds 90 seconds to the programmed Delay Time. NOTE: An NYC timer does not comply with UL Standard 864. When an alarm initiates in the programmed releasing zone, pressing and holding the abort switch stops the delay timer countdown.
  • Page 91 Abort Switches Releasing Applications expire at 150 seconds: however, this time exceeds the maximum of 120 seconds, so the releasing zone outputs will begin releasing at 120 seconds, not at 150. Following is a graphic example of an NYC Abort Switch and a delay timer programmed to a releasing zone. Program selections for this releasing zone Delay Time: 60 seconds Abort Switch: NYC...

  • Page 92: B.3.4: Ahj Abort Switch

    Releasing Applications Abort Switches B.3.4 AHJ Abort Switch An AHJ (Authority Having Jurisdiction) Abort Switch has a delay timer that restores the programmed Delay Time. NOTE: An AHJ timer does not comply with UL Standard 864. When an alarm initiates in the programmed releasing zone, the programmed Delay Time starts. Pressing and holding the abort switch suspends the delay timer.

  • Page 93: B.3.5: Cross Zones

    Abort Switches Releasing Applications B.3.5 Cross Zones Purpose of Cross Zones Programming the Cross Zone releasing function can set the control panel to activate a releasing zone and any output mapped to that releasing zone only after a predetermined sequence of events occurs.

  • Page 94: B.3.6: Using Type Codes For Releasing Zones

    Releasing Applications Abort Switches Each Cross Zone option and the conditions required to activate releasing zone ZR01 are shown in the table below, according to the example in Figure B.8. Cross Zone Condition(s) Required to Activate the Releasing zone Selection (Cross=) Cross=No An alarm from any initiating device activates the releasing zone.
  • Page 95 Abort Switches Releasing Applications How to Program an Abort Switch The following contains information needed to program an Abort Switch for a monitor module. Description A monitor module, connected to a UL-listed abort station (such as the Notifier NBG-12LRA), used to monitor an abort switch for a releasing zone. Multiple monitor modules can be programmed with the Type Code.
  • Page 96 Releasing Applications Abort Switches How to Program a Manual Release Switch The following contains information needed to program a Manual Release switch for a monitor module Description A monitor module—connected to a UL-listed manual station (such as the Notifier NBG-12LRA)—used to monitor a pull station for the manual release of agents. A Manual Release switch overrides all timers, such as Delay Time or a Soak Time.
  • Page 97 Abort Switches Releasing Applications How to Program a Manual Release Delay Switch The following contains information needed to program a Manual Release Delay switch for a monitor module. Description A monitor module—connected to a UL-listed manual station (such as the Notifier NBG-12LRA)—used to initiate a manual release with 10-second delay time.
  • Page 98 Releasing Applications Abort Switches How to Program a Second Shot Switch NOTE: The Second Shot switch can only be used with the MAN REL DELAY Type Code. The following contains information needed to program a Second Shot switch for a monitor module Description A monitor module—connected to a UL-listed manual station (such as the NBG-12LRA)—used as for a second release of agents.
  • Page 99 Abort Switches Releasing Applications How to Program a Release End Bell Circuit NOTE: A releasing circuit with this Type Code requires the following selections: a Releasing Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test. The following contains information needed to program a Release End Bell circuit for an SLC output module Description An SLC output module to activate an audible or visual device when releasing...
  • Page 100 Releasing Applications Abort Switches How to Program a ULC Release Circuit NOTE: A ULC Release Circuit with this Type Code requires the following selections: a Releasing Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit ; Non-Silenceable; No Walk Test.
  • Page 101 Abort Switches Releasing Applications How to Program a Release Circuit NOTE: A Release Circuit with this Type Code requires the following selections: a Releasing Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test. NOTE: Do not use a Release Circuit for the following: An application requiring ULC Listing;...
  • Page 102 Releasing Applications Abort Switches How to Program a Release Form-C Circuit NOTE: An output with a Type Code requires the following selections: a Releasing FORM C Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit; Non-Silenceable; No Walk Test.
  • Page 103 Abort Switches Releasing Applications How to Program a Release Audible Circuit NOTE: An output with a Type Code requires the following selections: a Releasing REL AUDIBLE Zone; an output circuit mapped to the same Releasing Zone; Switch Inhibit. The following contains information needed to program a Release Audible circuit for an SLC output module Description An output module programmed to activate an audio or visual device when all releasing outputs, programmed to the same Releasing Zone, turn on.
  • Page 104 Releasing Applications Abort Switches How to Program an Instant Release Circuit NOTE: An output with an Type Code requires the following selections: a zone INST RELEASE selection (a releasing zone may be used, but is not required); an output circuit mapped to the same zone;...

  • Page 105: B.4: Miscellaneous

    Miscellaneous Releasing Applications The outputs are each set to a code appropriate for one of the three releasing phases: for example, one code for the first alarm, a faster code when the Delay Timer activates, and a continuous tone during releasing. Program Program releasing zone ZR1 as follows: ZR1 = Delay Time:15, Abort Switch:ULI, Cross Zone:YES, Soak Time:120 Map ZR1 to all inputs and outputs shown in this example.

  • Page 106: B.4.2: Warning Sounders

    Releasing Applications Miscellaneous Multiple zone initiating devices can be used for the same releasing hazard. Map zone initiating devices to the same Releasing Zone. Factory Mutual and certain Local Authorities Having Jurisdiction require using redundant wiring (NFPA 72 Style 6 or Style D) for initiating devices in releasing applications.

  • Page 107: Appendix C: Special Zone Outputs

    Appendix C: Special Zone Outputs C.1 Presignal and Positive Alarm Sequence (PAS) C.1.1 What is Presignal and PAS? Purpose Presignal is a feature that initially causes alarm signals to only sound in specific areas, monitored by qualified persons. This allows delay of the alarm up to 180 seconds after the start of alarm processing.
  • Page 108 Special Zone Outputs Presignal and Positive Alarm Sequence (PAS) • TM-4 polarity reversal alarm output • TM-4 municipal box output • UDACT Positive Alarm Sequence (PAS) Outputs selected for PAS delay for 15 seconds. Acknowledgement within the 15-second delay will set the Presignal Delay Timer to the full programmed value (60-180 seconds, including the PAS delay of 15 seconds).

  • Page 109: Appendix D: Intelligent Sensing Applications

    Appendix D: Intelligent Sensing Applications D.1 Intelligent Sensing Overview Intelligent Sensing is a set of software algorithms that provide the NFS2-3030 with industry- leading smoke detection capability. The user can program Intelligent Sensing functions on a global or on a per-detector basis. Intelligent Sensing topics covered in this appendix: Topic Page...

  • Page 110: D.2.2: Maintenance Warnings - Three Levels

    Intelligent Sensing Applications Intelligent Sensing Features A graphic representation of a detector analog reading using drift compensation and smoothing: Alarm Level without compensation with compensation and Analog smoothing Reading Time Figure D.1 Graphic Representation of Drift Compensation D.2.2 Maintenance Warnings – Three Levels The software determines when the drift compensation for a detector reaches an unacceptable level that can compromise detector performance.

  • Page 111: D.2.3: Self-Optimizing Pre-Alarm

    Intelligent Sensing Features Intelligent Sensing Applications D.2.3 Self-Optimizing Pre-Alarm You can set each detector, except FST-851/751 (Heat), for Self-Optimizing Pre-Alarm (PA=1). In this Self-Optimizing mode, the software measures the normal peak analog readings and sets the Pre-Alarm level just above these normal peaks. This allows extremely sensitive Pre-Alarm capability with reasonable protection against non-fire signals.

  • Page 112: D.2.5: Cooperative Multi-Detector Sensing

    Intelligent Sensing Applications Pre-Alarm D.2.5 Cooperative Multi-Detector Sensing Cooperative Multi-Detector Sensing is the ability of a smoke detector to consider readings from nearby detectors in making alarm or pre-alarm decisions. Each detector can include up to two other detectors in its decision. Without statistical sacrifice in the ability to resist false alarms, Cooperative Multi-Detector Sensing allows a detector to increase its sensitivity to actual smoke by a factor of almost 2 to 1.

  • Page 113: D.3.3: Action Level

    Detector Sensitivity Settings Intelligent Sensing Applications • The Pre-Alarm indication for this detector will restore automatically to normal if its sensitivity, programmable to one of nine settings, drops below pre-alarm level. • A subsequent alarm for this detector also clears the Pre-Alarm indication. D.3.3 Action Level Action Functions If you program a detector for Action Pre-Alarm and the detector reaches a level that exceeds the...

  • Page 114: D.4.2: To Test Detectors Set Below 0.50% Obscuration Per Foot

    Intelligent Sensing Applications Detector Sensitivity Settings Detector Type Alarm (FlashScan) Pre-Alarm AL:1=0.50 % PA:1=Auto SMOKE (ION) AL:2=0.75 % PA:2=0.40 % † (See notes * , ** , and AL:3=1.00 % PA:3=0.50 % AL:4=1.25 % PA:4=0.75 % AL:5=1.50 % PA:5=1.00 % AL:6=1.75 % PA:6=1.25 % AL:7=2.00 %...

  • Page 115: D.5: Detector Status Display

    Detector Status Display Intelligent Sensing Applications Set the detector as follows: Step Action Initially set to the 0.50% obscuration per foot Alarm level. Set the Pre-Alarm level to the desired final Alarm sensitivity. Set the Pre-Alarm to Alert mode (non-latching). Operate detectors continuously for 90 days with all environmental factors (such as, temperature, humidity, air flow, occupancy, and so on) similar to the intended application for the detectors.

  • Page 116: D.5.3: To Interpret A Detector Status Display Or Maintenance Report

    Intelligent Sensing Applications Detector Status Display To print this report, press the Printer Function soft key at the Main Menu, then press the Detector Maintenance Report soft key sends a Detector Maintenance Report (Figure D.7) to the printer connected to the control panel. ******DETECTOR MAINTENANCE****************************************************** NORMAL SMOKE(LASER) Detector L01D001 000330us 000340us...
  • Page 117 Detector Status Display Intelligent Sensing Applications TROUBLE The point is in a trouble state and is no longer functioning automatically. The second field displays the point status. There are two designations that could appear in this field. Point Status Description Designation INACTIVE The point is currently reporting no events.
  • Page 118 Intelligent Sensing Applications Detector Status Display Line 12 The screen displays the Alarm and Prealarm levels that are in effect when read status is requested. For example, if unoccupied settings are in effect, they will display. ALARM: 6=1.66% - Six is the preprogrammed alarm level value for this detector: its value is 1.66%, indicating the percent per foot obscuration value assigned to level 6.

  • Page 119: Appendix E: Cbe: Zones And Equations

    Appendix E: CBE: Zones and Equations CBE (Control-By-Event) is a software function that provides a means to program a variety of output responses based on various initiating events. The control panel operates CBE through lists of zones. A zone becomes listed when it is added to a point’s zone map through point programming. •...

  • Page 120: E.2: Equations

    CBE: Zones and Equations Equations E.2 Equations Logic and Trouble Equations can define complex relationships between input and output devices. The FACP supports up to 1000 Logic Equations, each designated with a Logic Zone number of ZL1 through ZL1000. It also supports up to 100 Trouble Zones, each designated with a Trouble Zone number of ZT001 through ZT100.
  • Page 121 Equations CBE: Zones and Equations Example: OR(Z02,Z05,L2D12) If any one of the three arguments in the equation is active the logic zone will be activated. • The “NOT” Operator Inverts the state of the argument (activated to deactivated OR deactivated to activated). Example: NOT(Z02) The logic zone will remain activated until the argument activates.
  • Page 122 CBE: Zones and Equations Equations • If duration time of zero is entered (00.00.00), the equation will evaluate true when the delay time expires if the argument remains active throughout the delay time period. • If no duration or delay is specified, then the function will follow the input argument, indicating true while it is active and false when it is inactive.

  • Page 123: E.2.3: Trouble Equations

    Equations CBE: Zones and Equations OR(AND(L1D1,L1D4),AND(L2D6,L2M3,NOT(L2M4)),ANYX(2,L1M13,L1M14,L1M15)) These These have Any TWO of have to be to be ON … and this OFF these have to be for this part to be TRUE for this part to be TRUE for this part to be TRUE When this is TRUE When this is TRUE When this is TRUE...
  • Page 124 Notes NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 125: Appendix F: Detector Initialization

    Appendix F: Detector Initialization F.1 Overview The control panel automatically performs a detector initialization routine when a detector is added or changed. The detector initialization routine takes approximately 2.5 minutes. During this time, the detector being initialized does not perform fire protection functions. The LEDs of detectors polled in FlashScan mode will latch a steady green while initializing, and return to blinking green when initialization is over.
  • Page 126 Detector Initialization To Replace a Detector with a Different Type of Detector NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 127: Appendix G: Type Codes

    Appendix G: Type Codes G.1 What Are Type Codes? Type Codes are software selections for initiating devices (detectors and monitor modules) and output devices (control modules and NACs). Some Type Codes are self-explanatory; that is, the Type Code matches the function of the device, such as a “Monitor” for a monitor module, “Smoke(photo)”...

  • Page 128: G.3.3: Type Codes For Monitor Modules

    Type Codes Type Codes for Input Devices Point Characteristics Latching Activates Device/Point Function Point Type (Y=yes Type Code N=no) fire Duct Photoelectric smoke detector SMOKE(DUCTP) supervisory Photoelectric smoke detector used as a duct detector to report SUP L(DUCTP) supervisory condition rather than alarm supervisory Photoelectric smoke detector used as a duct detector to report SUP T(DUCTP)†...

  • Page 129: G.4: Type Codes For Output Devices

    Type Codes for Output Devices Type Codes Point Characteristics Latching Activates Type Code Point Type (Y=yes Device Function N=no) EQUIP MONITR non-alarm Used for monitoring equipment security SECURITY L security Indicates activation of security alarm LATCH SUPERV supervisory Indicates latching supervisory condition NC SUP L supervisory Indicates latching supervisory conditon, where an open...

  • Page 130: G.5: Flashscan Codes

    Type Codes FlashScan Codes HORN CIRCUIT fire Supervised NAC AUDIBLE CKT fire Supervised NAC SPEAKER fire Supervised NAC for speaker circuits blank Supervised NAC for undefined device NONRESET CTL Relay or NAC Supervised output, unaffected by “System Reset” command TELEPHONE Relay fire Supervised Telephone circuit...
  • Page 131 FlashScan Codes Type Codes Label Device/Point LASER FSL-751 PHOTO/HEAT FSP-751T, FSP-851T ACCLIMATE FAPT-751, FAPT-851 HIGH HEAT FST-851H MONITOR FMM-1 MINI/DUAL FMM-101,FDM-1 MONITOR MANUAL STATION FSM-101 (NBG-12LX Series) ZONE MONITOR FZM-1 CONTROL FCM-1 RELAY FRM-1 TELEPHONE FTM-1 XPIQ BATTERY XPIQ BAT MON XPIQ GND FLT XPIQ EF MON XPIQ AC...
  • Page 132 Type Codes FlashScan Codes NFS2-3030 Programming Manual — P/N 52545:A 11/29/2005...

  • Page 133: Appendix H: System Troubles

    Appendix H: System Troubles Table H.1 is a list of System Troubles that could occur during the course of FACP operation. The System Trouble Name column is the text that displays in the system trouble message. The System Trouble Index is the number associated with the trouble in FACP memory. It is the number that can be used as an argument in a Trouble Equation.
  • Page 134 System Troubles System System System System Trouble System Trouble Name Trouble System Trouble Name Trouble System Trouble Name Trouble System Trouble Name Index Index Index Index REMOTE DISPLAY 31 RESERVED RESERVED GROUND FAULT PORT A TROUBLE REMOTE DISPLAY 31 NO RESERVED RESERVED GROUND FAULT PORT B...
  • Page 135 System Troubles SYSTEM TROUBLES TROUBLE MESSAGE TYPE TROUBLE DESCRIPTION DAP PORT x FAILURE Digital Audio Port x (A or B) is not communicating due to a break in the connection, a short, or faulty hardware. Locate and fix the break or short. If the problem is not a short or break, call Technical Services.
  • Page 136 System Troubles SYSTEM TROUBLES TROUBLE MESSAGE TYPE TROUBLE DESCRIPTION STYLE 6 NEG. LOOP x There is a short circuit on the negative side of loop x. Style 6 and Style 7 are supervised methods of communicating with addressable devices. If the control panel detects a trouble (open or short), it will drive both ends of the loop, maintaining communication in an unsupervised method.

  • Page 137: Appendix I: Local Settings

    Appendix I: Local Settings The panel programming LOCAL SETTING choices, available through the Panel Settings (2) screen (refer to page 23) are described below. The Local Settings screen (Refer to Figure I.1) allows scrolling through the available choices by pressing the soft key. Choices are Chicago, Singapore, or Default (no special local settings).

  • Page 138: I.2: Chicago

    Local Settings Chicago I.2 Chicago The LOCAL SETTING choice of CHICAGO disallows local drill or signal silence. • The DRILL and SIGNAL SILENCE keys at the panel will not function. • Annunciator Control Modules and SLC modules given a drill or signal silence Mode or Type Code will not allow local drill or signal silence initiation.

  • Page 139: Glossary

    Glossary 0.1 Glossary This section contains descriptions of terms essential to Drift Compensation An algorithm which permits the know when programming the control panel. maintenance of a constant smoke detector sensitivity by accounting for environmental contaminants and other Alarm History See History buffer. factors.
  • Page 140 Glossary Point A system memory address occupied by an Type Code specifies what action the control panel takes addressable SLC device, Software Zone, or annunciator. when the point activates. For example, when a monitor For example, the control panel considers “L01M102”, a module with evacuate as a Type Code activates, the module on loop 1 at address 102, as a point.

  • Page 141: Index

    Index Occupied & Unoccupied Alarm & Prealarm Sensitivity Abort Switch Point Select Disable/Enable Basic configuration example Point selection for disable/enable Configuration example with monitor module Program Time/Date Walk Test Advanced To program Audible Type Code (ULI, IRI, NYC, AHJ) 50, 85 Disable ACS Boards Panel test screen AC Fail Delay...
  • Page 142 D–H Index Control Module Weekly Occupancy Schedule See Module, SLC Zone map Control On/Off Disable/Enable Point Selection Cooperative Multi-Detector Sensing 43, 112 Displayless Mode CPU2-3030 Service-level switches, ACK, SIG-SIL, SYSRST, Cross Zone LAMP Programming example Do not assign Releasing Type Codes to Panel To activate a Releasing Zone Download Types...
  • Page 143 Index I–N Holiday menu Module poll Rapid poll Wiring style Initial programming Basic procedure Initiating Devices for releasing zones Main Menu 12, 17 Insert (Logic equation screen) Main Power Supply Address Instant Release Circuit Maintenance Warnings Control module configuration example Major changes and additions To program Basic procedure...
  • Page 144 O–P Index NFPA Standards for Releasing Applications Timers NFS2-3030 Trouble reminder Displayless Mode Verify-Prealarm Two basic configurations Weekly occupancy schedule Node label Panel sounder Node number Panel Timers For standalone panel PAS (Positive Alarm Sequence) Range Inhibit switch To view Setting Non-fire activations Password...
  • Page 145 Index R–T Control Monitor Scrolling See also Module Second Shot Switch Panel 20–39 Monitor module configuration example See also Panel settings To program Point 39–61 Self Test See also Point Program Self-Optimizing Pre-Alarm Presence of unacknowledged alarm Sensitivity, see Alarm Sensitivity Levels, Detector See also Point Program, Panel settings Service Screens Two levels...
  • Page 146 U–Z Index To select Sounder/relay bases, position nine General Zone Zone label Logic UDACT 25, 28 Add logic function UL Standard 864 88, 89, 90, 92 Add point ULC Release Circuit Add Time/Date Output module configuration example Delete equation To program Edit Equation ULC, auto silence value Enter time...
  • Page 147 Limited Warranty NOTIFIER® warrants products manufactured by it to be free from defects in materials and workmanship for eighteen (18) months from the date of manufacture, under normal use and service. Products are date stamped at time of manufacture. The sole and exclusive obligation of NOTIFIER®...
  • Page 148 World Headquarters NOTIFIER is a Honeywell company. 12 Clintonville Road Northford, CT 06472-1653 USA 203-484-7161 fax 203-484-7118 www.notifier.com...

Table of Contents
