Attaching the Cone
1.Orient the the Cone with the Inward pointing Bolt toward the bottom as shown.
2.Hang the Cone on the Cone Bolts as shown in Figure 6. Seams between Cone Panels should be oriented
Important!
toward corners of Shroud as shown.
3.Secure the Cone by attaching the Top (2) Cone Brackets to the Bolts in the Cone with additional 5/16-18
Nuts (46764) as shown.
Important! Bolt pointing inward
install toward bottom of Cone.
4.Use a piece of metal or Pry bar to work the Cone around the Shroud orifice and over the Bottom Plate.
5.Fasten the Bottom (2) Cone Brackets to the Cone with 5/16-18 Nuts (46764).
(46764)
5/16-18 SS
Ser. Flange Nut
MV2477C
Shroud Bolts

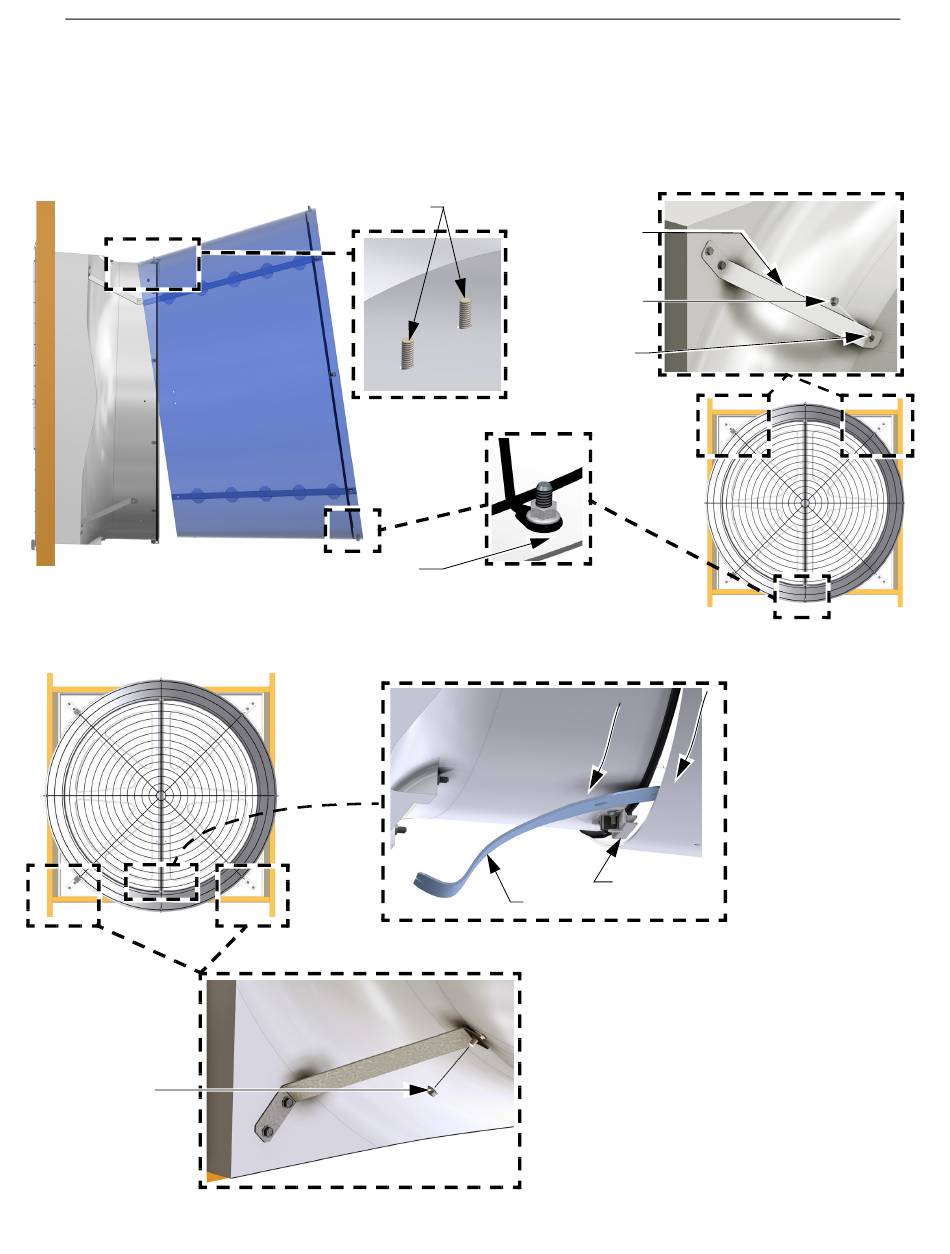

Figure 6.Hanging Cone on Shroud Bolts
Figure 7.Fasten Cone to Cone Brackets
Cone Bracket
(46764)
5/16-18 SS
Ser. Flange Nut
Shroud Bolt
Bottom Plate
Pry Bar
Installation
9
