Chore-Time 52 TURBO Installation & Operator's Instruction Manual page 17

Itemized Part Numbers
52" TURBO
Item Part Description
1 Motor, 1.5H, 1.67SF 3PH-60HZ, 230/460V,
1.3SF 3PH-50/60HZ, 200-230/380-480V
Motor, 1ph, 1.5hp, 60-230V
Motor, 1ph, 1.5hp, 60-2230V
2 Sheave, 3" Motor (AK30)
Pulley, 3.45" Driven (AK34)
3 Sheave, 9.25" Driven (AFD94100)
Sheave, 8.25" Driven (AFD84100)
Sheave, 7.75" Driven (AK79)
4 V-Belt (AX59)
V-Belt (AX60)
V-Belt (AX58)
5* Shroud, 52" (White Interior)
Shroud, 52" (Black Interior)
6 Blade, Cast Aluminum w/ Bushing
7 Motor Support
8 Bearing, 1" Pillow Block
9 Shaft, 1" dia. x 15.75" SS
10 Bearing Support
11 Fan Post
12 ® ®
Screen, 52" HYFLO TURBO Fan
Door Assembly (White)
13
Door Assembly (Black)
14 Tensioner Assembly
Tensioner Support
15
16 Magnet Stop Bracket
17 Fan Post Brace
18 Grill
19 Spring, .055 x .50 O.D. x 11"
20 Cone Panel (White) (4 required)
Cone Panel (Black) (4 required)
32
47
Fan Part No.
48
® ®
Fan with HYFLO Door 56258-XX (Sub Assembly) See page 1 for ordered Fan Part Number
Part No. Models-XX
56102 -42,-42B,-42BW,-41,-41S,-41B,-41BW,-41BS,-51,-51B,-51BW
56708 -21,-21B,-21BW
56850 -22,-22B,-22BW
8773 -22,-22B,-22BW,-21,-21B,-21BW,-41,-42B,-42BW,-41,-41S,-41B,-
41BW,-41BS
37919 -51,-51B,-51BW
54898 01,-01B,-21,-21B,-21BW,-41,-41S,-41B,-41BW,-41BS
54897 -02,-02B,-22,-22B,-22BW,-42,-42B,-42BW
41989 -51,-51B,-51BW
48615 -01,-01B,-21,-21B,-21BW,-41,-41S,-41B,-41BW,-41BS
48541 -02,-02B,-22,-22B,-22BW,-42,-42B,-42BW
46676 51,-51B,-51BW
55204-1 -01,-02,-22,-21,-42,-41,-41S,-51
55204-1B -01B,-02B,-22B,-22BW,-21B,-21BW,-42B,-42BW,-41B,-41BW,-
41BW,-51B,-51BW
49731 All
49734 All
50553 All
49822 All
49735 All
49733 All
50049 All
49767 -01,-02,-22,-21,-42,-41,-41S,-51
49767B -01B,-02B,-22B,-22BW,-21B,-21BW,-42B,-42BW,-41B,-41BW,-
41BW,-51B,-51BW
48429 All
49737 All
49738 All
56240 All
56230 All
49629 All
53184 -01,-02,-22-,22BW,-21,-21BW,-42,-42BW,-41,-41S,-41BW,-51,-
51BW
53184B -01B,-02B,-22B,-21B,-42B,-41B,-41BS,-51B
34
33

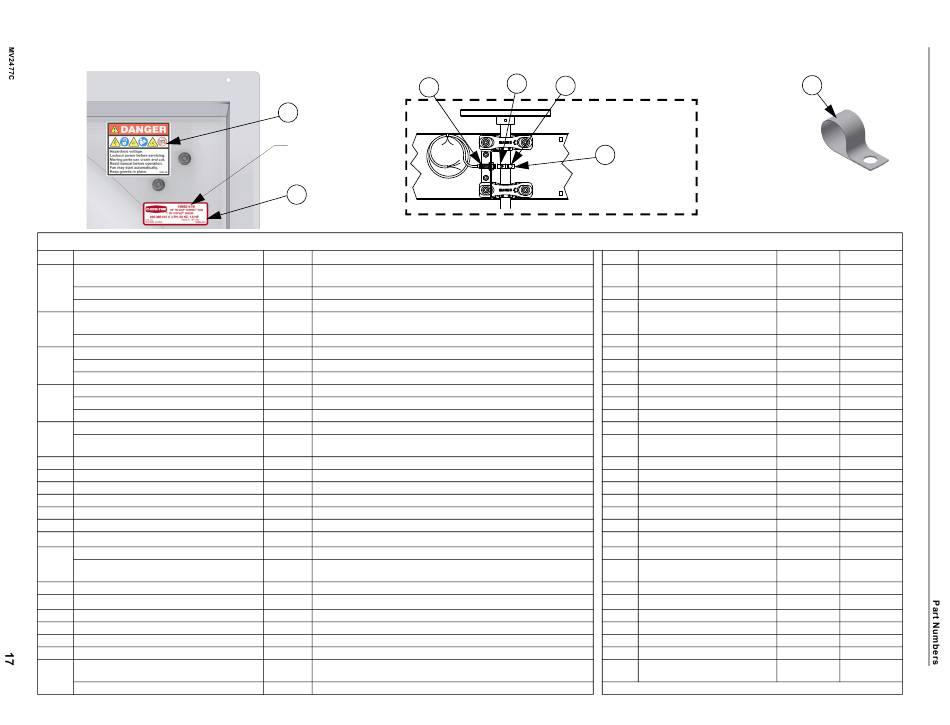

RPM Sensor Detail
35
Item Part Description
21 Cable Assembly
22 Pivot Bracket
23 Pivot Support
24 Door Spring Support
25 Clip, 2.00 x .7 SS
26 Lag Screw 1/4-10 x 1.5"
27 Nylon Washer
28 Screen Retainer
29 Bolt, 1/4-20 x 1.5 HH
30 52" Post Support
31 Cone Bracket
32 RPM Sensor Cord Assembly
33 Nylon 1/4-28 x .50 Sensor Bolt
34 Steel Sensor Collar Half
35 Nylon Sensor Collar Half
36 Idler with Bushings (For Repair)
37 1/8" Pop Rivet
38 .125 x .50 Magnet
39 3/16" x 3/8" Pop Rivet
40 .192 x .55 Washer
41 5/16-18 x 1 SS Shoulder Bolt
42 5/16-18 SS Ser. Flange Nut
43 1/4 x 1-1/8 Square Key
44 Nylon Cable Clip
45 3/8 Flat Washer
46 1/4-20 HX Serrated Flg. Nut
47 Fan Danger Decal
48 Fan Description Decal
44
Part No. Models-XX
50618-1 All
49750 All
49751 All
49799 All
36729 All
41561 All
4856 All
49908 All
4404-30 All
50122 All
53185 All
46111 -41BS,-41S
46134 -41BS,-41S
46135 -41BS,-41S
46136 -41BS,-41S
50879 All
50461 All
48427 All
49869 All
50231 All
54287 All
46764 All
2419-2 All
565 All
ST99070 All
46298 All
2529-90 All
39002-XXX All
*Includes items 16,39, and 40
