Wiring
Wiring
1. See Wiring diagram on Motor for Motor electrical connections. Follow local, state, and national electrical codes
for wiring
2. Install an electrical disconnect within reach of each Fan.
3. Route the motor cord (not supplied) toward the upper left corner of the Fan and attach the cord to the Motor Mount
using the Cable Tie—included in the hardware package. Leave a Drip Loop so that moisture collecting on the
Cord will not run down and damage the Motor (See Figure 13). Cut out a section of the Screen where you want
the Cord to exit the Fan, so that the Screen can be removed without the Cord getting in the way Figure 13). Use
the Nylon Cord Retainer and Lag Screw provided to secure the Cord to the Wall outside of the Fan. (Figure 13)
Use Nylon Tie to attach Cord to Post
Drip Loop
12

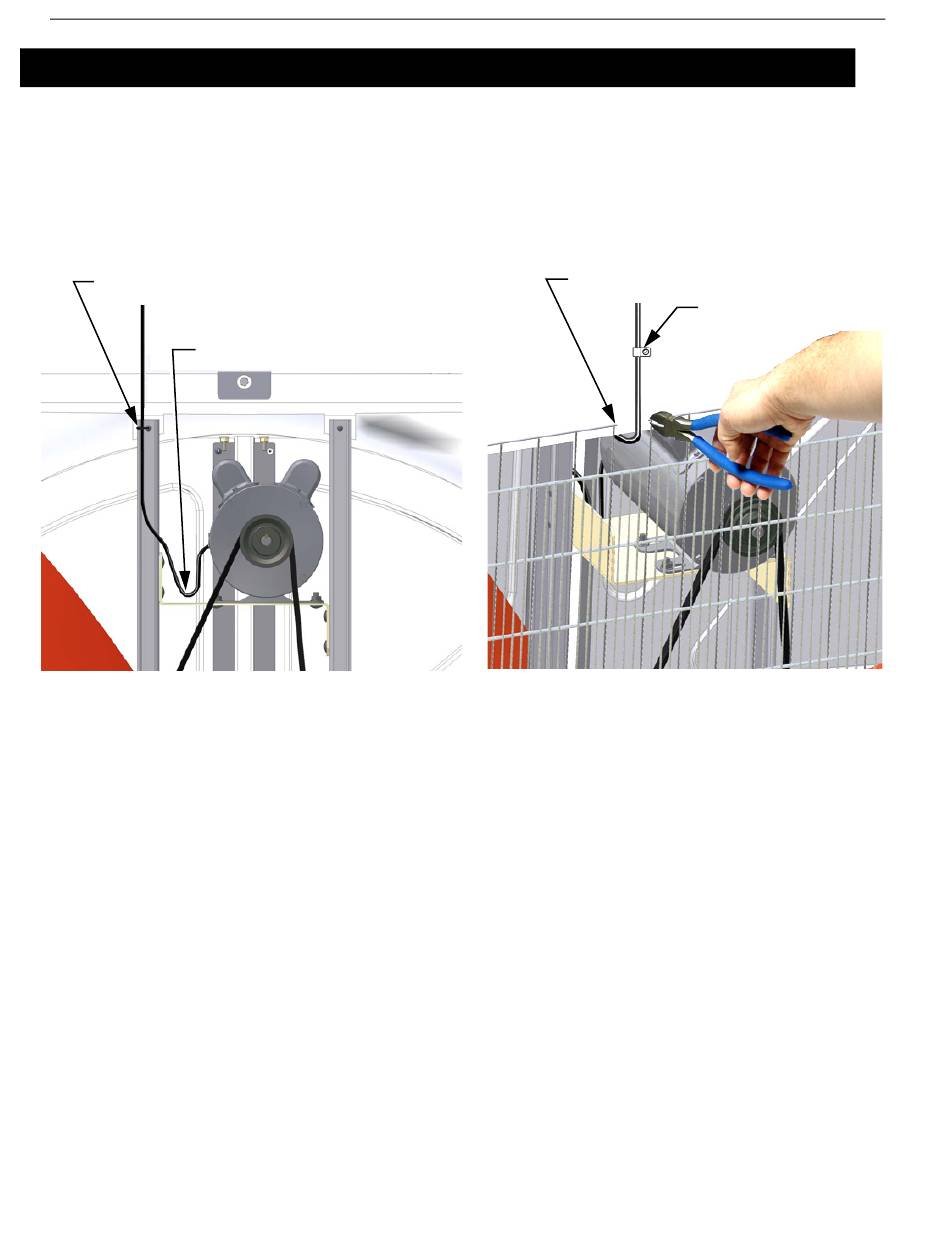

Figure 13. Wiring / Cord Routing
Cut Screen to allow Cord exit
Nylon Cord Retainer
and Lag Screw
